8-3. Slim duct type (setting by DIP switch)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch
SW100
1
Remote controller address setting
2
3
4
SW101
1 Drainage function setting
2 Auto louver grille setting
3 Fan delay setting

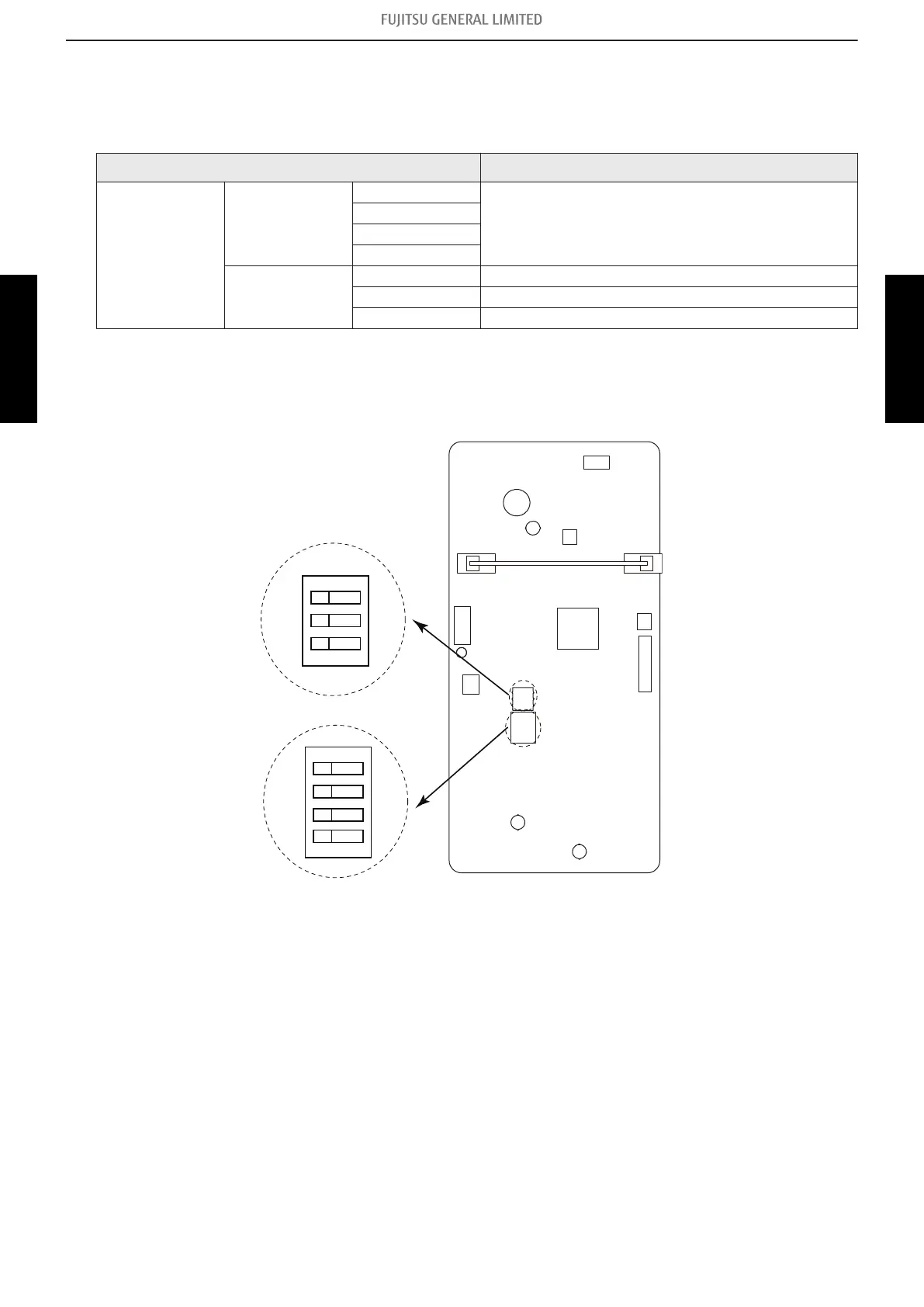

¢ Component location
Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
SW100
1
2
3
4
SW101
1
2
3
- 163 -
8-3. Slim duct type (setting by DIP switch) 8. Function settings
SYSTEM DESIGN SYSTEM DESIGN
