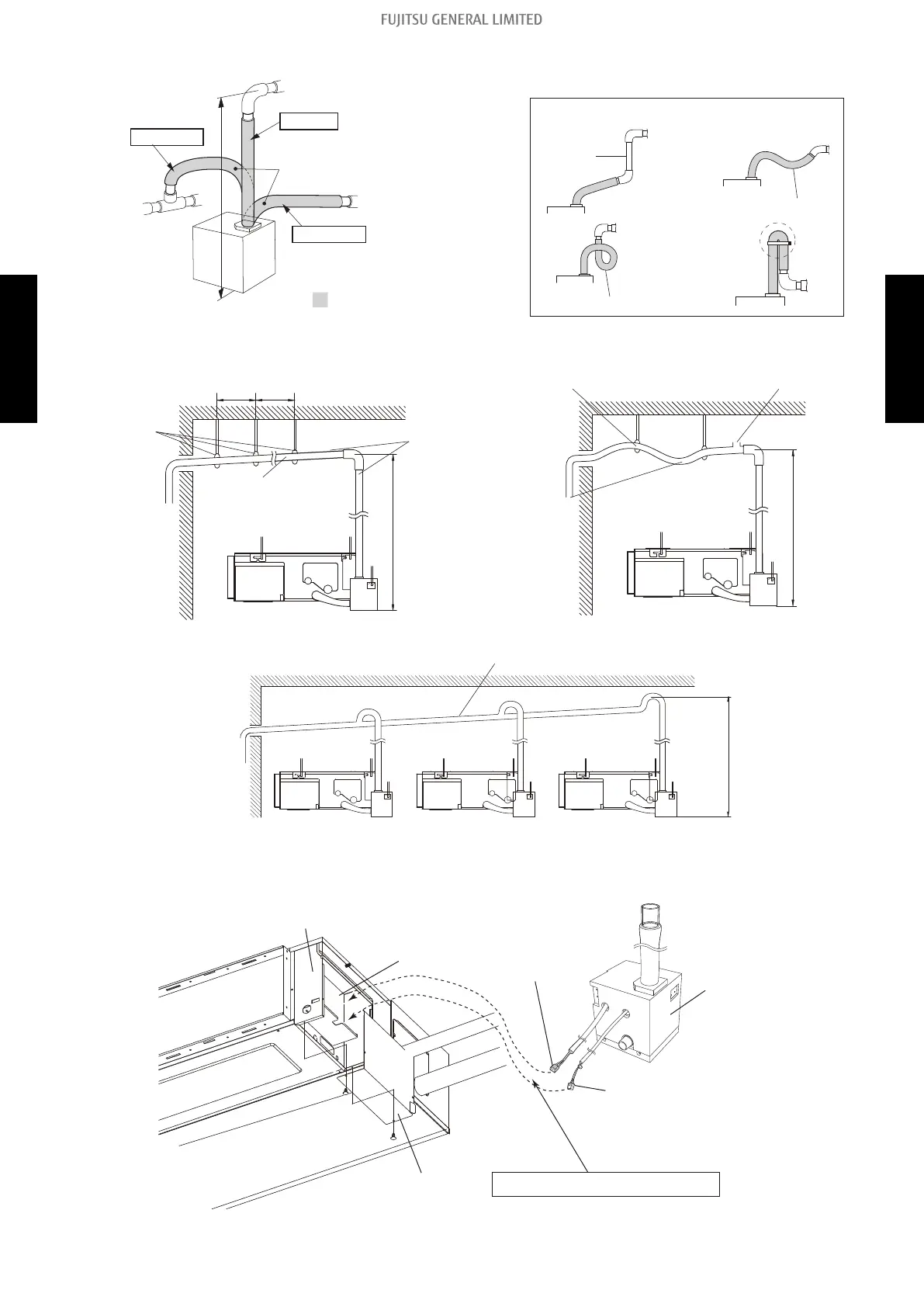

Installing hose
Max. 1m
Downward
Vertical
Horizontal
Bend radius is 60 mm or more
Downward gradient of 1/50 to 1/100
Part: Hose
Upward
Trap
Vertical loop
Example of wrong construction
¢
In
stalling pipe
Max.1 m
VP30 (O.D.38 mm) or more
Max.1 m
Gas of 1.5-2 m
Supporter
VP25
(O.D.32 mm)
or more
Locally
arrangerd pipe
Max.1 m
Rise
Air bleeding
Trap
Bad
For construct centralized drain pipe fittings, refer to the electrical wiring.
¢
El
ectrical wiring
Control box
Circuit board
Drain pump wire
(Connector: Blue)
Drain pump unit
Float switch wire
(Connector: Red)
Control box cover
Indoor unit
To indoor unit circuit board
- 200 -
10-1. Drain pump unit for duct type (UTZ-PX1NBA) 10. Optional parts installation
