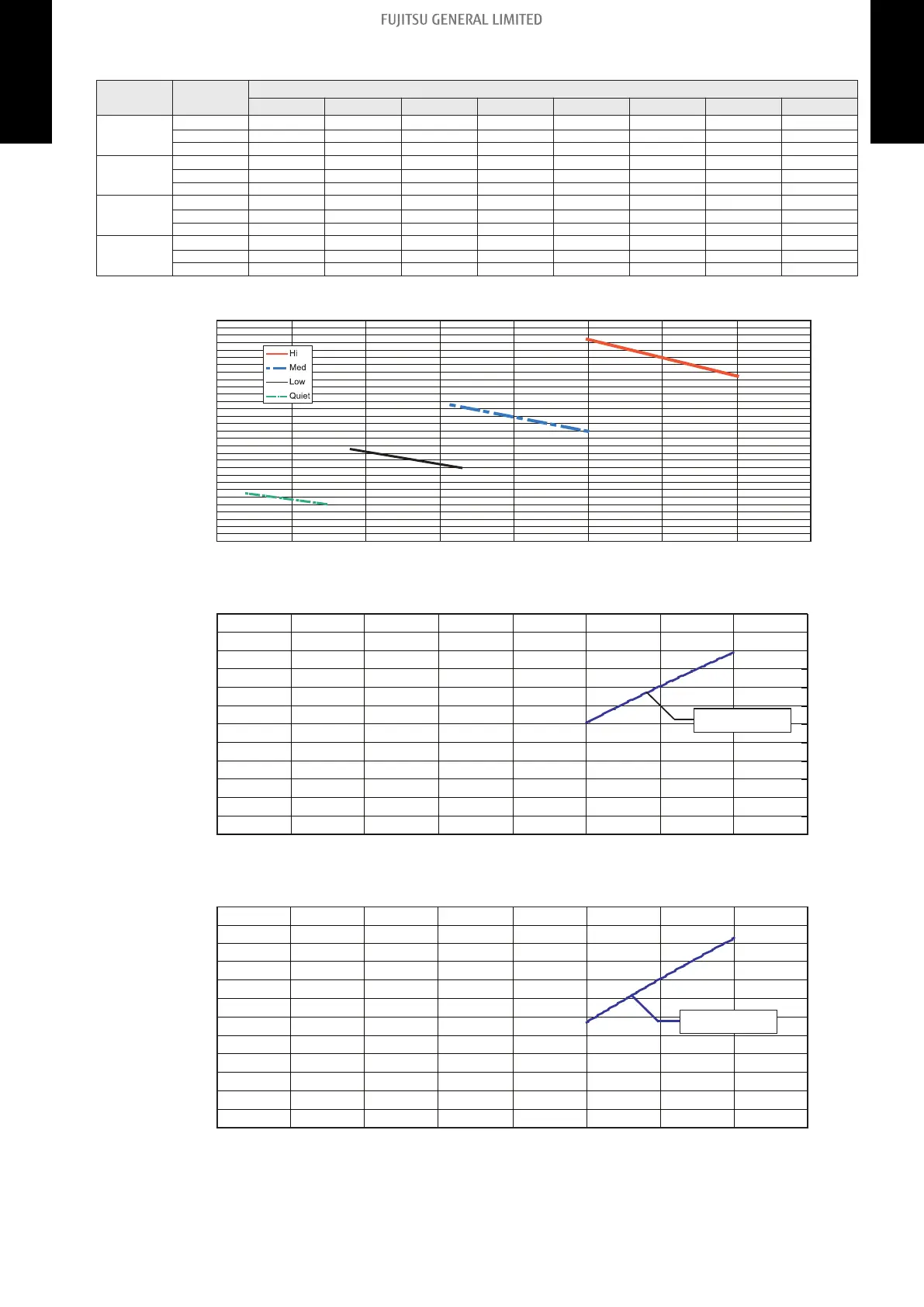

Fujitsu AOYG36KBTB User Manual

¢
Model: ARXG22KMLA (Static pressure mode 1)
Fan speed Item
Static pressure (Pa)
20 23 30 35 40 47 55 65
HIGH
m
3
/h
— — — — — — 1200 1000
l/s — — — — — — 333 278
CFM — — — — — — 706 589
MED
m
3
/h
— — — — 1000 815 — —
l/s — — — — 278 226 — —
CFM — — — — 589 480 — —
LOW
m
3
/h
— — 830 680 — — — —
l/s — — 231 189 — — — —
CFM — — 489 400 — — — —
QUIET
m
3
/h
650 540 — — — — — —
l/s 181 150 — — — — — —
CFM 383 318 — — — — — —
Q-h Characteristic curve
STATIC PRESSURE(Pa)
70
60
50
40
30
20
10
0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
COOLING
Cooling capacity(%)
104.0
102.0
100.0
98.0
96.0
94.0
92.0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
Capacity
HEATING
Heating capacity(%)
104.0
102.0
100.0
98.0
96.0
94.0
92.0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
Capacity
- 25 -
6-2. Duct type 6. Fan performance
