- 22 -
WALL MOUNTED ASYG30, 36LMTA
8. Operation noise (sound pressure)

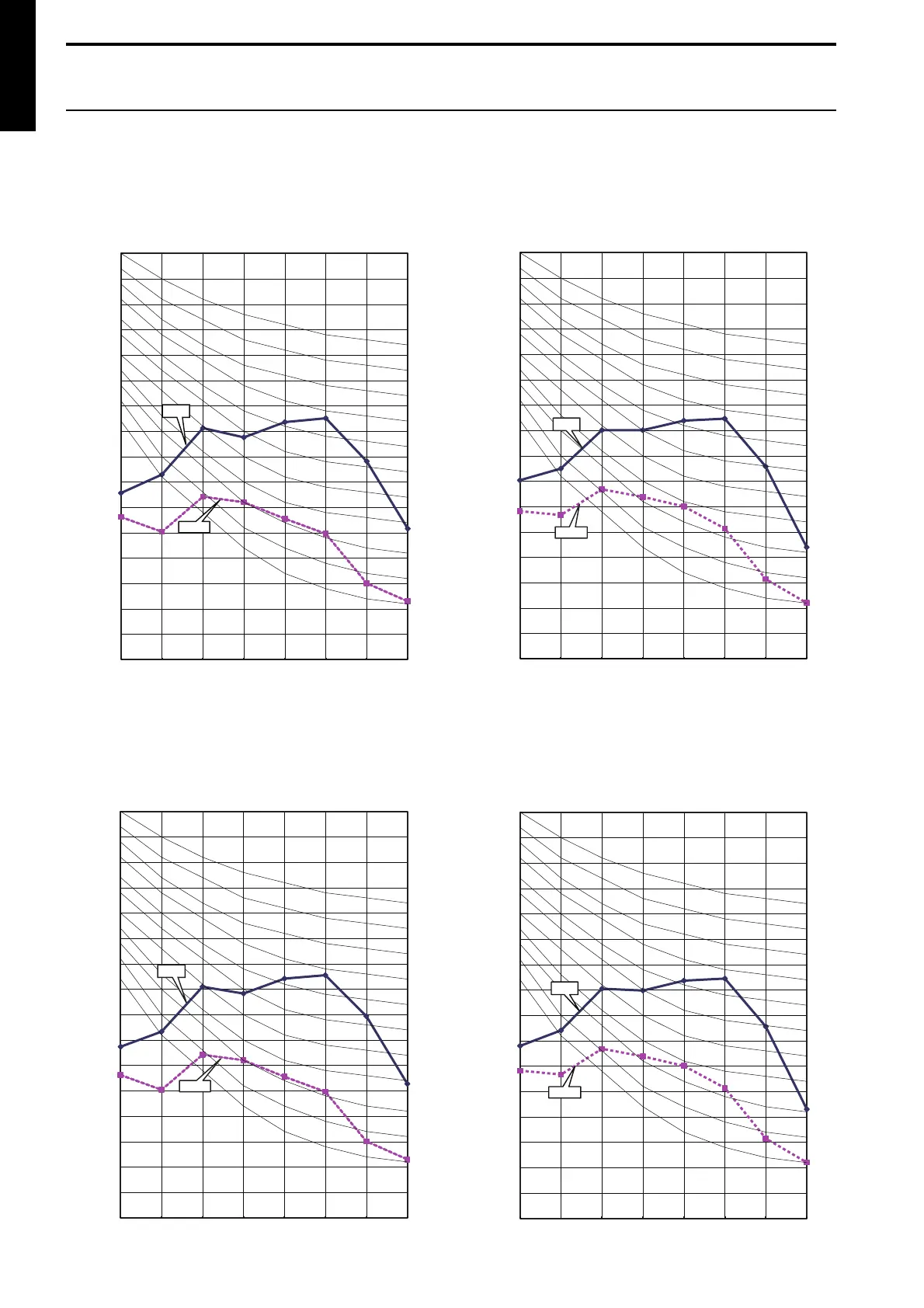

8-1. Noise level curve
 Model: ASYG30LMTA
 Cooling  Heating
 Model: ASYG36LMTA
 Cooling  Heating
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
65 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
㻴㼕㼓㼔
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
65 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
65 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 μbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
65 125 250 500 1,000 2,000 4,000 8,000
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
HIGH
QUIET
