Fujitsu AOYG45KATA Service Manual

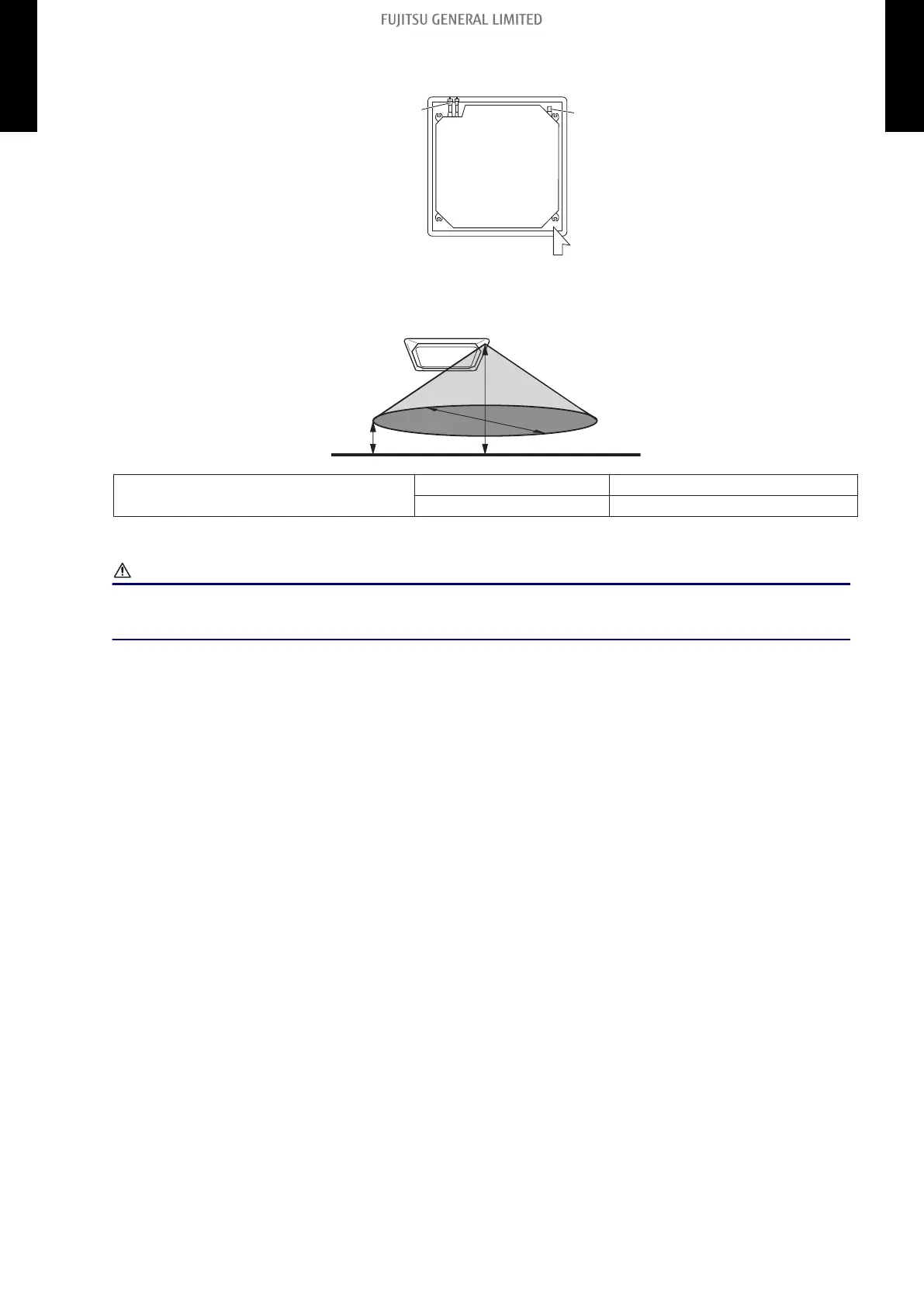

• Human sensor (Option)
Drain
pipe
Refrigerant
pipe
Human
sensor
Top view
Example of sensitivity range:
3,200
800
8,800
Unit: mm
Equal sensitivity range of temperature
Ceiling height 3,200 mm
Detecting position 800 mm from floor surface
NOTE: When the installation height gets higher, the temperature sensitivity decreases.
CAUTION
• Do not place large objects near the human sensor.
• Keep any other heating units outside the sensor’s detection area.
2-1. Indoor unit - (01-11) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Fujitsu AOYG45KATA Specifications

General

Brand	Fujitsu
Model	AOYG45KATA
Category	Air Conditioner
Language	English
