Fujitsu AOYG45LBTA Technical Manual

- 45 -
CASSETTE TYPE AUXG18-54LRLB

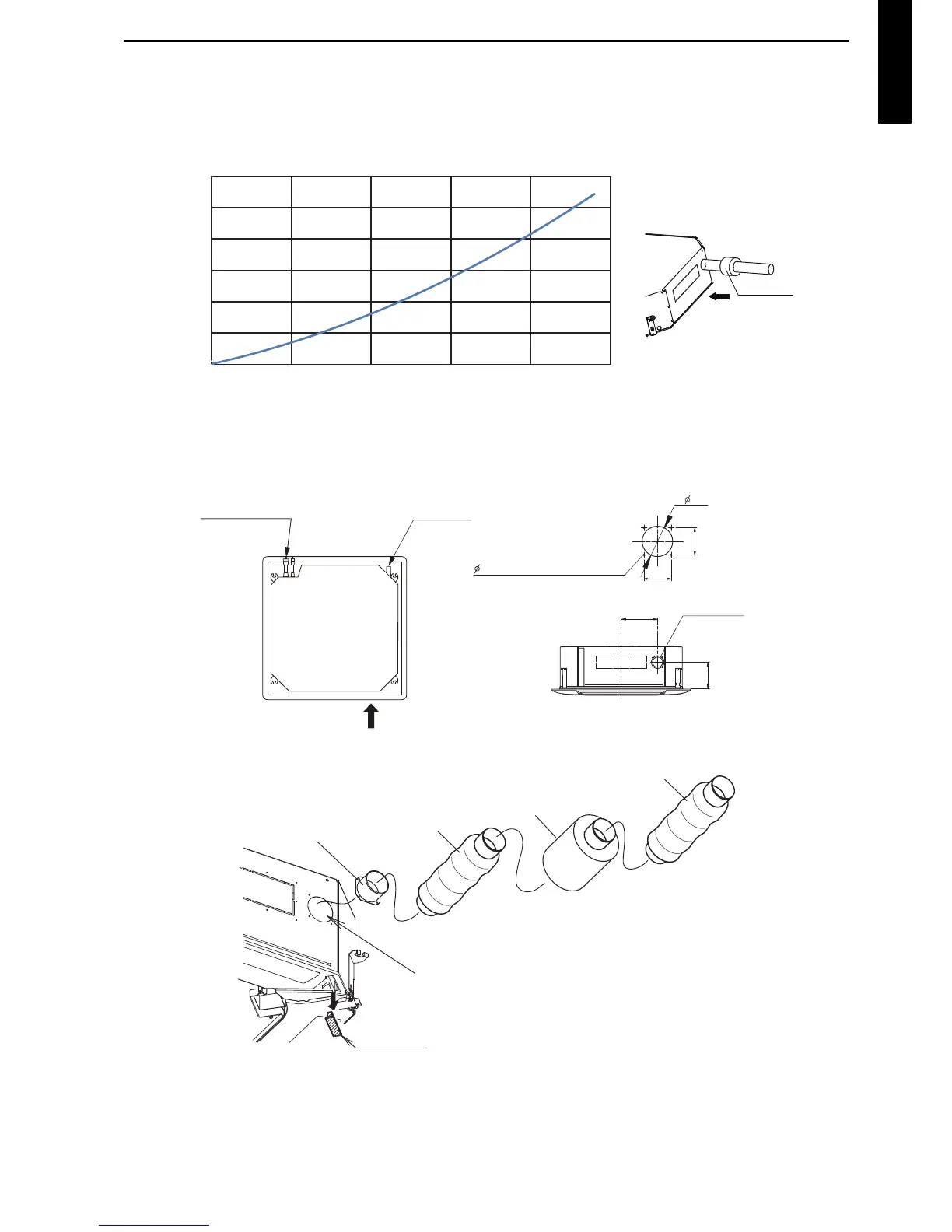

7-3. Fresh-air characteristics
 Airflow volume: static pressure of fresh-air intake characteris-
tics
 Installation
Airflow (m
3
/h)
0
20
40
60
80
100
120
0 1020304050
Duct static pressure (Pa)
Duct (inside
diameter: ø 95 mm)
Static pressure required
to take in fresh-air
Duct fan
280
185
2.5 screw hole (4 places)
95
81
81
Fresh-air inlet position
View (A)
Drain pipe
Refrigerant pipe
Top view
Fresh-air inlet position (A)
Cut-out hole
Unit: mm
Duct flange *2
Flexible duct *2
Fan *2
Flexible duct *2
Insulation *1
*1: In case of fresh-air intake, remove the insulation.
*2: Locally-purchased parts
Fresh-air inlet position
