Fujitsu AR*9LUAB

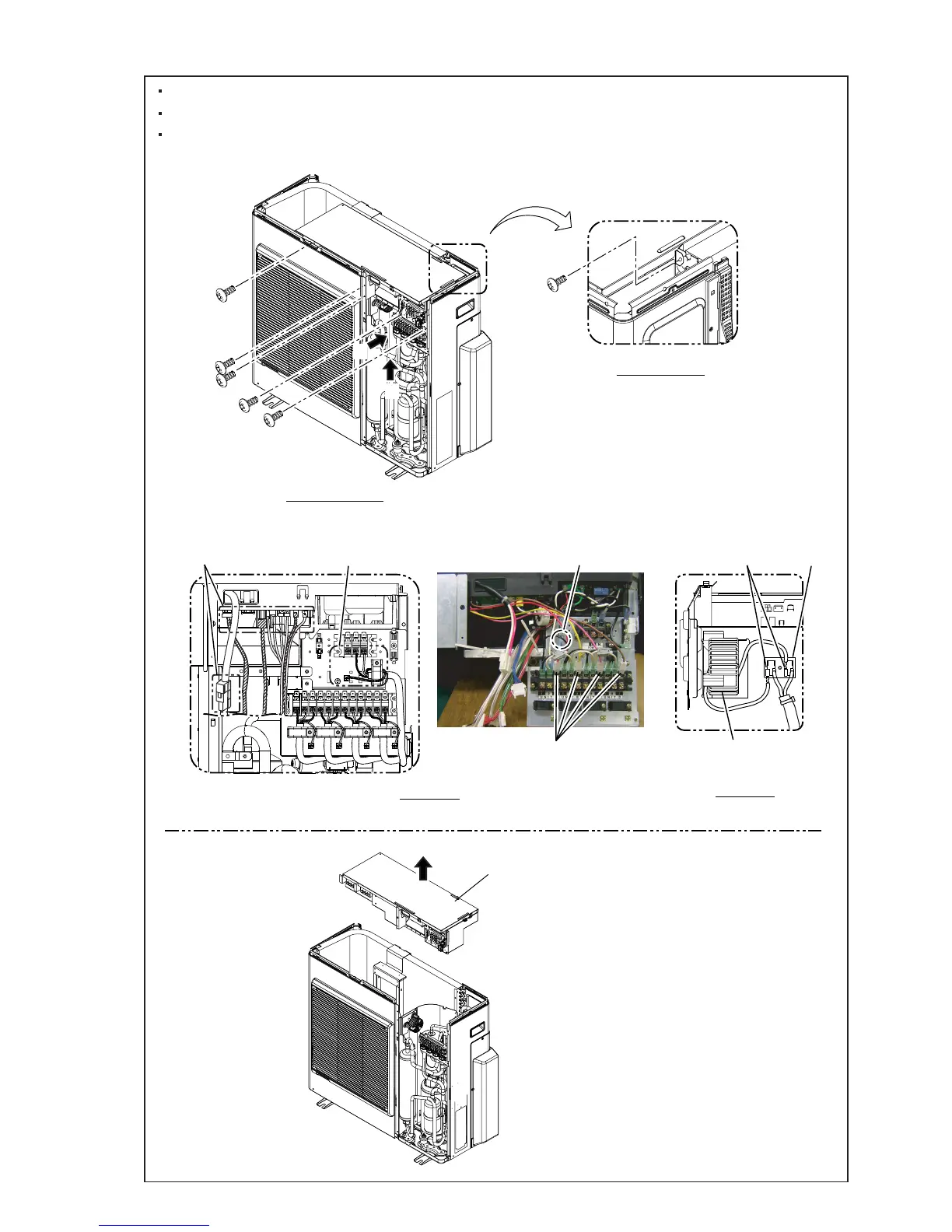

3. INVERTER BOX removal
Remove the 6 mounting screws.
Remove the connectors and cords. (Refer to VIEW -C,-D)
Remove the INVERTER BOX upward.
03-12
Remove
Connection cord.
Remove
Connection cord.
Remove
Connection cord.
Remove
the connectors
Remove
the connectors
VIEW - C
VIEW - D
Choke coil
Terminal
REAR VIEW
FRONT VIEW
INVERTER BOX
C
D
UNIT A UNIT C UNIT DUNIT B
