Fujitsu AR*9LUAB

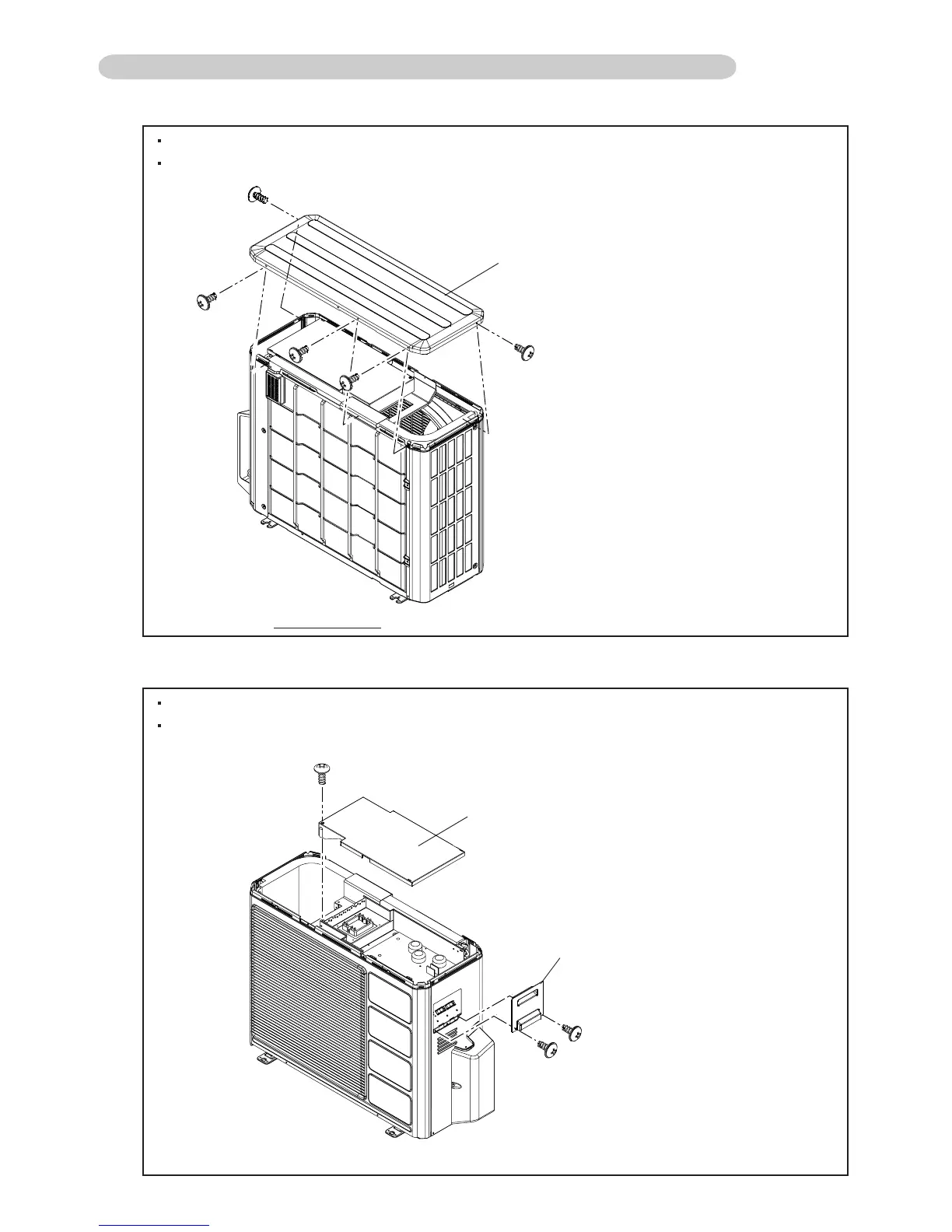

1. TOP PANEL removal
Remove the 5 mounting screws.
Remove the TOP PANEL upward.
2. CONTROL BOX COVER removal
Remove the 3 mounting screws.
Remove the CONTROL BOX COVER and TERMINAL COVER.
REAR VIEW
1-1-3 DISASSEMBLY PROCESS (For AO*18LMAK2/ 24LMAM2)
03-04
TOP PANEL
CONTROL BOX COVER
TERMINAL COVER
