Fujitsu AR*9LUAB

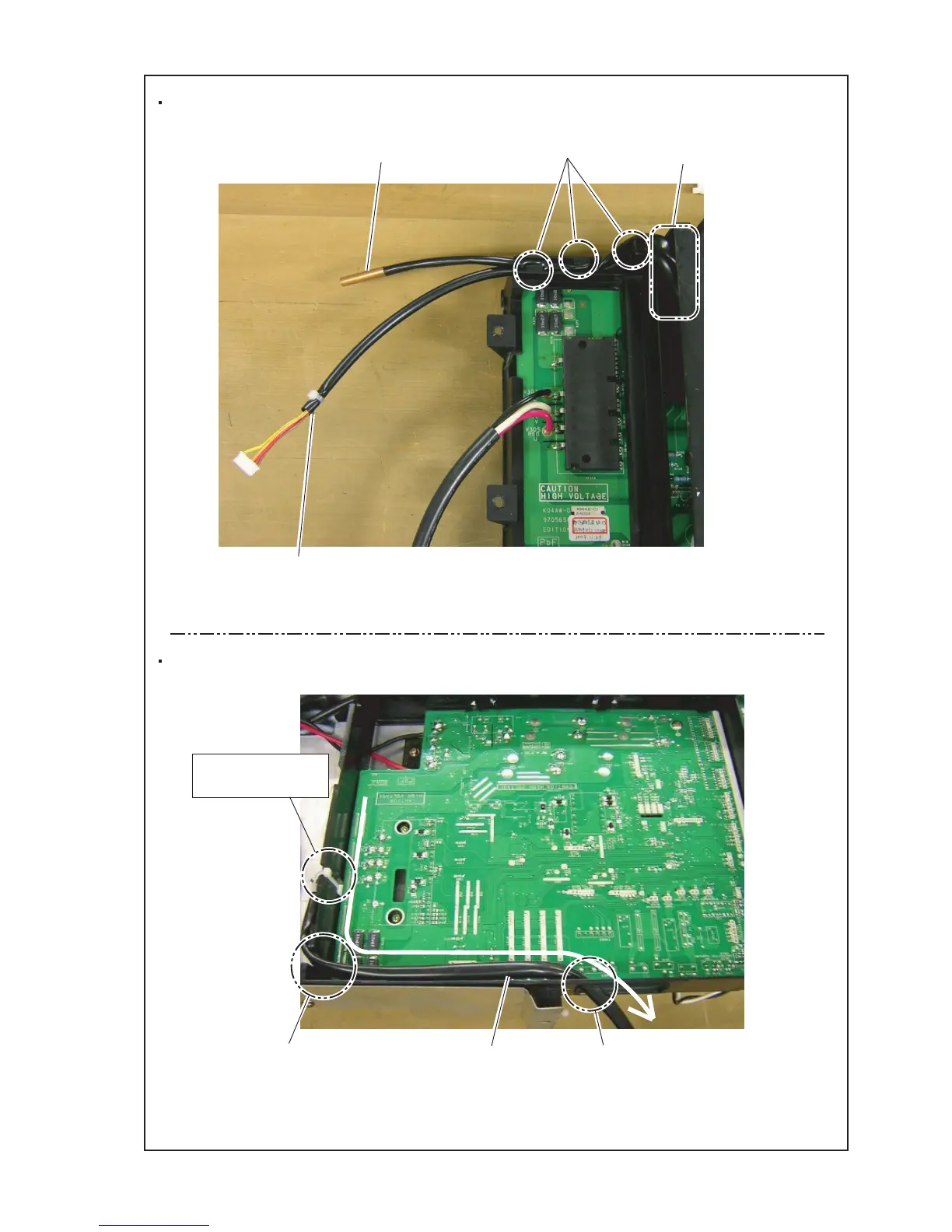

As shown in Fig.10, fix the wire to INVERTER BOX A.
As shown in the figures, set wire with connector and bind it to INVERTER BOX A.
03-20
Fig. 10
Fig. 11
Thermistor (Heat sink)
Hook (3 places)
Pull out the wire
through this opening
CN407
W303 (Black)
W304 (White)
W305 (Red)
Through the hole
Through the guide
Bind wire to
INVERTER BOX A.
