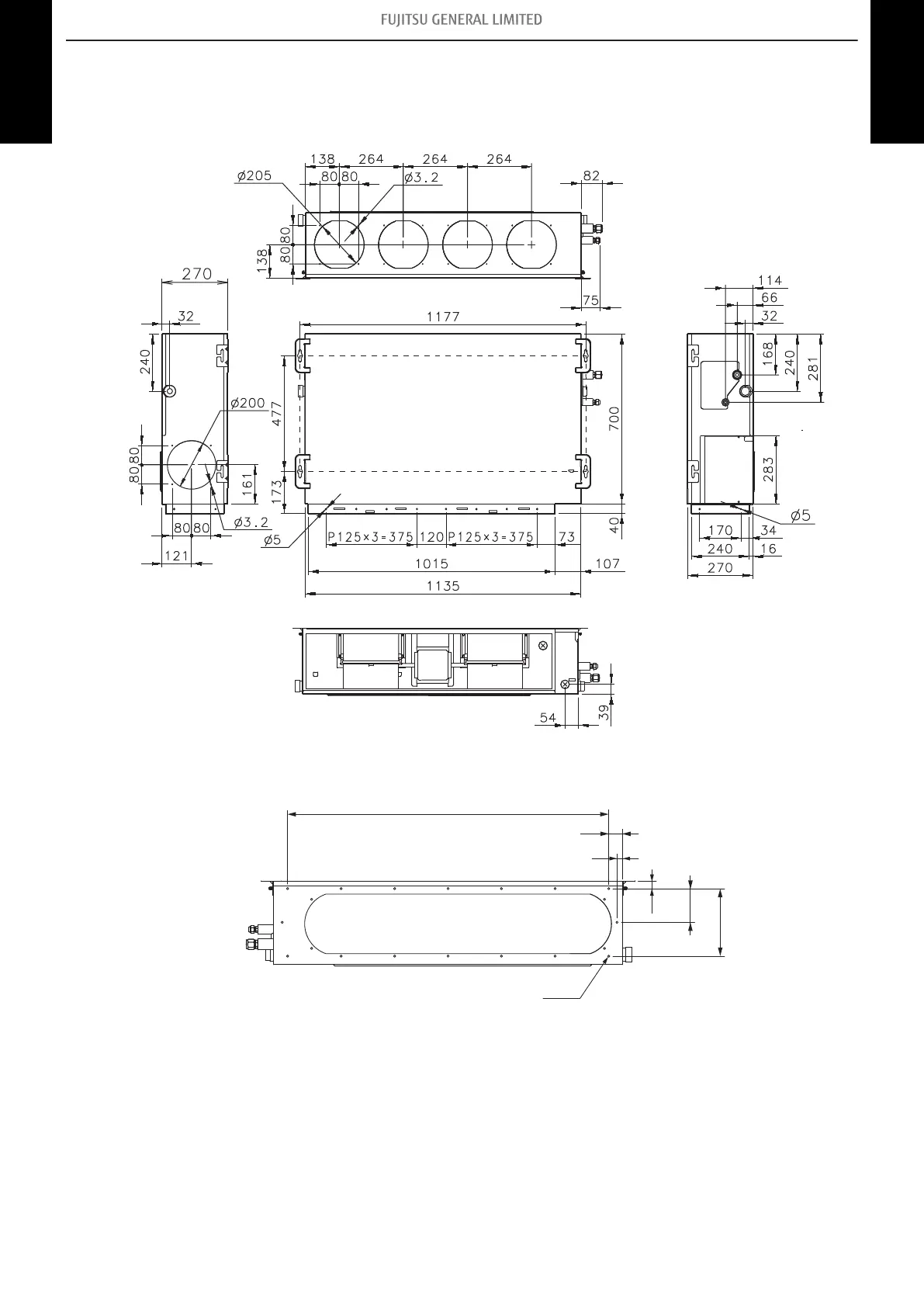

Fujitsu ARXG24KHTAP - Capacity Table; Cooling Capacity

4. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and the
indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
4-1. Cooling capacity
¢ Model: ARXG24KHTAP
AFR
m
3
/h
1,360
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB
TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-15 5.66 4.61 0.61 6.30 4.63 0.62 6.52 5.04 0.62 6.95 5.05 0.63 7.16 5.46 0.63 7.59 5.43 0.64 8.02 5.79 0.64
-10 5.70 4.61 0.51 6.35 4.64 0.52 6.57 5.05 0.52 7.00 5.06 0.53 7.22 5.47 0.53 7.65 5.45 0.54 8.09 5.80 0.54
0 5.56 4.54 0.52 6.19 4.57 0.53 6.40 4.97 0.53 6.83 4.98 0.54 7.04 5.38 0.54 7.46 5.36 0.55 7.88 5.71 0.55
5 5.41 4.49 0.66 6.02 4.51 0.67 6.23 4.91 0.67 6.64 4.92 0.68 6.85 5.32 0.69 7.26 5.29 0.69 7.67 5.64 0.70
10 5.37 4.47 0.65 5.98 4.50 0.66 6.19 4.89 0.66 6.60 4.90 0.67 6.80 5.29 0.67 7.21 5.27 0.68 7.62 5.62 0.69
15 5.20 4.40 0.78 5.79 4.42 0.79 5.99 4.81 0.79 6.39 4.82 0.80 6.58 5.21 0.81 6.98 5.19 0.81 7.37 5.53 0.82
20 6.54 5.01 1.39 7.29 5.04 1.41 7.54 5.48 1.42 8.04 5.50 1.43 8.28 5.94 1.44 8.78 5.92 1.45 9.28 6.30 1.47
25 6.15 4.86 1.54 6.85 4.89 1.56 7.09 5.31 1.57 7.55 5.33 1.58 7.79 5.76 1.59 8.25 5.74 1.61 8.72 6.11 1.62
30 5.76 4.69 1.69 6.41 4.71 1.71 6.63 5.13 1.72 7.07 5.14 1.74 7.29 5.55 1.75 7.72 5.53 1.76 8.16 5.89 1.78
35 5.37 4.53 1.82 5.98 4.56 1.85 6.19 4.96 1.86 6.60 4.97 1.88 6.80 5.37 1.89 7.21 5.35 1.91 7.62 5.70 1.93
40 5.09 4.40 1.98 5.67 4.42 2.01 5.87 4.81 2.02 6.26 4.82 2.04 6.45 5.21 2.05 6.84 5.19 2.07 7.22 5.53 2.09
46 4.18 3.89 1.70 4.66 3.91 1.73 4.82 4.25 1.74 5.13 4.26 1.75 5.29 4.60 1.76 5.61 4.59 1.78 5.93 4.89 1.80
¢ Model: ARXG30KHTAP
AFR
m
3
/h
1,700
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB
TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-15 6.18 5.25 1.03 6.40 5.27 1.06 6.54 5.28 1.08 6.91 5.53 1.09 7.27 5.79 1.11 7.68 5.97 1.13 8.29 6.25 1.15
-10 6.05 5.18 1.26 6.26 5.19 1.29 6.41 5.20 1.31 6.76 5.45 1.33 7.12 5.70 1.35 7.52 5.89 1.37 8.12 6.16 1.40
0 5.79 5.02 1.70 6.00 5.03 1.74 6.13 5.04 1.77 6.47 5.29 1.80 6.82 5.53 1.83 7.20 5.71 1.85 7.77 5.97 1.89
5 5.74 4.99 1.75 5.95 5.01 1.79 6.08 5.02 1.82 6.42 5.26 1.85 6.76 5.50 1.88 7.14 5.68 1.91 7.71 5.94 1.95
10 5.69 4.97 1.80 5.89 4.98 1.85 6.03 4.99 1.87 6.36 5.23 1.91 6.70 5.47 1.94 7.07 5.65 1.97 7.64 5.91 2.01
15 5.60 4.89 1.86 5.79 4.90 1.90 5.93 4.91 1.93 6.26 5.15 1.96 6.59 5.39 1.99 6.96 5.56 2.02 7.51 5.82 2.07
20 8.44 6.59 2.24 8.74 6.60 2.29 8.94 6.62 2.33 9.44 6.94 2.37 9.93 7.25 2.41 10.49 7.49 2.44 11.33 7.84 2.49
25 8.04 6.47 2.31 8.32 6.49 2.37 8.51 6.50 2.40 8.98 6.82 2.45 9.46 7.13 2.49 9.99 7.36 2.52 10.78 7.70 2.58
30 7.63 6.36 2.39 7.90 6.38 2.45 8.08 6.39 2.48 8.53 6.70 2.53 8.98 7.00 2.57 9.48 7.23 2.61 10.24 7.57 2.66
35 7.22 6.25 2.47 7.48 6.26 2.52 7.65 6.28 2.56 8.07 6.58 2.61 8.50 6.88 2.65 8.98 7.10 2.69 9.69 7.43 2.75
40 6.76 6.13 2.58 7.00 6.15 2.64 7.16 6.16 2.68 7.56 6.46 2.72 7.95 6.76 2.77 8.40 6.97 2.81 9.07 7.30 2.87
46 6.20 6.00 2.71 6.42 6.01 2.77 6.57 6.02 2.82 6.93 6.32 2.86 7.30 6.61 2.91 7.71 6.82 2.95 8.32 7.14 3.02
¢ Model: ARXG36KHTAP
AFR
m
3
/h
2,050
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB
TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-15 6.91 6.05 1.03 7.15 6.08 1.06 7.31 6.10 1.08 7.72 6.39 1.09 8.13 6.68 1.11 8.58 6.89 1.13 9.27 7.22 1.15
-10 6.76 6.03 1.26 7.00 6.06 1.29 7.16 6.08 1.31 7.56 6.37 1.33 7.96 6.66 1.35 8.40 6.87 1.37 9.07 7.19 1.40
0 6.47 6.00 1.70 6.70 6.02 1.74 6.86 6.04 1.77 7.24 6.33 1.80 7.62 6.62 1.83 8.05 6.83 1.85 8.69 7.15 1.89
5 6.42 5.97 1.75 6.64 6.00 1.79 6.80 6.02 1.82 7.17 6.30 1.85 7.55 6.59 1.88 7.98 6.80 1.91 8.61 7.12 1.95
10 6.36 5.95 1.80 6.59 5.98 1.85 6.74 5.99 1.87 7.11 6.28 1.91 7.49 6.56 1.94 7.91 6.78 1.97 8.54 7.10 2.01
15 6.26 5.85 1.86 6.48 5.88 1.90 6.62 5.90 1.93 6.99 6.18 1.96 7.36 6.46 1.99 7.77 6.67 2.02 8.39 6.98 2.07
20 9.44 7.86 2.42 9.77 7.89 2.47 9.99 7.91 2.51 10.55 8.29 2.55 11.10 8.67 2.60 11.73 8.95 2.63 12.66 9.37 2.69
25 8.98 7.65 2.50 9.30 7.68 2.56 9.51 7.71 2.60 10.04 8.07 2.64 10.57 8.44 2.68 11.16 8.71 2.72 12.05 9.12 2.78
30 8.53 7.44 2.58 8.83 7.48 2.64 9.03 7.50 2.68 9.53 7.85 2.73 10.03 8.21 2.77 10.60 8.48 2.81 11.44 8.88 2.87
35 8.07 7.24 2.66 8.36 7.27 2.72 8.55 7.29 2.77 9.02 7.64 2.81 9.50 7.98 2.86 10.03 8.24 2.90 10.83 8.63 2.96
40 7.55 7.03 2.78 7.82 7.06 2.85 8.00 7.08 2.89 8.44 7.42 2.94 8.89 7.76 2.99 9.39 8.01 3.03 10.14 8.38 3.10
46 6.93 6.78 2.93 7.18 6.81 2.99 7.34 6.83 3.04 7.75 7.16 3.09 8.16 7.48 3.14 8.61 7.72 3.19 9.30 8.09 3.26
- 12 -
4-1. Cooling capacity 4. Capacity table
DUCT TYPE ARXG24-54KHTAP DUCT TYPE ARXG24-54KHTAP
