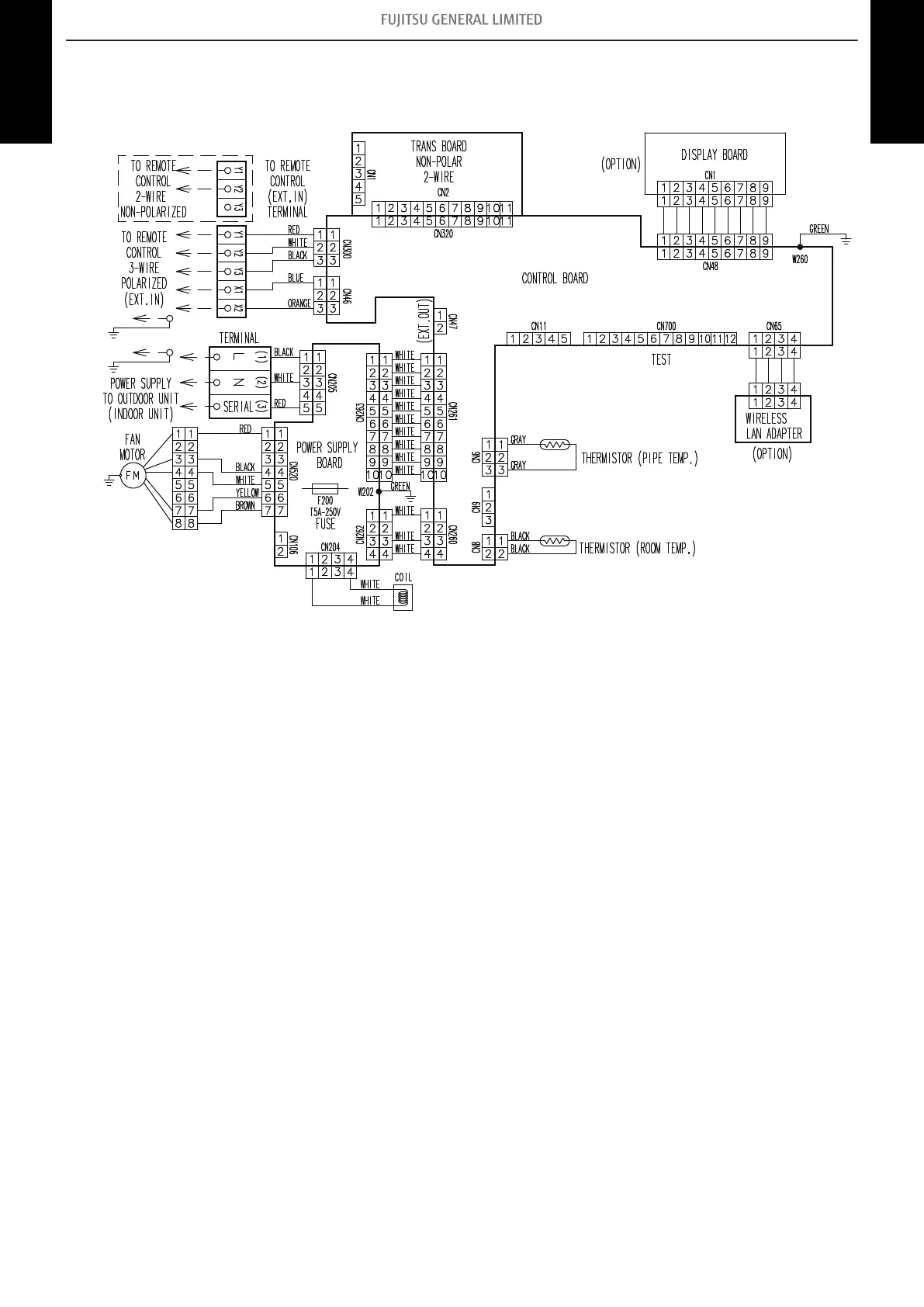

Fujitsu ARXG24KHTAP - Page 21

¢ Model: ARXG45KHTAP
AFR
m
3
/h
2,550
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB
TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 12.04 4.31 11.75 4.33 11.46 4.35 11.19 4.35 10.53 4.35
-10 -11 13.37 4.49 13.05 4.52 12.73 4.54 12.43 4.54 11.69 4.54
-5 -7 14.70 4.68 14.35 4.70 14.00 4.72 13.67 4.72 12.86 4.72
0 -2 15.48 4.86 15.11 4.88 14.74 4.91 14.40 4.91 13.54 4.91
5 3 16.57 4.30 16.18 4.32 15.78 4.35 15.42 4.35 14.50 4.35
7 6 17.01 4.30 16.61 4.32 16.20 4.34 15.82 4.34 14.88 4.34
10 8 17.72 4.29 17.29 4.31 16.87 4.33 16.48 4.33 15.50 4.33
15 10 18.89 4.27 18.44 4.29 17.99 4.31 17.57 4.31 16.53 4.31
20 15 20.07 4.25 19.59 4.28 19.11 4.30 18.66 4.30 17.55 4.30
24 18 21.01 4.24 20.50 4.26 20.00 4.29 19.54 4.29 18.38 4.29
¢ Model: ARXG54KHTAP
AFR
m
3
/h
2,550
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB
TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 12.26 4.49 11.97 4.51 11.67 4.53 11.40 4.58 10.72 4.71
-10 -11 13.62 4.68 13.29 4.70 12.97 4.72 12.66 4.78 11.91 4.91
-5 -7 14.97 4.87 14.61 4.89 14.26 4.92 13.93 4.97 13.10 5.11
0 -2 15.77 5.06 15.39 5.08 15.02 5.11 14.67 5.17 13.79 5.31
5 3 16.88 4.59 16.48 4.61 16.08 4.64 15.70 4.69 14.77 4.82
7 6 17.33 4.58 16.91 4.61 16.50 4.63 16.12 4.68 15.16 4.81
10 8 18.05 4.57 17.61 4.60 17.18 4.62 16.78 4.67 15.79 4.80
15 10 19.24 4.56 18.78 4.58 18.32 4.60 17.90 4.65 16.83 4.78
20 15 20.44 4.54 19.95 4.56 19.46 4.59 19.01 4.64 17.88 4.76
24 18 21.40 4.53 20.88 4.55 20.37 4.57 19.90 4.62 18.72 4.75
- 15 -
4-2. Heating capacity 4. Capacity table
DUCT TYPE ARXG24-54KHTAP DUCT TYPE ARXG24-54KHTAP
