Fujitsu ARXG24KMLA Service Manual

¢
UTY-RVNYM
 Function setting procedure

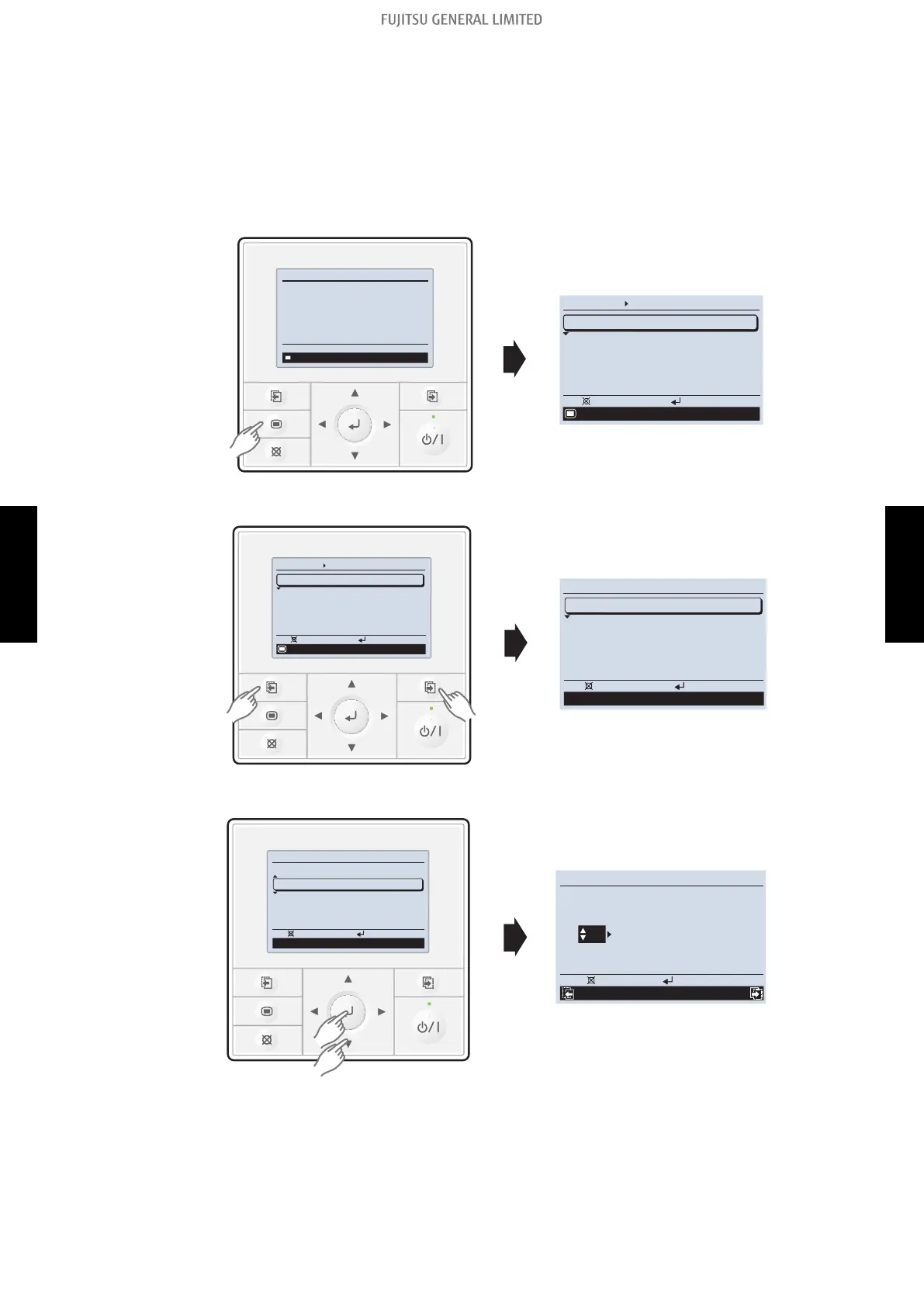

1. Connect the power supply of the outdoor unit.
2. Switch to the function setting mode.
When [Menu button] is pressed twice while “Monitor” screen is displayed, it switches to the
“Submenu” screen. If [Menu button] is pressed while the “Submenu” screen is displayed, the
display returns to the “Monitor” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo
10:00AM
Menu
Monitor
O f f
Mo 10:00 AM
Press the [Screen switch button (Left)] and [Screen switch button (Right)] simultaneously for 5
seconds to switch to “Service” screen.
Back : Se tt in g:
Service
Mo
10:00AM
Func t ion s ettin g
Error his t ory
I.U.a d dres s ver if ic at io n
V e r s i o n
Test run
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo 10:00AM
Select [Function setting] with pressing the [Cursor button (Up/Down)], and press the [Enter but-
ton].
Back
: Setting:
Service
Mo 10:00AM
Fu nc ti on s et t in g
Error h is to ry
I.U.add re ss v e r if i c at i o n
V e r s i o n
Test run
C
ancel
:
OK :
Function set tin g
Mo
10:00AM
R.C. Function Setting
address No. No.
00 00 00
Version Er ror his t ory
1-6. Indoor unit (setting by wired remote controller) - (05-20) - 1. Function settings
