Fujitsu ARXG24KMLA - 3. Installation space; 3-1. Models: AOYG36 KRTA, AOYG45 KRTA, and AOYG54 KRTA

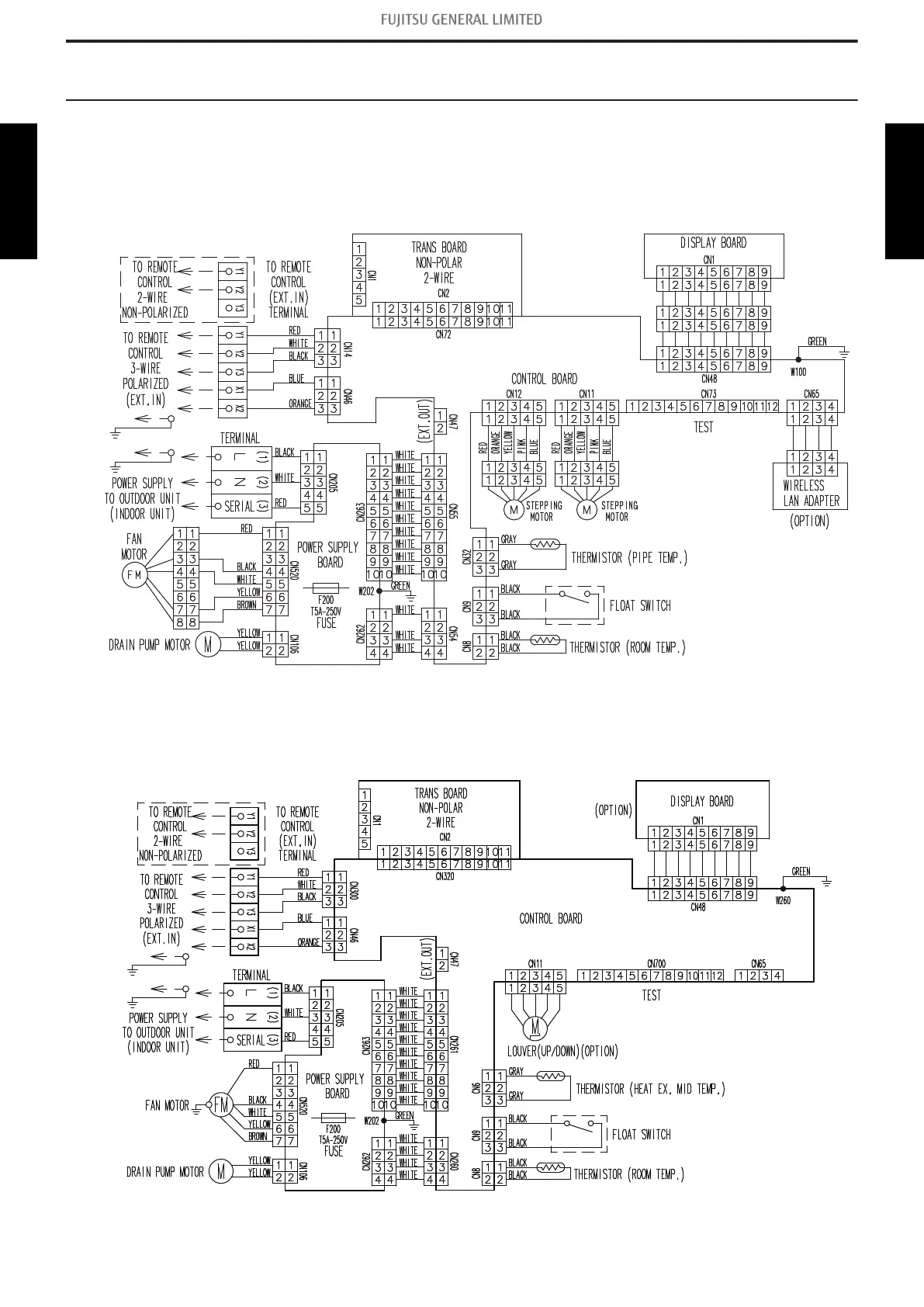

8. Wiring diagrams
8-1. Indoor unit
¢
Compact cassette type

Models: AUXG18KVLA, AUXG22KVLA, and AUXG24KVLA
¢
Slim duct type

Model: ARXG18KLLAP
WLAN adapter,
Converter etc.
(Option)
8-1. Indoor unit - (02-37) - 8. Wiring diagrams
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
