3. External input and output for indoor unit
Connector Input Output Remarks
CN114 Control input —
See external input/output
settings for details.
CN115 — Operation status output
CN14 — Fresh air control output
CN15 — Auxiliary heater output

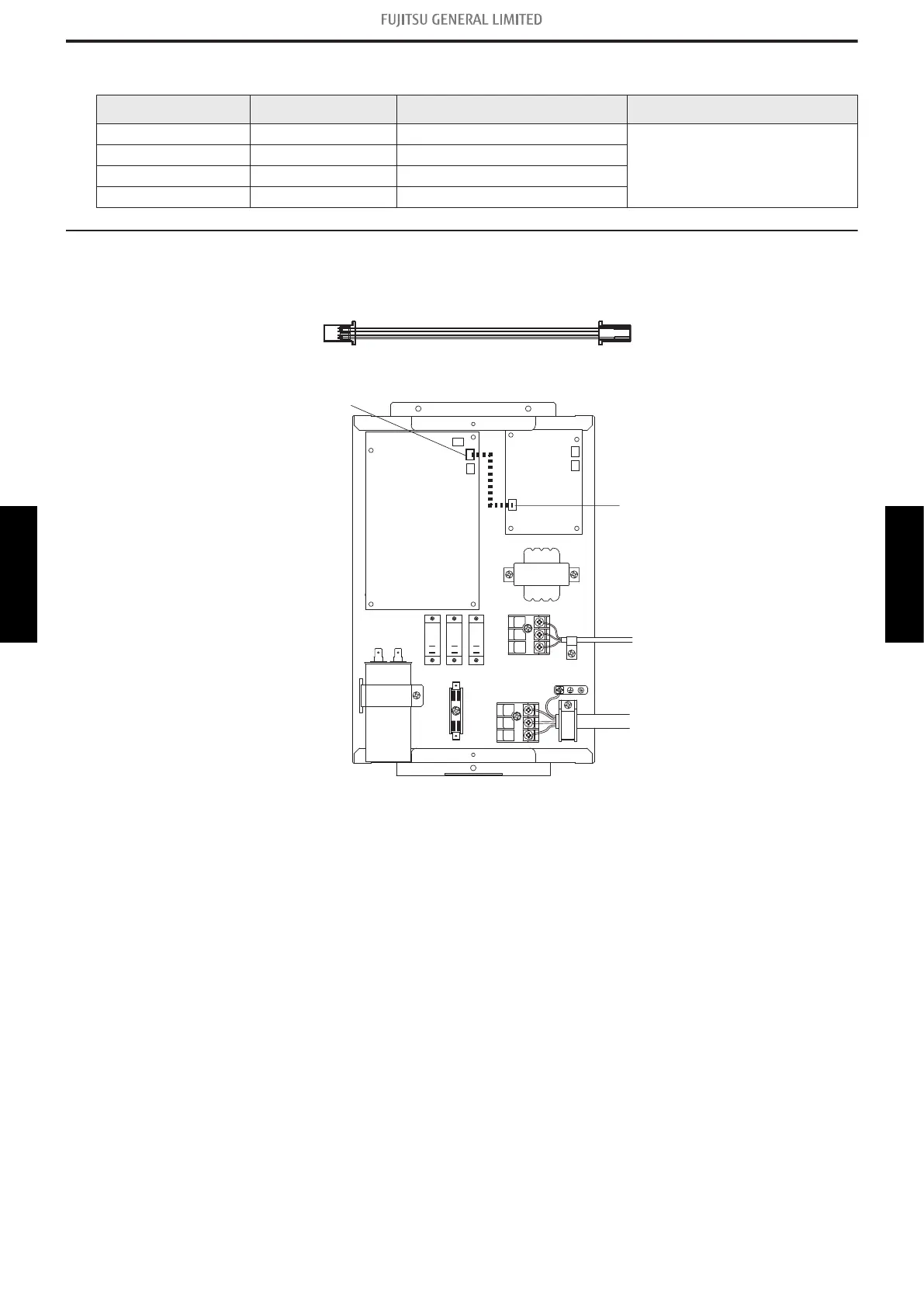

3-1. Preparation
Before connecting the external input, preparation is necessary using the signal wire in the figure be-
low.
→hen the external input/output is used, connect the external signal wire as shown in the figure.
Power PCB
Control PCB
CN106
Black
CN5
Black
