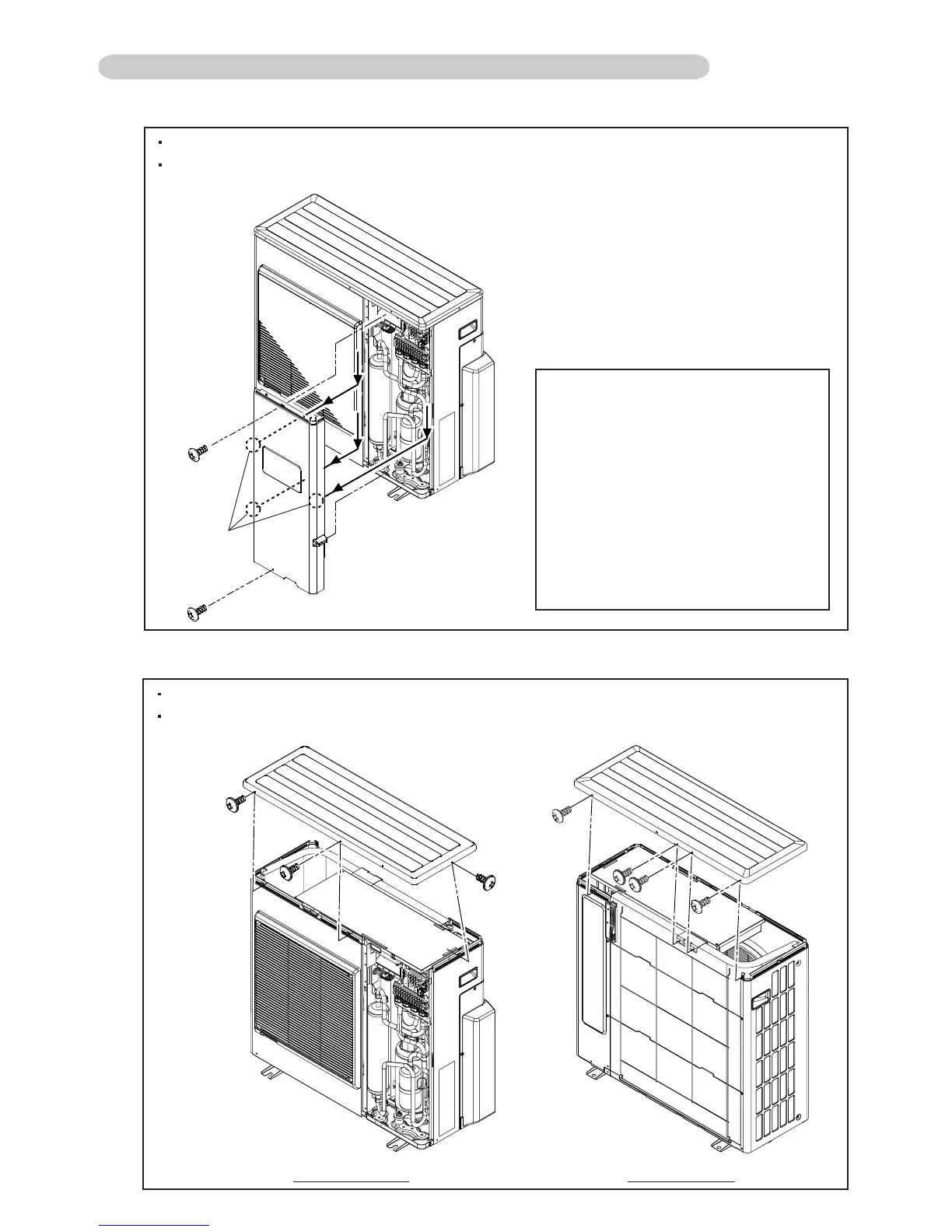

1. SERVICE PANEL removal
Remove the 2 mounting screws.
Remove the SERVICE PANEL by sliding downward.
2. TOP PANEL removal
Remove the 7 mounting screws.
Remove the TOP PANEL upward.
FRONT VIEW REAR VIEW
1-2-3 DISASSEMBLY PROCESS (For AO*30LMAW4)
03-11
Replaceable Component
Compressor
Accumulator
4-way valve
Solenoid
Thermistor (Compressor temp.)
Thermistor (Discharge temp.)
Thermistor (Outdoor temp.)
Thermistor (Heat exchanger temp.)
Thermistor (2/3-way valve temp.)
Pressure SW
Coil (Expansion valve)
Hook
(3 places)
