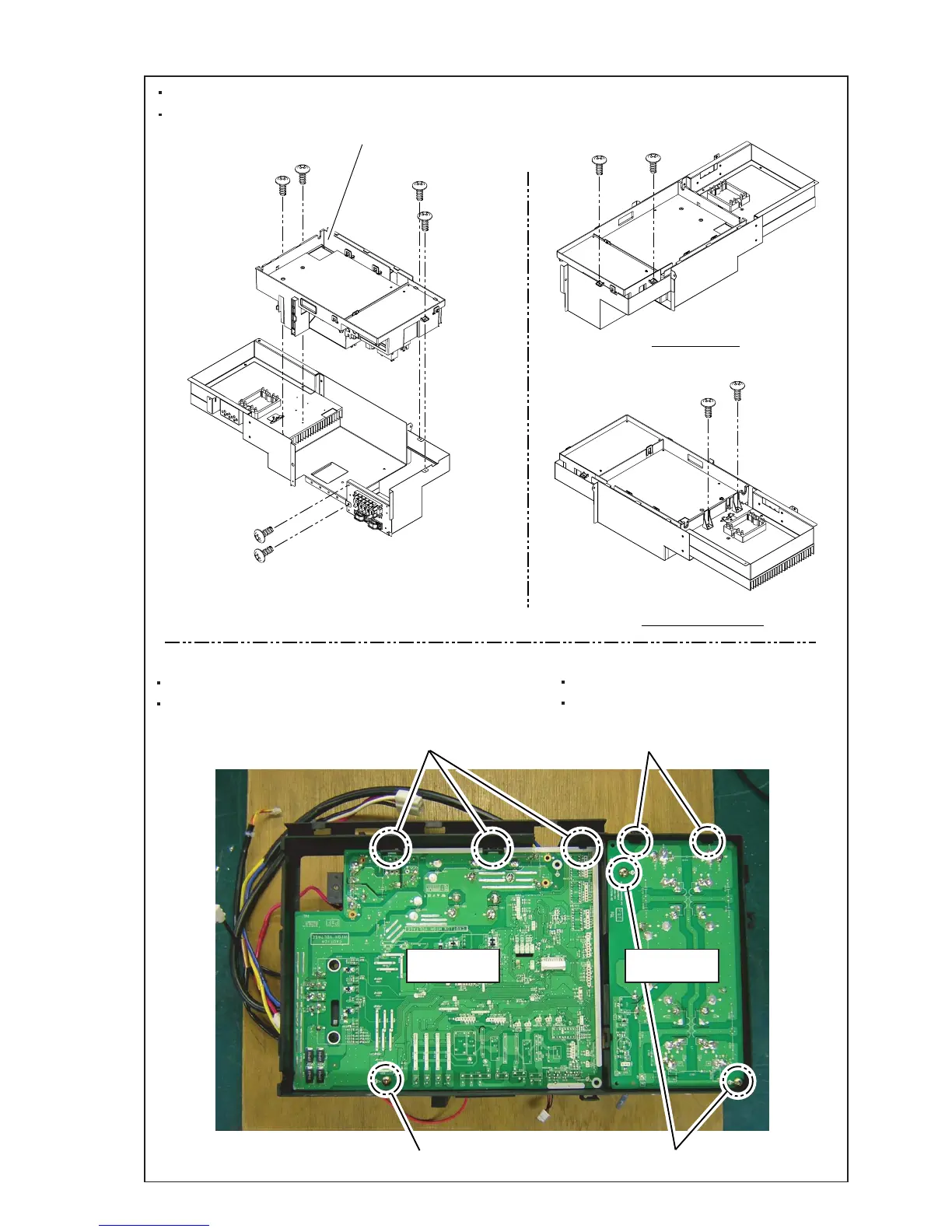

Remove the 6 mounting screws.
Remove the INVERTER BOX A upward.
03-15
INVERTER BOX A
REAR VIEW
LEFT SIDE VIEW
1
3
3
4
4
5
5
6
6
2
Main PCB
Remove the 1 mounting screw.
Remove the Main PCB upward.
Filter PCB
Remove the 2 mounting screws.
Remove the Filter PCB upward.
Screw Screw
Hook (3 places)
Hook (2 places)
Main PCB Filter PCB
