Fujitsu AS*9LSACW - Diagram for LSAC Models

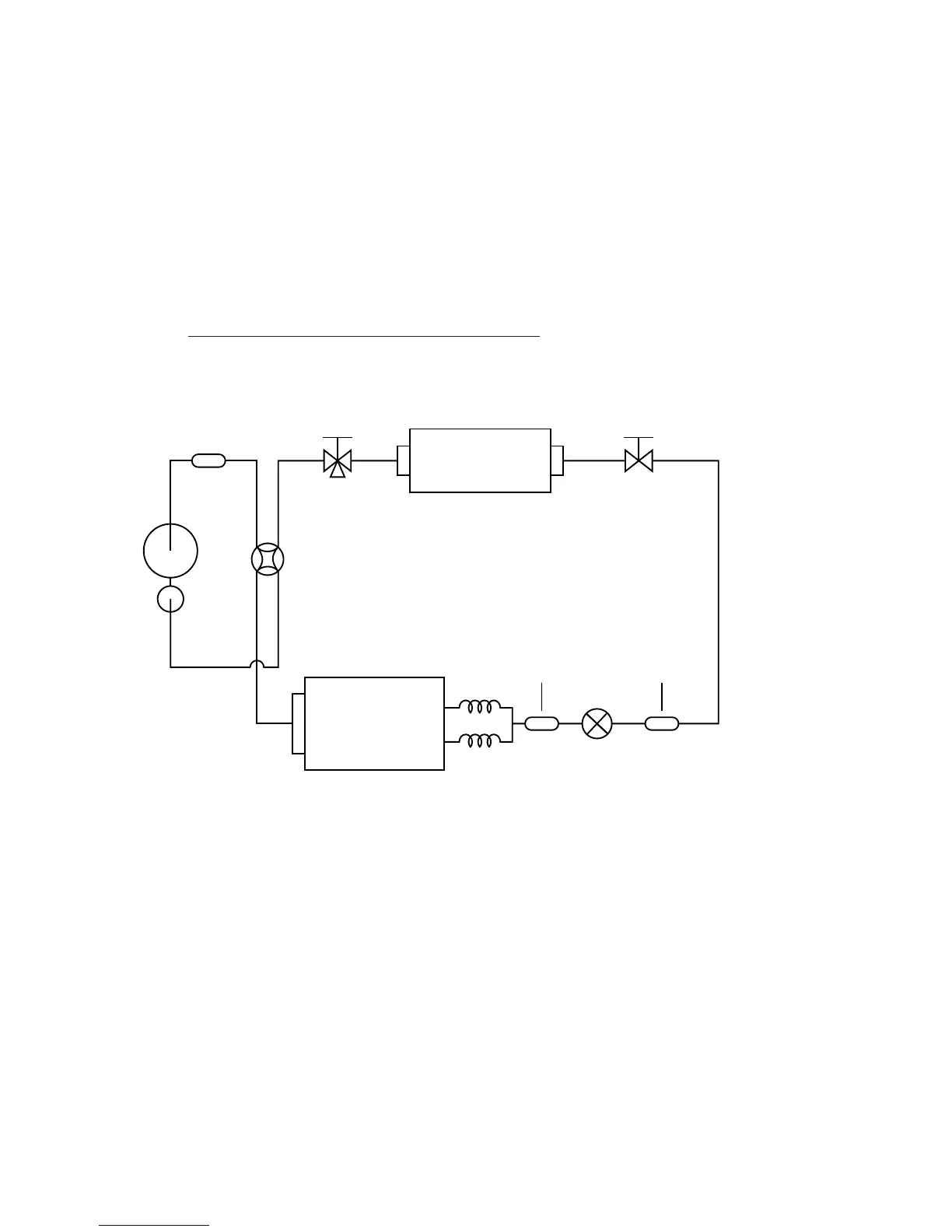

REFRIGERANT SYSTEM DIAGRAM
Models : AS*9LSACW / AO*9LSACW
AS*12LSACW / AO*12LSACW
(2 pass)
(2 pass)
Indoor heat exchanger
Outdoor heat exchanger
Capillary
tube
Pulse motor valve
2way-valve3way-valve
Muffler
Compressor
Accumulator
4way-valve
Strainer Dryer
03-01
