Outdoor Unit High Pressure Value and Outdoor Total Electric Current Curve (Heating)
Model Name : AS*9LSACW, AS*12LSACW
[Condition]
Ambient
temperature
Indoor 15 - 23degC, Outdoor 2 - 12degC
Refrigerant
amount
Standard amount
Piping 7.5m (Height difference 1m)
Power
voltage
50Hz - 230V
Operation
condition
TEST mode (Heating), Hi Fan, Lower direction, Front air flow
Measuring
method
Caution
Start operation with the condition of the Indoor Unit air filter clean.
[Constant Frequency Operation Method (Test mode)]
1. Operate on Heating mode, and press TEST button of remote control.
2. Operate continuously for 30 minutes. (After 60 minutes of operation, Test mode is released automatically.)

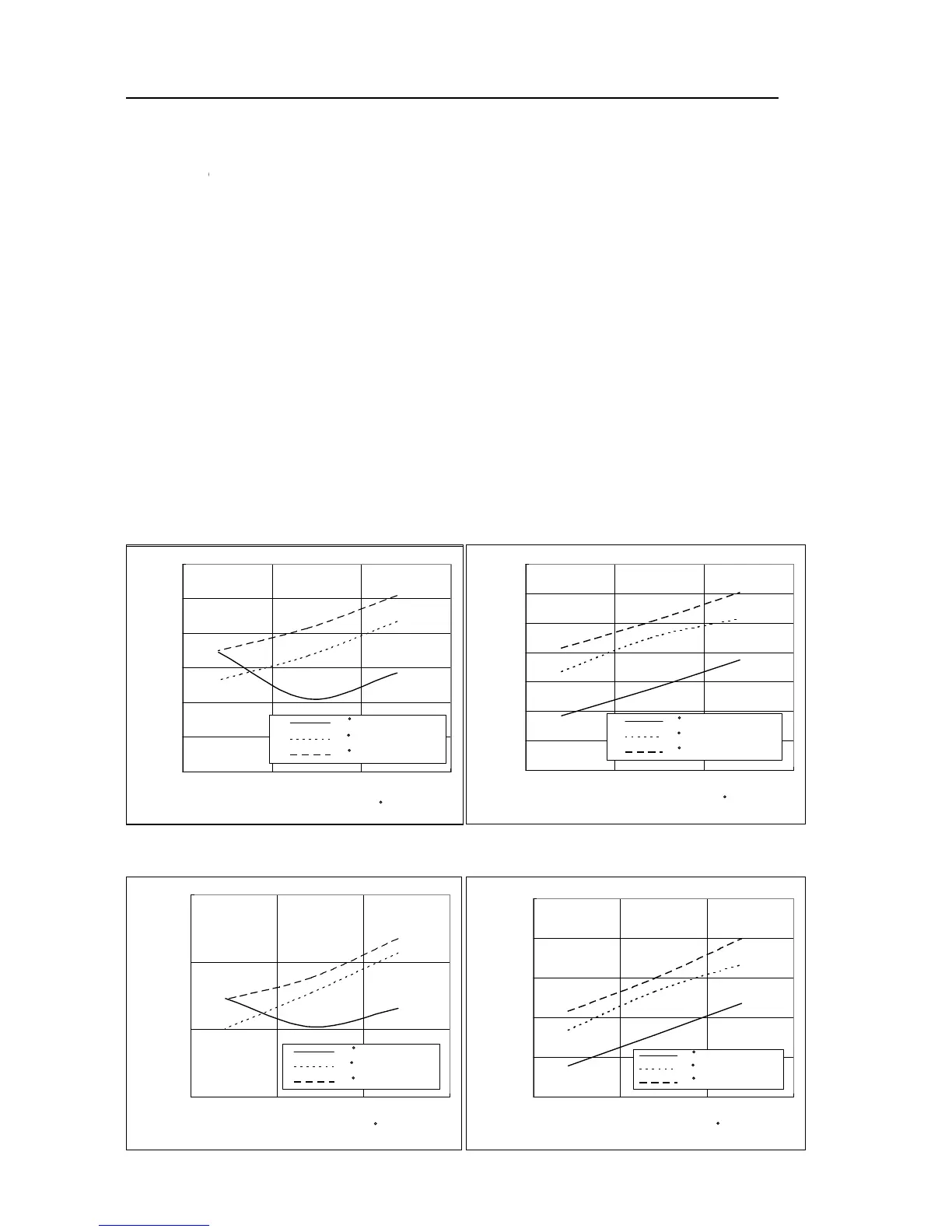

(1) Indoor/Outdoor Temperature - Outdoor High Pressure Curve
AS*9LSACW series
AS*12LSACW
(2) Indoor/Outdoor Temperature - Outdoor Total Electric Current Curve
AS*9LSACW series AS*12LSACW
outdoor unit overall current with the current clamp meter at Power Cable.
2
2.2
2.4
2.6
2.8
3
3.2
3.4
0 5 10 15
outdoor ambient temparature C
High-pressure of outdoor unit MPaG
15 C
20 C(Indoor inlet temp)
23 C
5.00
5.50
6.00
6.50
7.00
7.50
0 5 10 15
outdoor ambient temparature C
Outdoor total electric current A
15 C
20 C(Indoor inlet temp)
23 C
1.8
2
2.2
2.4
2.6
2.8
3
0 5 10 15
outdoor ambient temparature C
High-pressure of outdoor unit MPa
15 C
20 C(Indoor inlet tempe)
23 C
3.00
3.50
4.00
4.50
0 5 10 15
outdoor ambient temparature C
Outdoor total electric current A
15 C
20 C(Indoor inlet temp)
23 C
length
08-03
