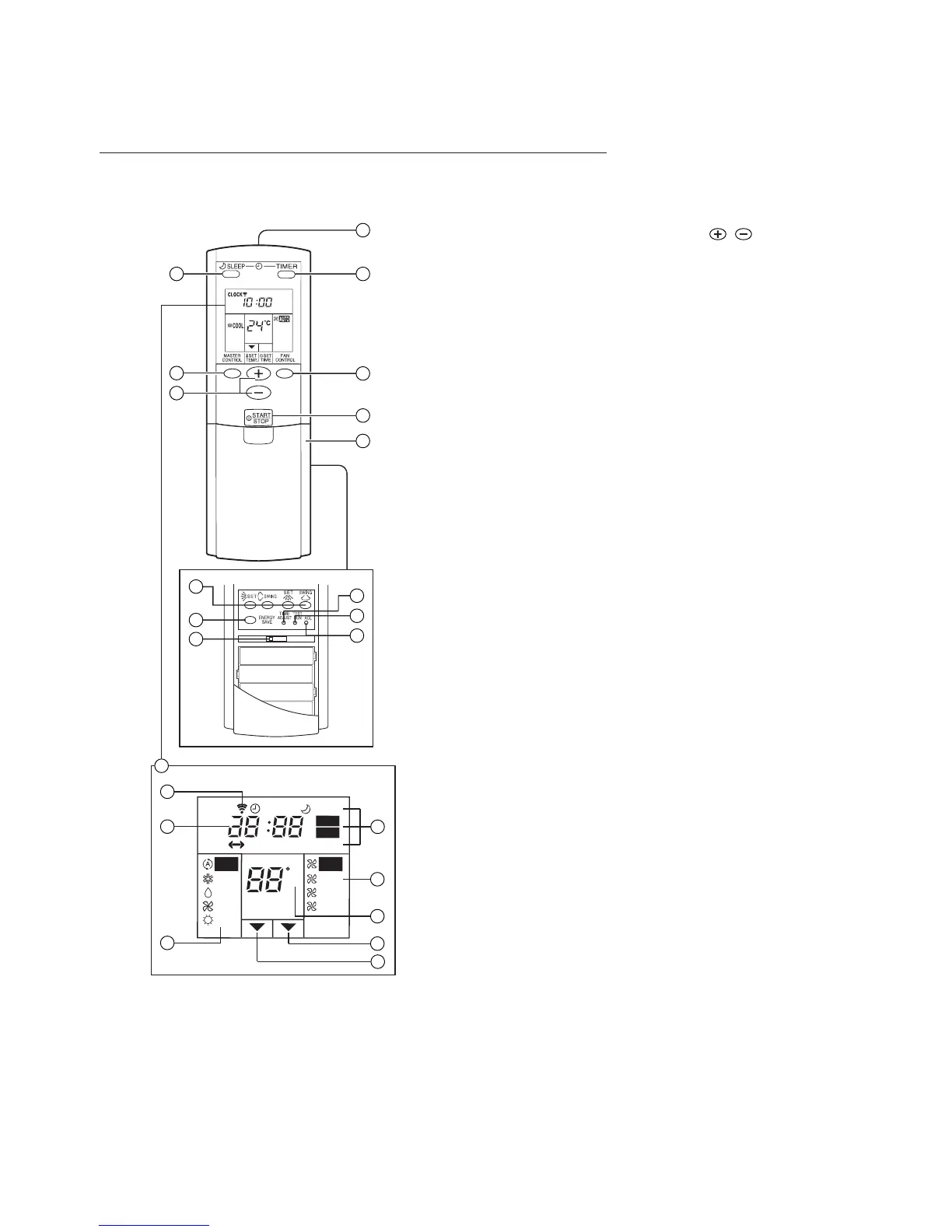

1.3.3 WIRELESS REMOTE CONTROL UNIT
q SLEEP button
w MASTER CONTROL button
e SET TEMP./SET TIME buttons ( / )
r Signal Transmitter
t TIMER button
y FAN CONTROL button
u START/STOP button
i Battery compartment lid
Inside of the battery compartment lid
o AIRFLOW DIRECTION button
!0 ENERGY SAVE button
!1 CODE CHANGE (Slide Switch)
Switching the remote control unit code.
(Max. 4 units)
!2 TIME ADJUST button
!3 TEST RUN button
• This button is used when installing the air con-
ditioner, and should not be used under normal
conditions, as it will cause the air conditioner's
thermostat function to operate incorrectly.
• lf this button is pressed during normal opera-
tion, the unit will switch to test operation mode,
and the Indoor Unit's OPERATION Indicator
Lamp and TIMER Indicator Lamp will begin to
flash simultaneously.
• To stop the test operation mode, either press the
TEST RUN button once again, or press the
START/STOP button to stop the air conditioner.
!4 ACL button
!5 Remote Control Unit Display
!6 Transmit Indicator
!7 Clock Display
!8 Operating Mode Display
!9 Timer Mode Display
@0 Fan Speed Display
@1 Temperature Set Display
@2 Timer Set Indicator
@3 Temperature Set Indicator
A B C D
COOL
FAN
HEAT
AUTO
AUTO
HIGH
MED
LOW
TIMER
TIMER RESET
CLOCK
SLEEP
ENERGY SAVE
C
AM
PM
ON
OFF
OFF
ON
HM
DRY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
