3.5 MODELS : AS ✽ 20A, 20R, 24A, 24R, 30A, 30R, ASC-502B, ASC-602B

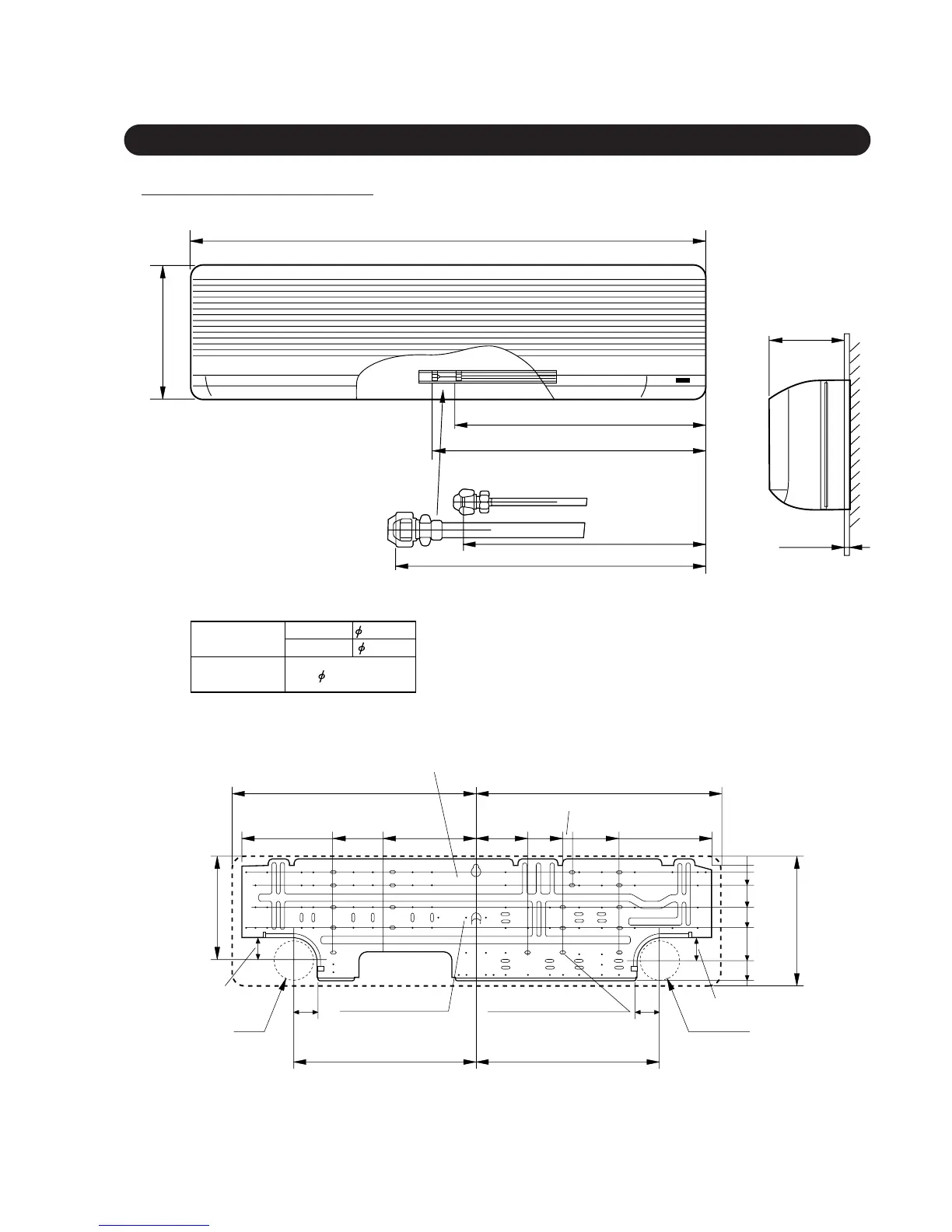

3.5.1 INDOOR UNIT
660 (25-31/32")
5 (3/16" )
720 (28-11/32")
1,250 (49-7/32" )
320 (12-19/32" )
660 (25-31/32")
720 (28-11/32")
195
(7-11/16" )
57
(2-1/4")
57 (2-1/4")
244 (9-19/32")
55
(2-5/32")
55
(2-5/32")
315 (12-13/32")
241 (9-1/2")
186 (7-11/32")
131 (5-5/32")
76(3")
36 (1-13/32")
24 (15/16")
Wall hook bracket
84 (3-5/16") - ø6 (1/4") holes
for tapping screw
20 (25/32") - ø12 (15-32") x 18holes
for bolt
Piping
inlet
Piping inlet
622 (24-1/2")
598 (23-17/32")
466 (18-11/32") 472(18-19/32")
241(9-1/2")
366
(14-13/32")
133
(5-1/4")
373
(14-11/16")
604
(23-25/32")
216
(8-1/2")
219
(8-5/8")
628 (24-23/32")
320(12-19/32")
Connecting
pipe
15.88 (5/8")
9.52 (3/8")
Gas
Liquid
16 (5/8")
Drain pipe
Unit : mm (inch)
