– 145 –
(1) Do not install where there is the
danger of com-bustible gas leakage.
(2) Do not install near heat sources.
(3) If children under 10 years old may
approach the unit, take preventive
measures so that they cannot reach
the unit.
Install at a place that can withstand the
weight of the indoor and outdoor units
and install positively so that the units
will not topple or fall.
Decide the mounting position with the customer as
follows:
1. INDOOR UNIT
(1) Install the indoor unit level on a strong wall, floor,
ceiling which is not subject to vibration.
(2) The inlet and outlet ports should not be obstructed :
the air should be able to blow all over the room.
(3) Install the unit near an electric outlet or special
branch circuit.
(4) Do not install the unit where it will be exposed to
direct sunlight.
(5) Install the unit where connection to the outdoor unit
is easy.
(6) Install the unit where the drain pipe can be easily
installed.
(7) Take servicing, etc. into consideration and leave the
spaces shown in Fig.1. Also install the unit where
the filter can be removed.

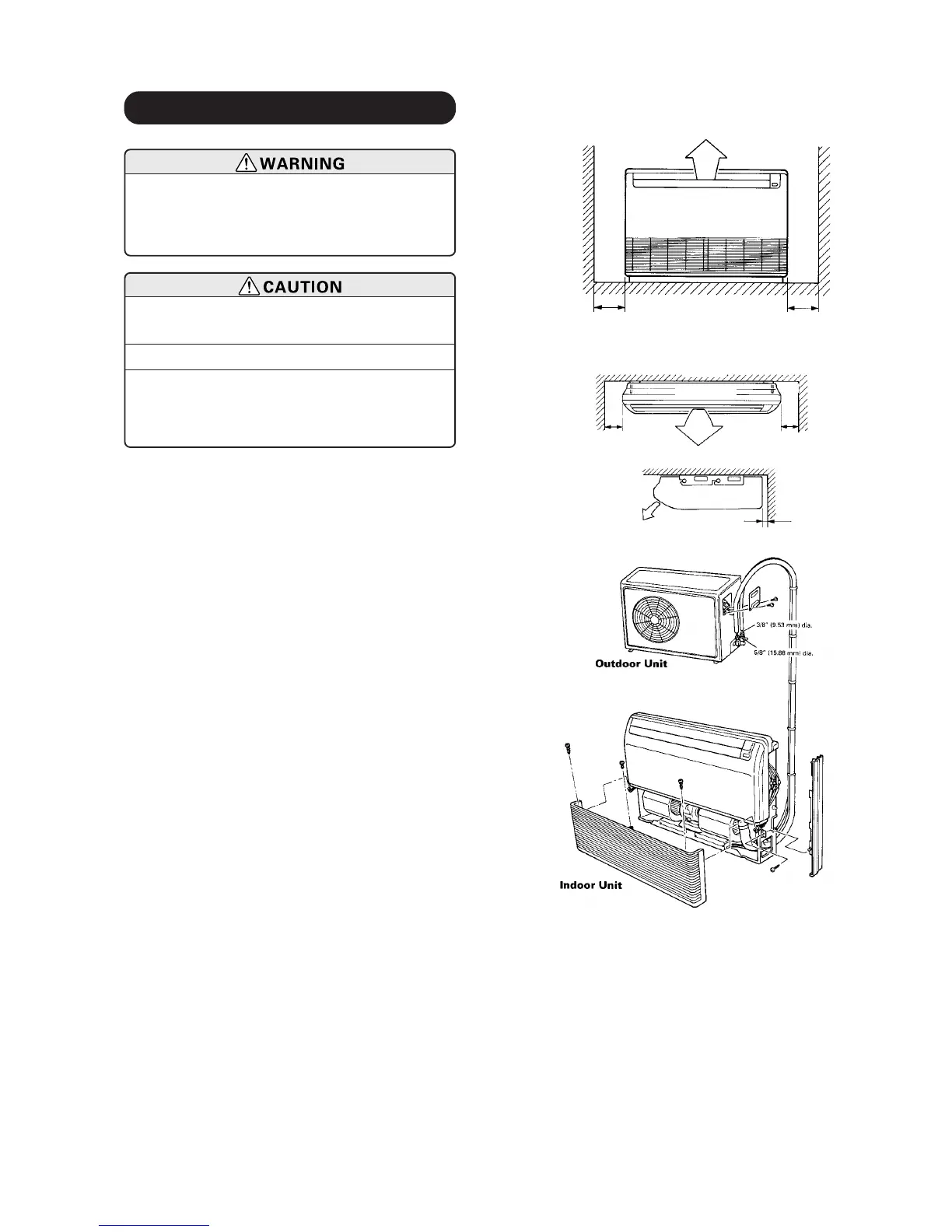

Fig. 1
SELECTING THE MOUNTING POSITION
Left Right
12" (30 cm)
or more
12" (30 cm)
or more
• Floor console
• Under ceiling
Ceiling
Left
Indoor unit
Right
6" (15 cm)
or more
12" (30 cm)
or more
Ceiling
3/4" (2 cm)
or more
To Next Page
