Fujitsu AS*9R User Manual

– –
Remote control unit
Fig. 42
Screws
Screw
Insert
Slide
Insert Slide up
For use as Handy Type
For use as Wall Fixing Type
1. Mount the
Holder.
2. Set the Remote
ControlUnit.
3. To remove the
RemoteControl Unit
(when useat hand.)
1. Mount the
Holder.
2. Set the Remote
ControlUnit.
3. Attach the unit to
the holder as shown.
Screws
Fig. 43
– 156 –

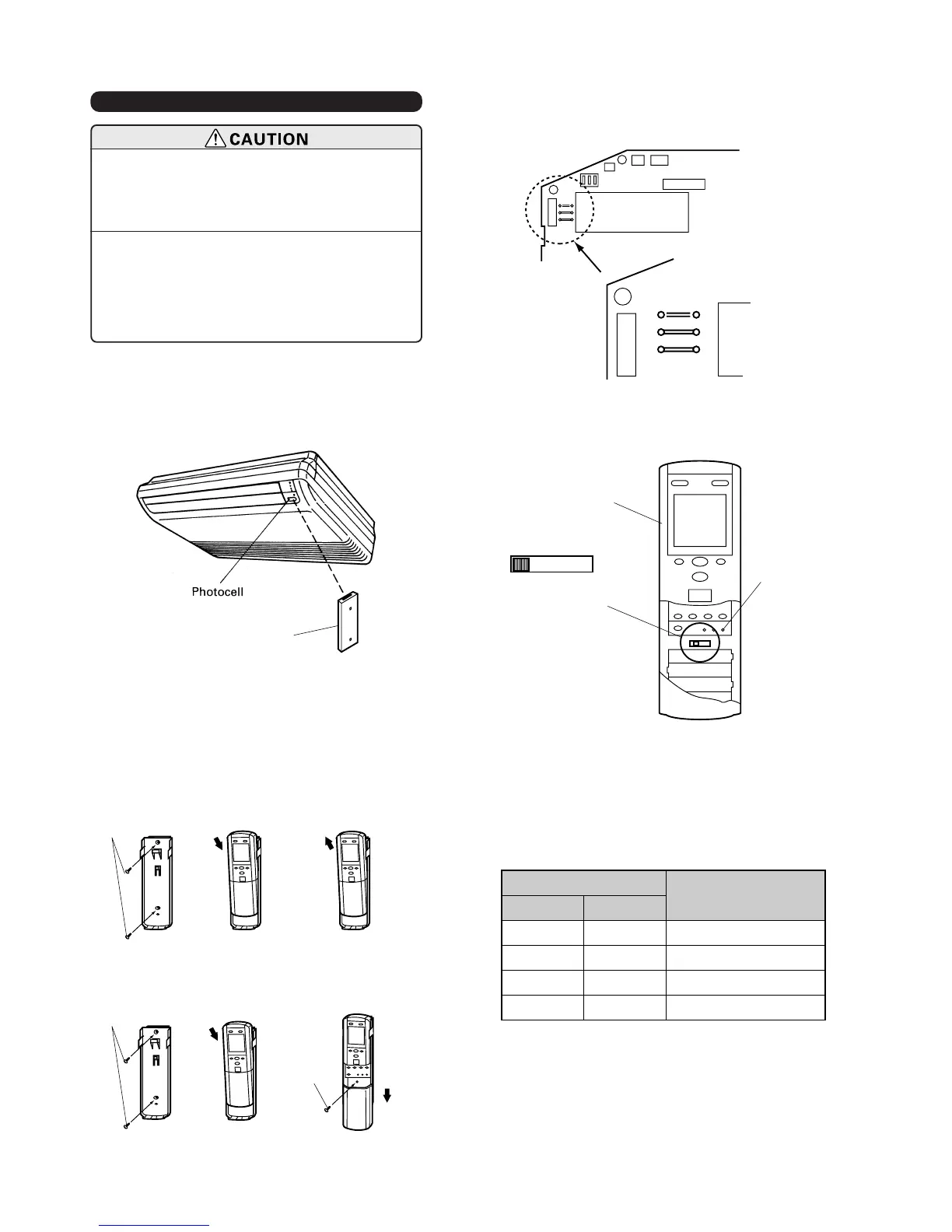

11. REMOTE CONTROL UNIT INSTALLATION
(1) Check that the indoor unit correctly
receives the signal from the remote
control unit, then install the remote
control unit holder.
(2) Select the remote control unit holder
selection site by paying careful atten-
tion to the following:
Avoid places in direct sunlight.
Select a place that will not be affect-
ed by the heat from a stove, etc.
1. REMOTE CONTROL UNIT HOLDER INSTAL-
LATION
Install the remote control unit so that the front is fac-
ing the photocell. (Fig. 42)
ABCD
ABCD
Remote control unit
signal selector switch
Indoor unit
Printed circuit board
JM1
JM2
JM3
AUTORESTART
REMOCON 2
REMOCON 1
Remote control unit
ACL button
Fig. 42
2. REMOTE CONTROL UNIT CODE SWITCHING
Confirm the remote control unit signal selector
switch selection and printed circuit board setting.
If these are not confirmed, the remote control unit
cannot be operated for the air conditioner.
After setting the remote control unit signal selector
switch, press the ACL button.
Install the remote control unit with a distance of 7 m
between the remote control unit and the photocell
as the criteria. However, when installing the remote
control unit, check that it operates positively.
Install the remote control unit holder to a wall, pillar,
etc. with the tapping screw (Fig. 43).
Table 5
Jumper wire
Remote control unit
signal selector switch
JM 2 JM 3
Connect Connect
Connect Disconnect
Disconnect Connect
Disconnect Disconnect
A (Primary setting)
B
C
D
