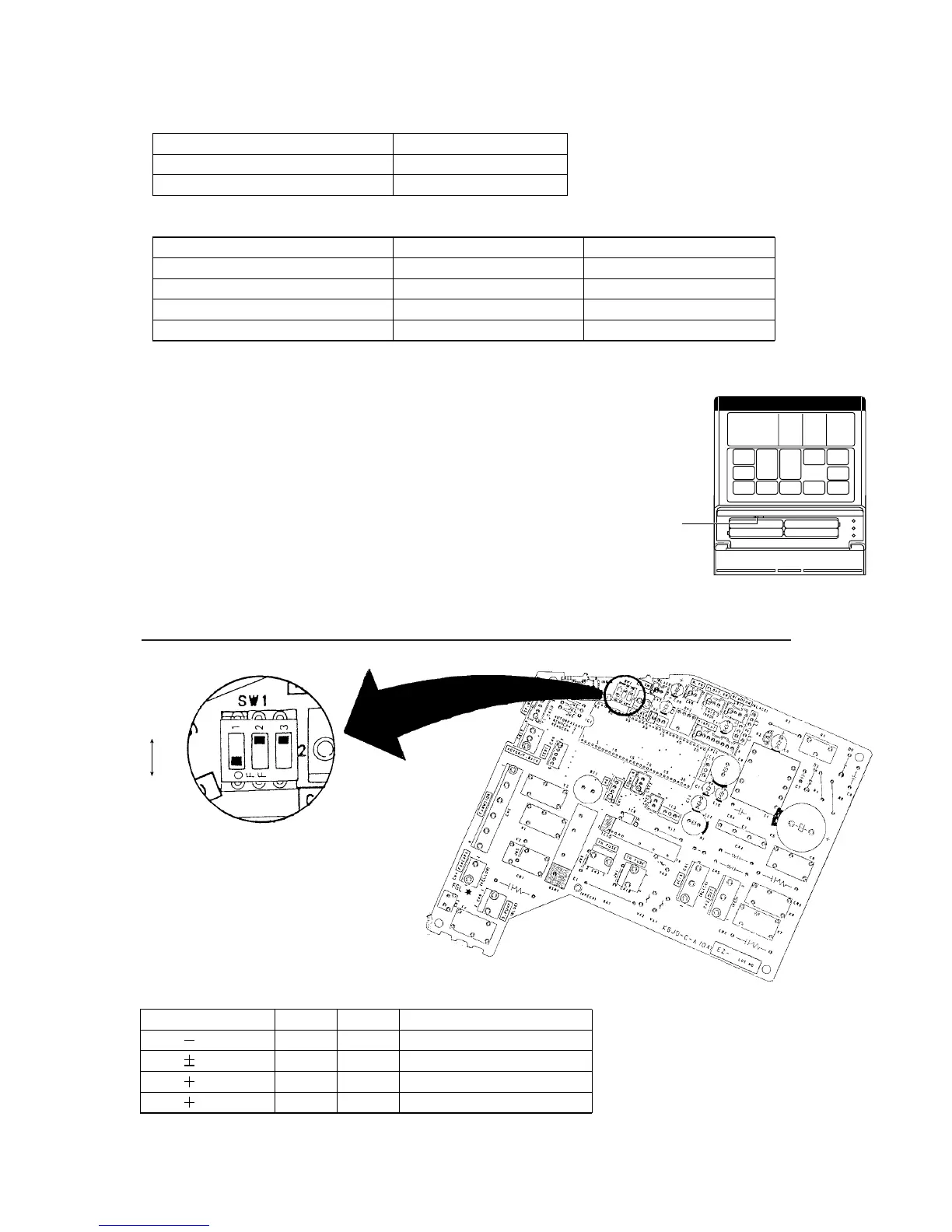

✩ Confirm the remote controller's "CODE CHANGE Switch"
selection and printed wiring board setting.
· If these are not confirmed, the remote controller cannot be
operated for the air conditioner.
Auto - Restart Enable (default)
Auto - Restart Disable
Remote - Controller Code-A (default)
Remote - Controller Code-B
Remote - Controller Code-C
Remote - Controller Code-D
Disconnect
JM1
JM2
Connect
Disconnect
Connect
Disconnect
JM3
Connect
Connect
Disconnect
Disconnect
Connect
✩
CODE CHANGE Switch
1.4.2 COMPENSATION (HEATING CORRECTION COEFFICIENT)
✩ The function of DIP1 does not work on AS and AB models.
Turn the DIP1 off anytime.
2
°
C
0
°
C
2
°
C
4
°
C(default)
Compensation
DIP2
ON
OFF
OFF
ON
DIP3
OFF
ON
OFF
ON
Application (AB model only)
for floor console
for under ceiling
ON
OFF
