4.4.3 LI SERIES MODELS :
AS ✽ 9A, 9R, 12A, 12R, AS ✽ 14A, 14R, 17A, 17R
2.0 1.0 0.5
2.0
1.0
0.5
2.0
2.0
1.0
0.5
1.0
0.5
2
1
0
1
2
01 234
2
1
0
1
2
01 234
Unit: m/s
Louver:Right
Louver:Left
Unit: m/s
Unit: m/s
3
2
1
01 234
3
2
1
01 234
Unit: m/s
2.0
1.0
0.5
(m)
(m)
(m)
(m)
(m)
(m)
(m)
(m)

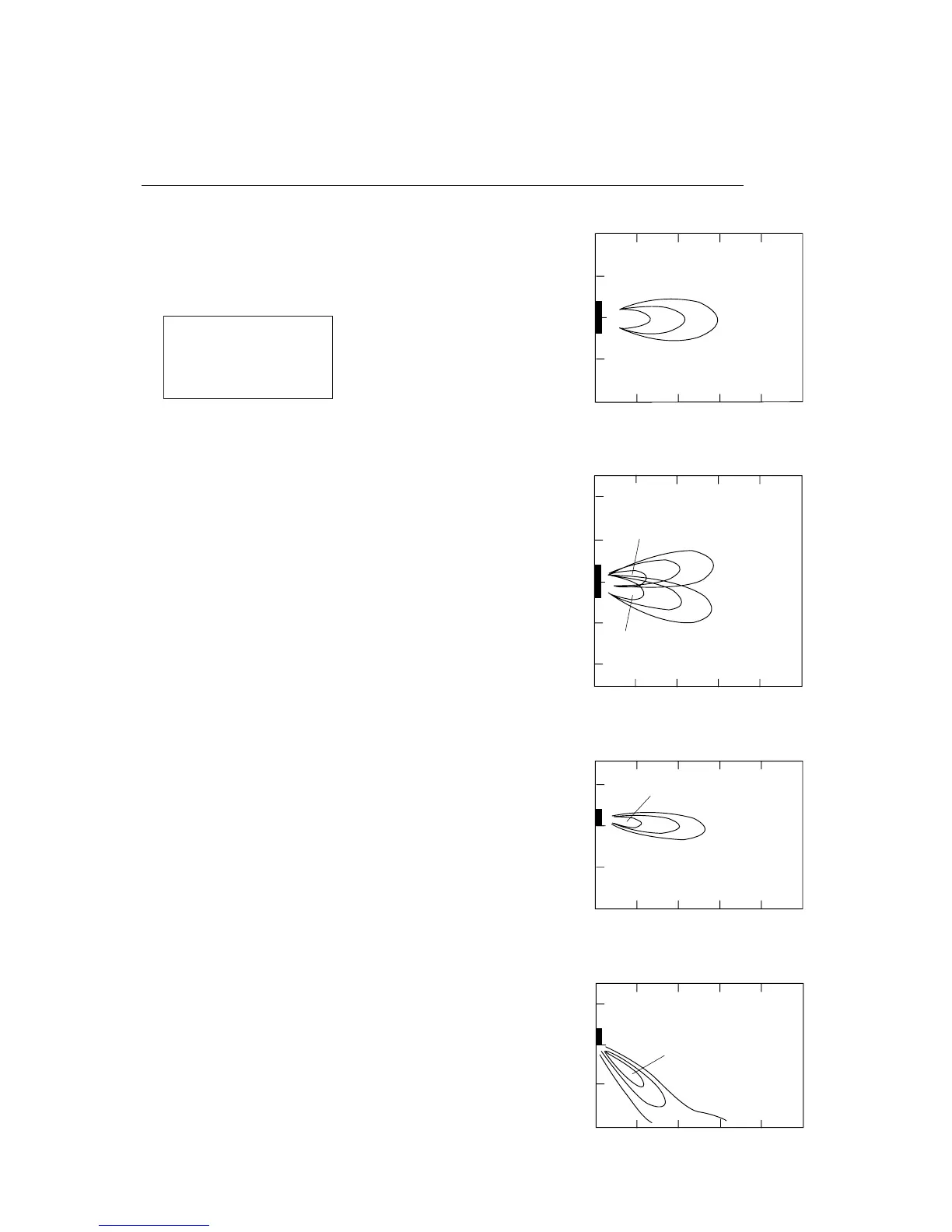

Fig. 3.4.3-1
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
Fig. 3.4.3-2
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Right & Left
Fig. 3.4.3-3
TOP VIEW
FLOW CONTROL PANEL : Horiz.
LOUVER : Center
Fig. 3.4.3-4
TOP VIEW
FLOW CONTROL PANEL : Vert.
LOUVER : Center
Note :
Fan speed : Hi
Operation : FAN
Voltage : 240V
