– 73 –

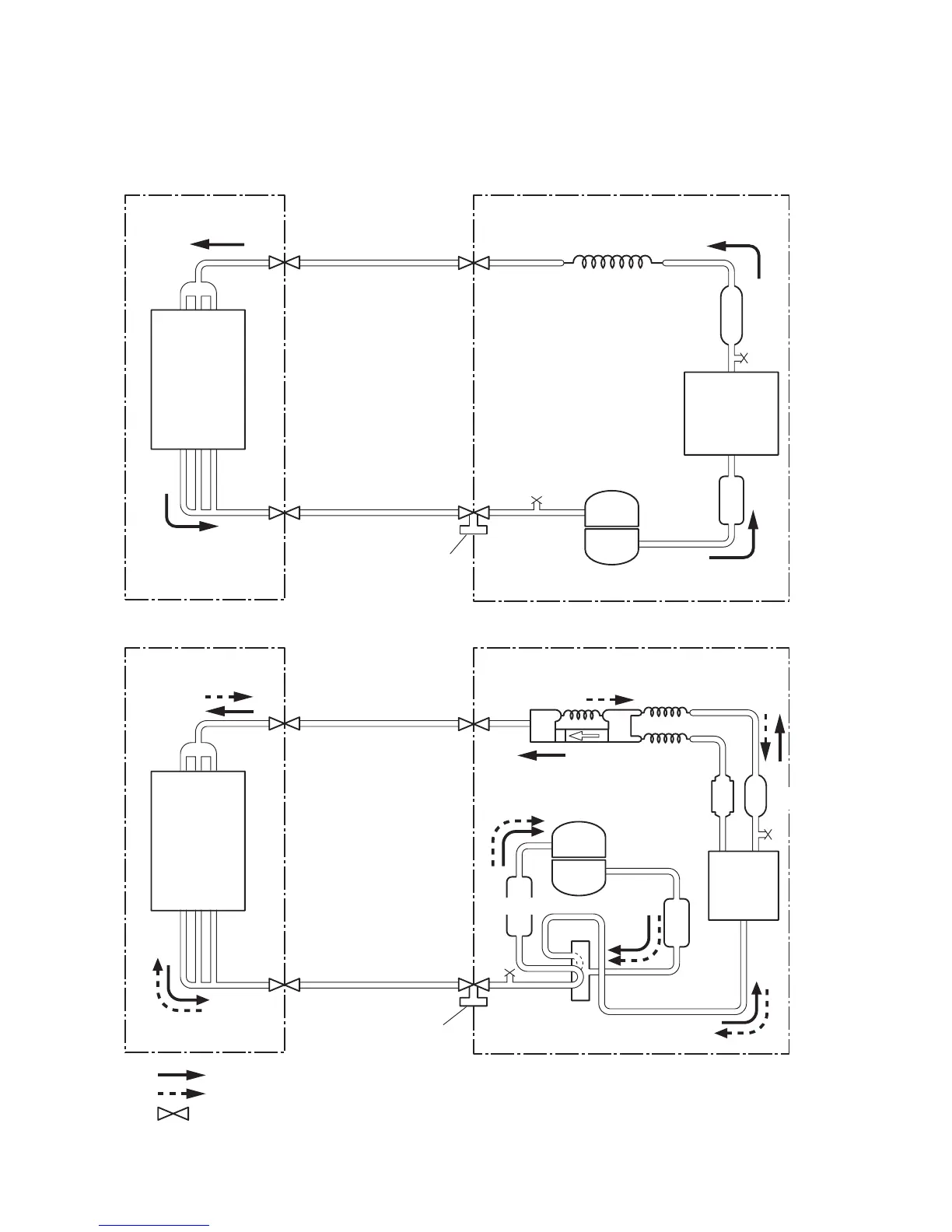

Refrigerant pipe
Distributor
Distributor
ø 12.7mm(1/2")
Refrigerant pipe
ø 6.35mm(1/4")
Capillary tube
Charging valve
Compressor
Dryer
DryerStrainer
Muffler
Muffler
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
Evaporator
Refrigerant pipe
ø 12.7mm(1/2")
Refrigerant pipe
ø 6.35mm(1/4")
Charging valve
Cooling
Heating
: Flare coupling
4-Way
valve
Compressor
Capillary tube
OUTDOOR UNITINDOOR UNIT
Condenser
Accumulator
Models : AS ✽ 17A / AO ✽ 17AB
Models : AS ✽ 17R / AO ✽ 17RB
