En-10

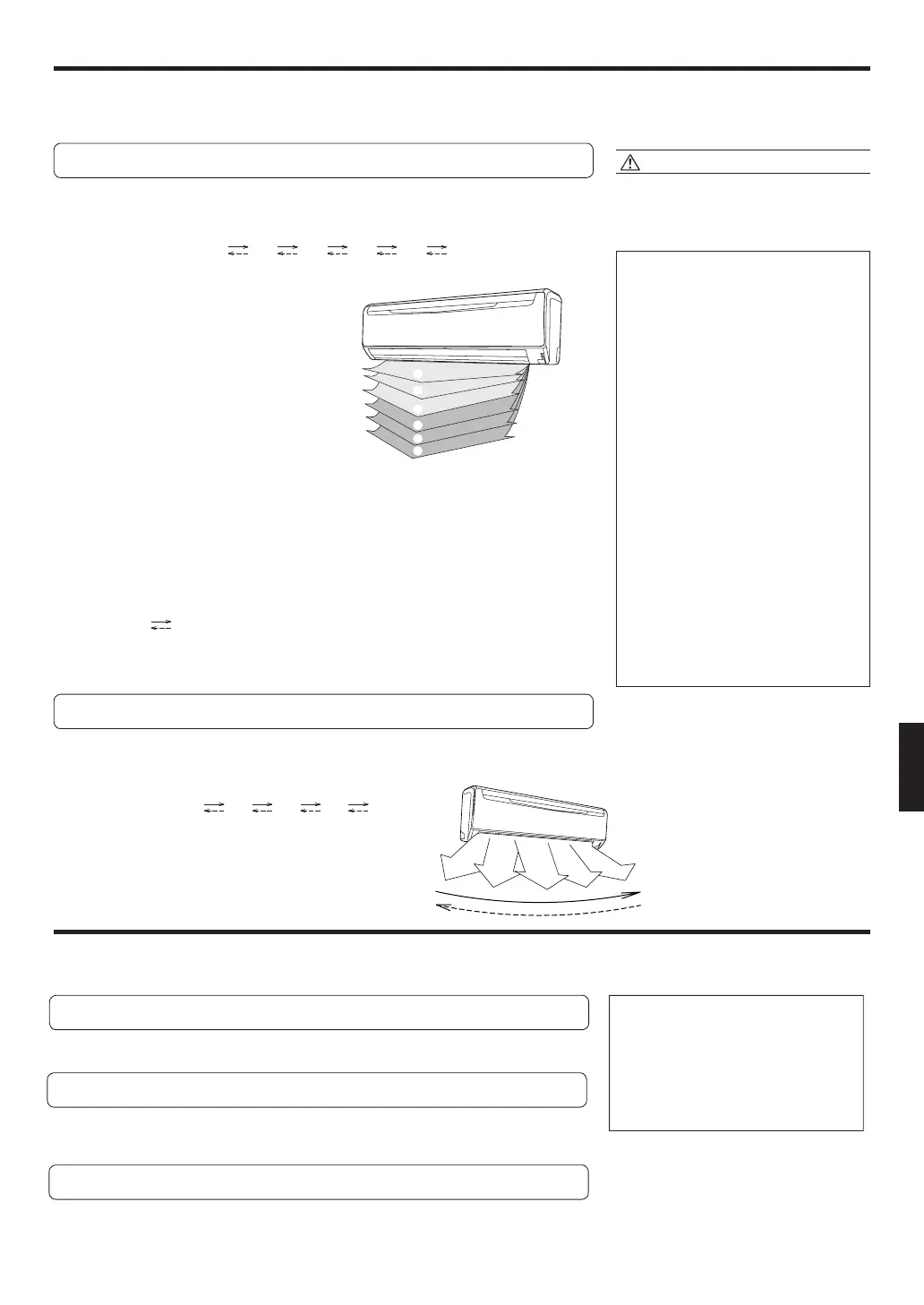

ADJUSTING THE DIRECTION OF AIR CIRCULATION
● Adjust the up, down, left, and right AIR directions with the AIR DIRECTION buttons on the Remote Control Unit.
● Use the AIR DIRECTION buttons after the Indoor Unit has started operating and the airfl ow-direction louvers have stopped
moving.
DANGER!
● Never place fi ngers or foreign objects inside
the outlet ports, since the internal fan oper-
ates at high speed and could cause personal
injury.
● Always use the Remote Control Unit’s
SET button to adjust the vertical airfl ow
louvers. Attempting to move them manu-
ally could result in improper operation; in
this case, stop operation and restart. The
louvers should begin to operate properly
again.
● During use of the Cooling and Dry
modes, do not set the Air Flow Direc-
tion Louvers in the Heating range (4
-
6) for long periods of time, since
water vapor may condense near the
outlet louvers and drops of water may
drip from the air conditioner. During
the Cooling and Dry modes, if the Air
Flow Direction Louvers are left in the
heating range for more than 30 min-
utes, they will automatically return to
position 3.
● When used in a room with infants,
children, elderly or sick persons, the air
direction and room temperature should
be considered carefully when making
settings.
Vertical Air Direction Adjustment
Press the SET button (Vertical) (Fig. 6 S).
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4 5 6
Types of Air fl ow Direction Setting:
1,2,3 : During Cooling/Dry modes
4,5,6 : During Heating mode
The Remote Control Unit’s display does
not change.
● Use the air direction adjustments within the ranges shown above.
● The vertical airfl ow direction is set automatically as shown, in accordance with the type
of operation selected.
During Cooling/Dry mode : Horizontal fl ow 1
During Heating mode : Downward fl ow 5
● During AUTO mode operation, for the fi rst minute after beginning operation, airfl ow will
be horizontal 1; the air direction cannot be adjusted during this period.
● Direction 1
2
Only the direction of the Air Flow Direction Louver changes; the direction of the Power
Diffuser does not change.
1
2
3
4
5
6
Horizontal Air Direction Adjustment
Press the SET button (Horizontal)(Fig. 6 T).
● Each time the button is pressed, the air direction range will change as follows:
1
2 3 4 5
1
2
3
4
5
The remote control unit’s dis-
play does not change.
10°C HEAT OPERATION
• The room temperature can be maintained at 10°C by pressing the 10°C HEAT button
(Fig.6 Y) so as to prevent the room temperature from falling too far.
To use 10°C HEAT OPERATION
Press the 10°C HEAT button (Fig.6 Y)
To stop 10°C HEAT OPERATION
Press the START/STOP button (Fig.6 R)
Then the operation stops.
About the 10°C HEAT OPERATION
• The Heating mode will not operate if the room temperature is high enough.
While 10˚C HEAT OPERATION is in
progress, the following operations/
features cannot be used
• TIMER
• SLEEP
• FAN speed
• Swing
9315161192-03.indb 109315161192-03.indb 10 2/26/2013 11:02:12 AM2/26/2013 11:02:12 AM
