En-3
Fig. 6 Remote Control Unit
J SLEEP button
K MODE button
L SET TEMP. button (
/ )
M Signal Transmitter
N TIMER MODE button
O TIMER SET (
/ ) button
P FAN button
Q START/STOP button
R SET button (Vertical)
S SET button (Horizontal)
T SWING button
U RESET button
V TEST RUN button
This button is used when installing the condi-
tioner, and should not be used under normal
conditions, as it will cause the air conditioners
thermostat function to operate incorrectly.
If this button is pressed during normal opera-
tion, the unit will switch to test operation mode,
and the Indoor Unit’s OPERATION Indicator
Lamp and TIMER Indicator Lamp will begin
to ash simultaneously.
To stop the test operation mode, press the
START/STOP button to stop the air condi-
tioner.
W CLOCK ADJUST button
X Remote Control Unit Display (Fig. 7)
Y Transmit Indicator
Z Clock Display
[ Operating Mode Display
\ Timer Mode Display
] Fan Speed Display
` Temperature SET Display
a SLEEP Display
b SWING Display

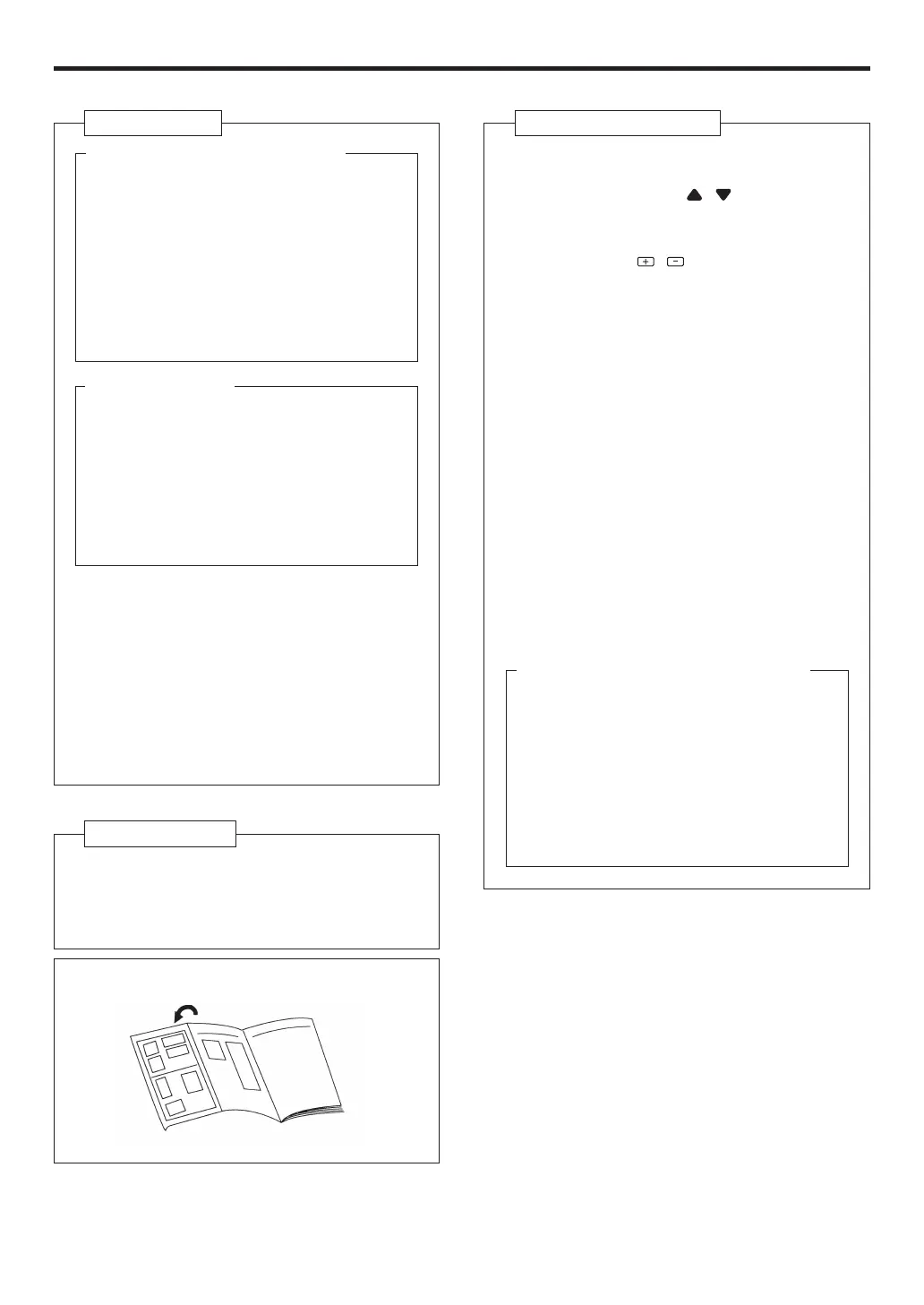

NAME OF PARTS
Refer to the folded out page on the cover.
Fig. 1 Indoor Unit
1 Operating Control Panel (Fig. 2)
2 MANUAL AUTO button
When kept on pressing the MANUAL AUTO
button for more than 10 seconds, the forced
cooling operation will start.
The forced cooling operation is used at the
time of installation.
Only for authorized service personnel’s use.
When the forced cooling operation starts by
any chance, press the START/STOP button
to stop the operation.
3 Indicator (Fig. 3)
4 Remote Control Signal Receiver
5 OPERATION Indicator Lamp (red)
6 TIMER Indicator Lamp (green)
If the TIMER indicator lamp ashes when the
timer is operating, it indicates that a fault has
occurred with the timer setting (See Page 14
Auto Restart).
7 SUPER QUIET Indicater Lamp (orange)
8 Intake Grille (Fig. 4)
9 Front Panel
0 Air Filter
A Air Flow Direction Louver
B Power Diffuser
C Right-Left Louver
(behind Air Flow Direction Louver)
D Drain Hose
E Air Cleaning Filter
Fig. 5 Outdoor Unit
F Intake Port
G Outlet Port
H Pipe Unit
I Drain port (bottom)
9315345332-03_OM.indb 39315345332-03_OM.indb 3 2/25/2013 10:09:48 AM2/25/2013 10:09:48 AM
