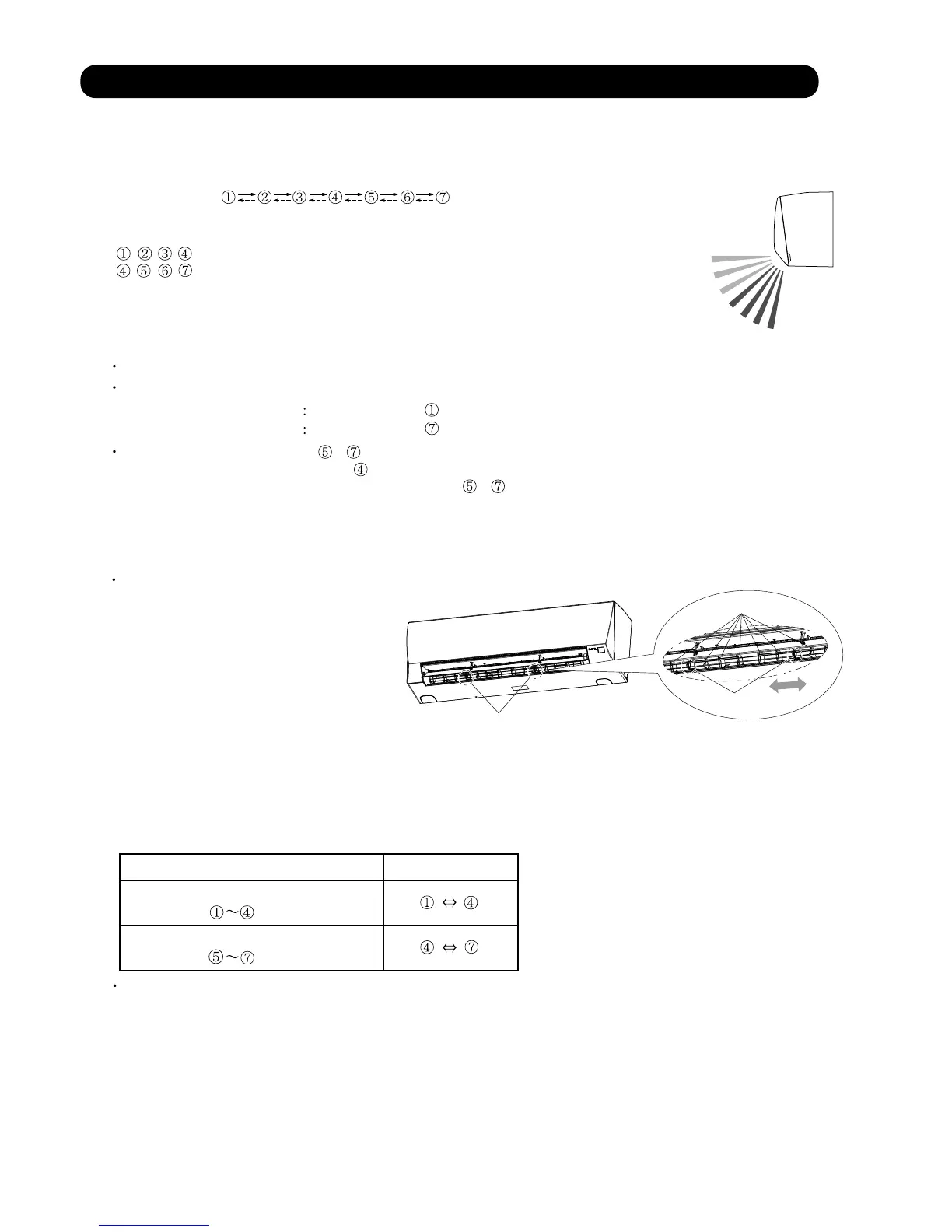

7. LOUVER CONTROL
1. VERTICAL LOUVER CONTROL
3. SWING OPERATION
Each time the button is pressed, the air direction range will change as follow:
(Function Range)
01-07
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode Horizontal flow
Heating mode Downward flow
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Table10 : Swinging Range)
Fig.8 : Air Direction Range
Cooling / Dry mode
Fan mode ( )
Types of Air flow Direction Setting:
, , , : During Cooling/Dry modes
, , , : During Heating
The Remote Controller's display does not change.
Use the air direction adjustments within the ranges shown above.
If you set the angle to position ~ for more than 30 minutes in Cooling or Dry mode,
they automatically return to position .
In Cooling or Dry mode, if the angle is set to position ~ for many hours,
condensation may be formed, and the drips may wet your property.
Range
Heating
mo
de
Fa
n
m
od
e
(
)
The SWING operation may stop temporarily when the air conditioner’s fan is not operating,
or when operating at very low speeds.
2. ADJUST THE RIGHT-LEFT LOUVERS
Move the Right-Left louvers to adjust air flow in the direction you prefer.
Knob (2 places)
To select Vertical Airflow Swing Operation
To select Horizontal Airflow Swing Operation
(No function)
1
2
3
4
5
6
7
Right-Left Louvers
Knob
