54
2010.06.30
INDOOR UNIT
COMPACT CASSETTE
AUU9RLF
AUU12RLF
AUU18RLF

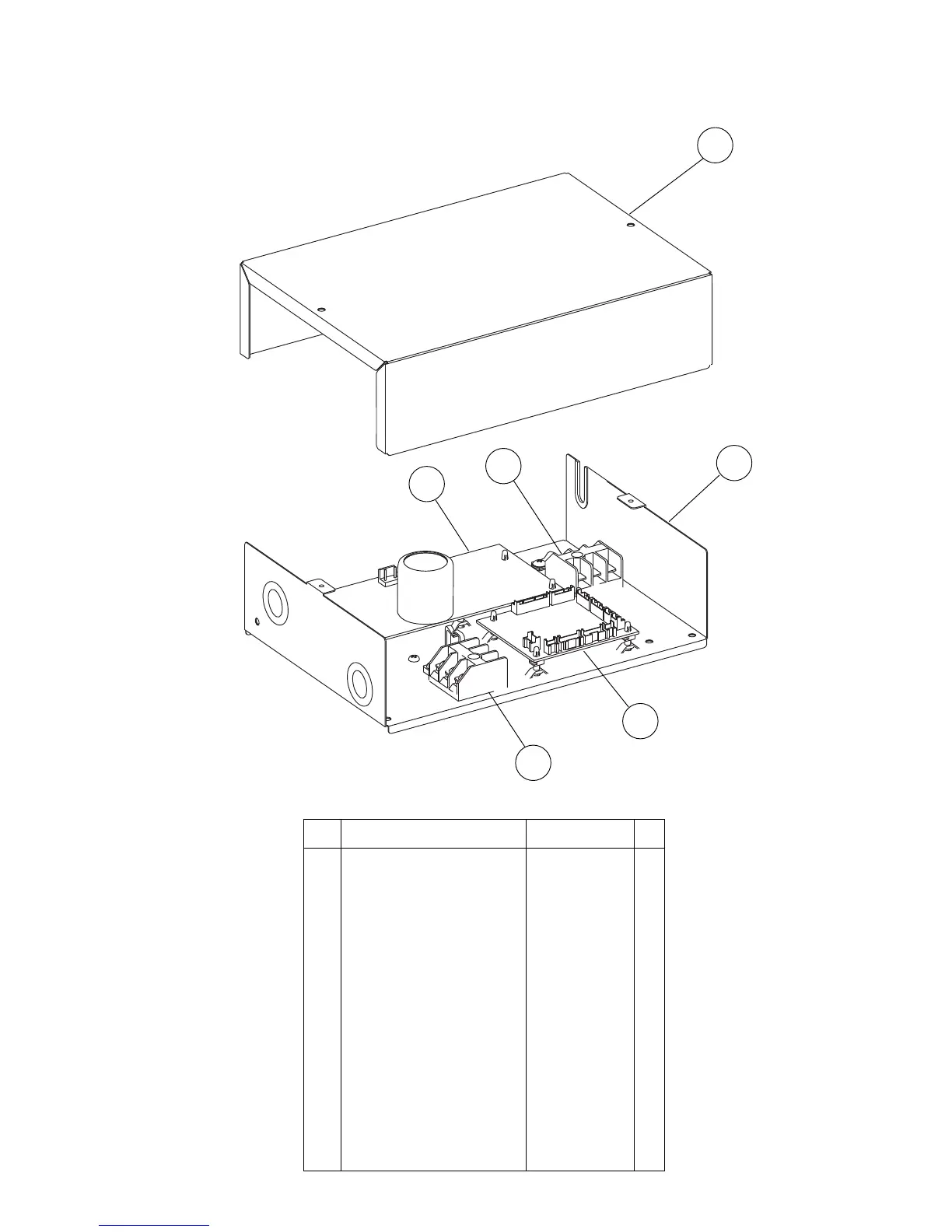

Control unit
61
62
63
64
65
66
61 Control Box Cover 9375512019
62 Control Box A Assy 9379250016
63
63
63
Controller PCB Assy (9) 9707393668
Controller PCB Assy (12) 9707393712
Controller PCB Assy (18) 9707393729
64 Power Supply PCB Assy 9707398236
65 Terminal 9306489045
66 Terminal 9703345012
-- Pipe Thermistor 9703297014
-- Room Thermistor 9900502003
-- Remote Control 9318593006
