Fujitsu ASU18RLQ Service Manual

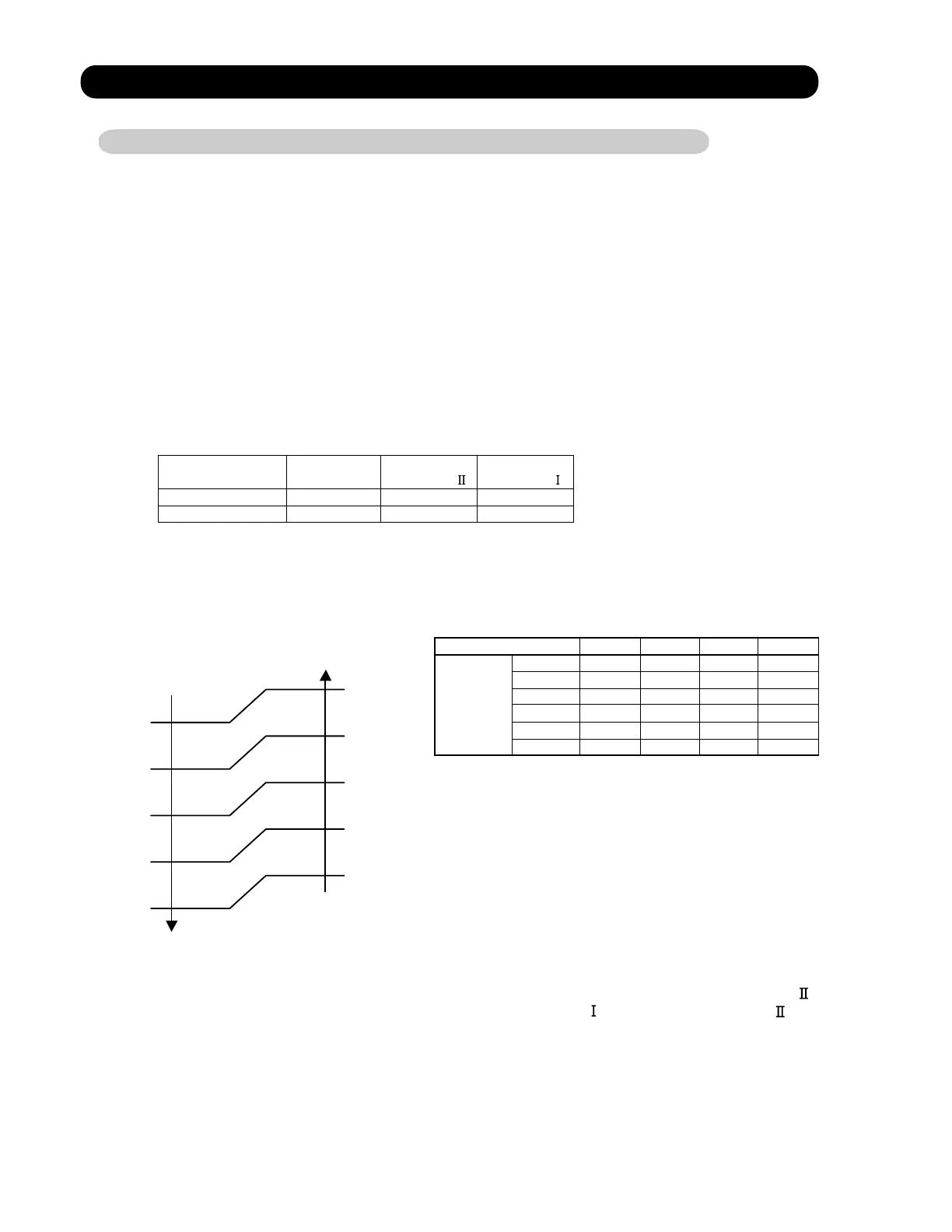

( Fig. 1 : Limit of Maximum Frequency based on Outdoor Temperature )
1. COOLING OPERATION
1-1 COOLING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is 4°F(2°C) higher than a set temperature, the compressor operation
frequency will attain to maximum performance.
* If the room temperature is 5°F(2.5°C) lower than a set temperature, the compressor will be
stopped.
* When the room temperature is between +4°F(+2°C) to -5°F(-2.5°C) of the setting temperature,
the compressor frequency is controlled within the range shown in Table1.
However, the maximum frequency is limited in the range shown in Figure 1 based on the
fan speed mode and the outdoor temperature.
minimum
frequency
maximum
frequency
maximum
frequency
ASU15RLQ 18Hz 70Hz 90Hz
Outside air Outside air
temperature temperature
97°F(36°C)
A zone
93°F(34°C)
90°F(32°C)
B zone
86°F(30°C)
70°F(21°C)
C zone
66°F(19°C)
D zone
Hi Me Lo Quiet
( Table 1 : Compressor Frequency Range )
When the compressor operates for 30 minutes continuously at over the maximum frequency ,
the maximum frequency is changed from Maximum Frequency to Maximum Frequency .
The room temperature is controlled 2°F(1°C) lower than the setting temperature for 40 minutes
after starting the operation.
After 40 minutes, it is controlled based on the normal setting temperature.
05-01
E zone
F zone
50°F(10°C)
32°F(0°C)
54°F(12°C)
36°F(2°C)
ASU18RLQ 18Hz 70Hz 90Hz
15/18RLQ A zone
B zone
C zone
D zone
E zone
F zone
90Hz 45Hz 42Hz 30Hz
90Hz 45Hz 42Hz 30Hz
90Hz 45Hz 42Hz 30Hz
58Hz 38Hz 34Hz 24Hz
58Hz 38Hz 34Hz 24Hz
58Hz 38Hz 34Hz 24Hz
