Fujitsu ASU18RMLQ User Manual

REPLACEMENT PARTS
03-19

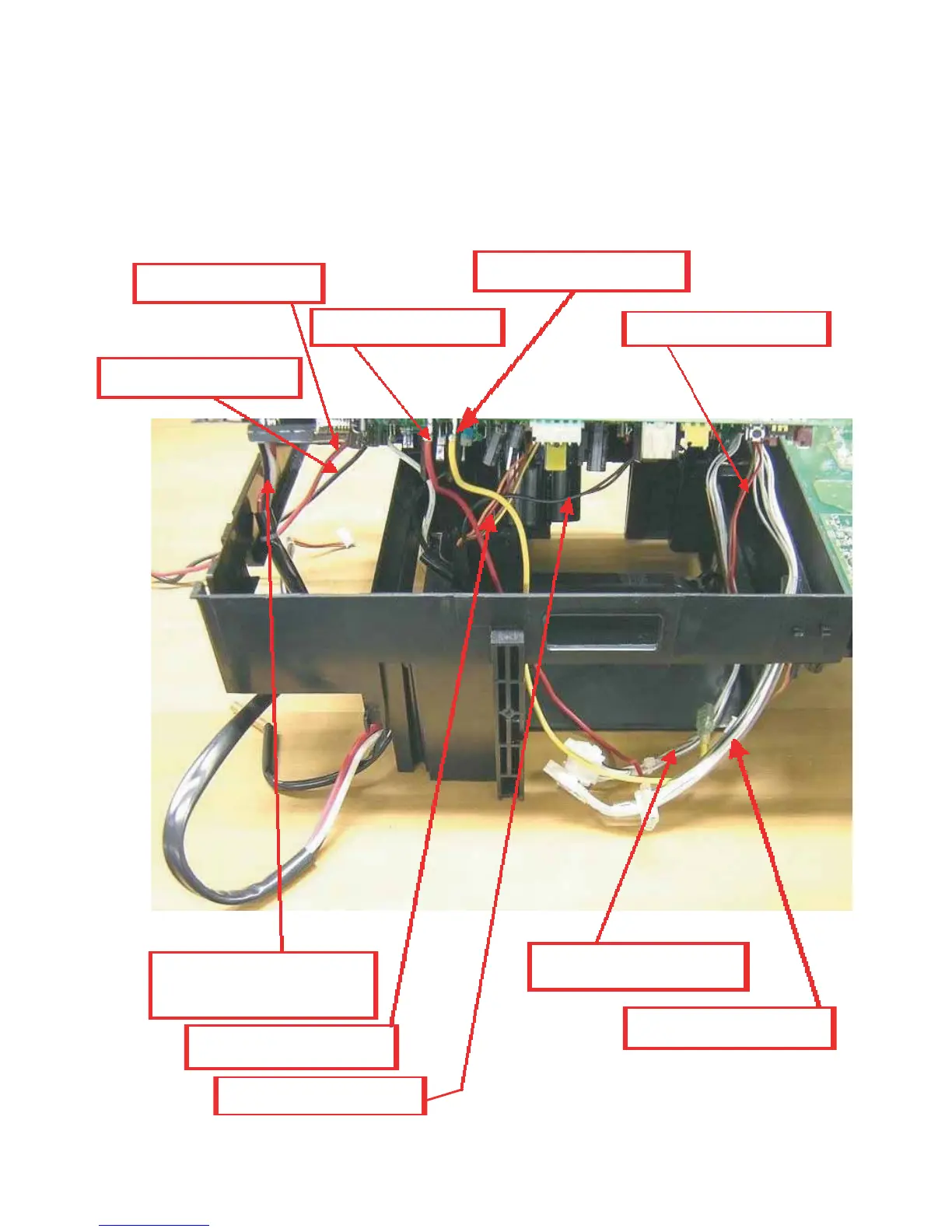

Fig.3
CN407(MAIN PCB)
WIRE WITH CONNECTOR
W303 BLACK,W304 WHITE,
W305 RED(MAIN PCB)
WIRE WITH CONNECTOR
HEATSINK THERMISTOR
W200 RED (MAIN PCB)
WIRE WITH TERMINAL
W201 YELLOW(MAIN PCB)
WIRE WITH TERMINAL
W17 BLACK (MAIN PCB)
WIRE WITH TERMINAL
W16 RED (MAIN PCB)
WIRE WITH TERMINAL
CN39(MAIN PCB)
WIRE WITH CONNECTOR
CN1 (MAIN PCB)
WIRE WITH CONNECTOR
CN50(MAIN PCB)
WIRE WITH CONNECTOR
REGULATIONS
MODEL : AOU24RML
As shown in Fig.3, pull out the wires.
