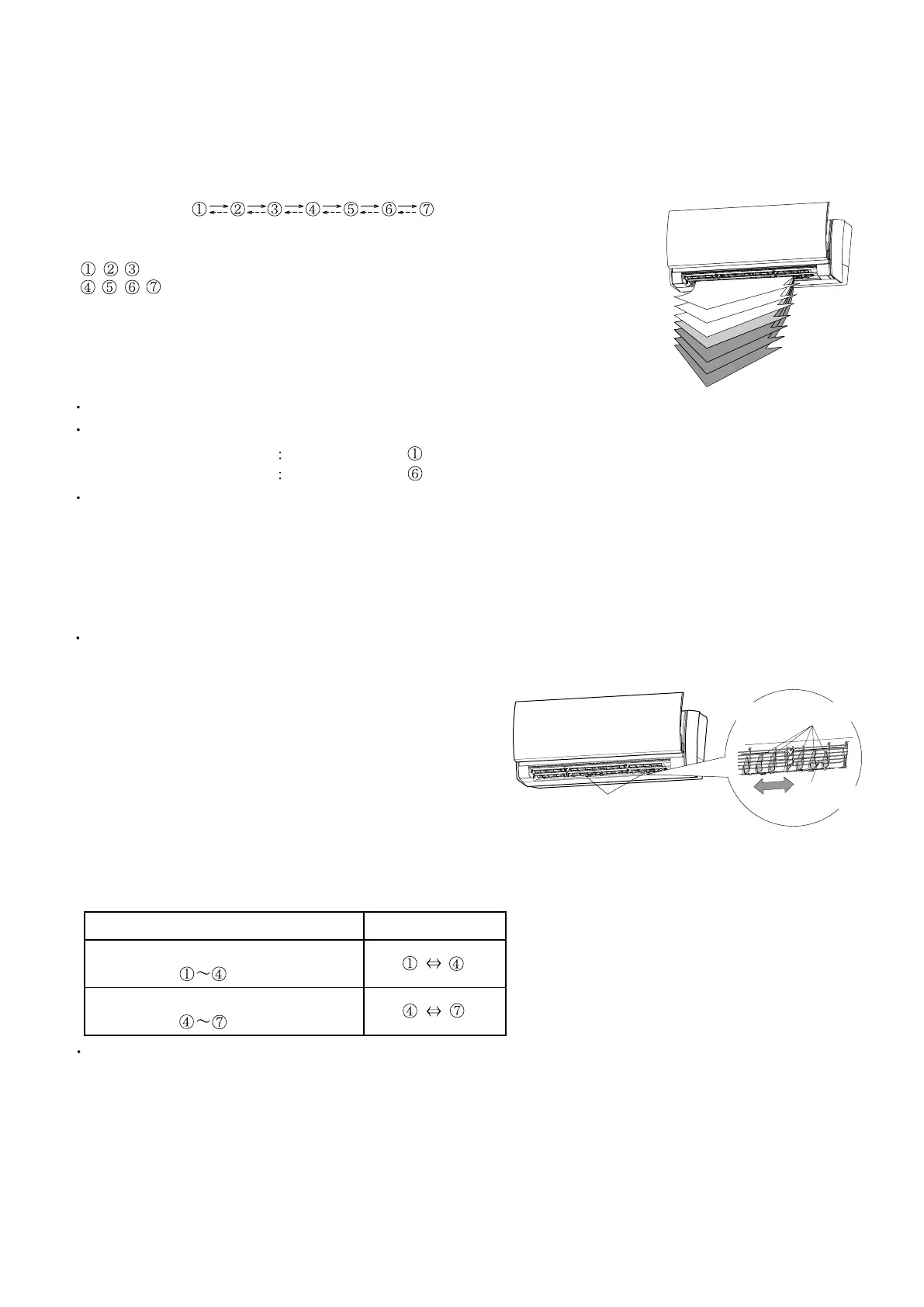

1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follow:
(Function Range)
01-12
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Dry mode Horizontal flow
Heating mode Downward flow
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Fig.9 : Virtical Air Direction Range)
Cooling / Dry mode
Fan mode ( )
Types of Air flow Direction Setting:
, , : During Cooling/Dry modes
, , , : During Heating
The Remote Controller's display does not change.
During AUTO mode operation, for the first a few minutes after beginning operation,
air-flow will be horizontal 1; the air direction cannot be adjusted during this period.
The air flow direction setting will temporarily become 1 when the temperature of the air -flow is
low at the start of the Heating mode.
Range
Heating
mo
de
Fa
n
m
od
e
(
)
The SWING operation may stop temporarily when the air conditioner’s fan is not operating,
or when operating at very low speeds.
1
2. ADJUST THE RIGHT-LEFT LOUVERS
Move the Right-Left louvers to adjust air flow in the direction you prefer.
Knob (2 places)
Right-Left Louvers
To select Vertical Airflow Swing Operation
(No function)
For Wall Mounted Type < ASU9/ 12/ 15RLS2 >
To select Horizontal Airflow Swing Operation
Knob
7
6
5
4
3
2
Use the air direction adjustments within the ranges shown above.
(Table 3 : Swinging Range)
Cooling /
3. SWING OPERATION
