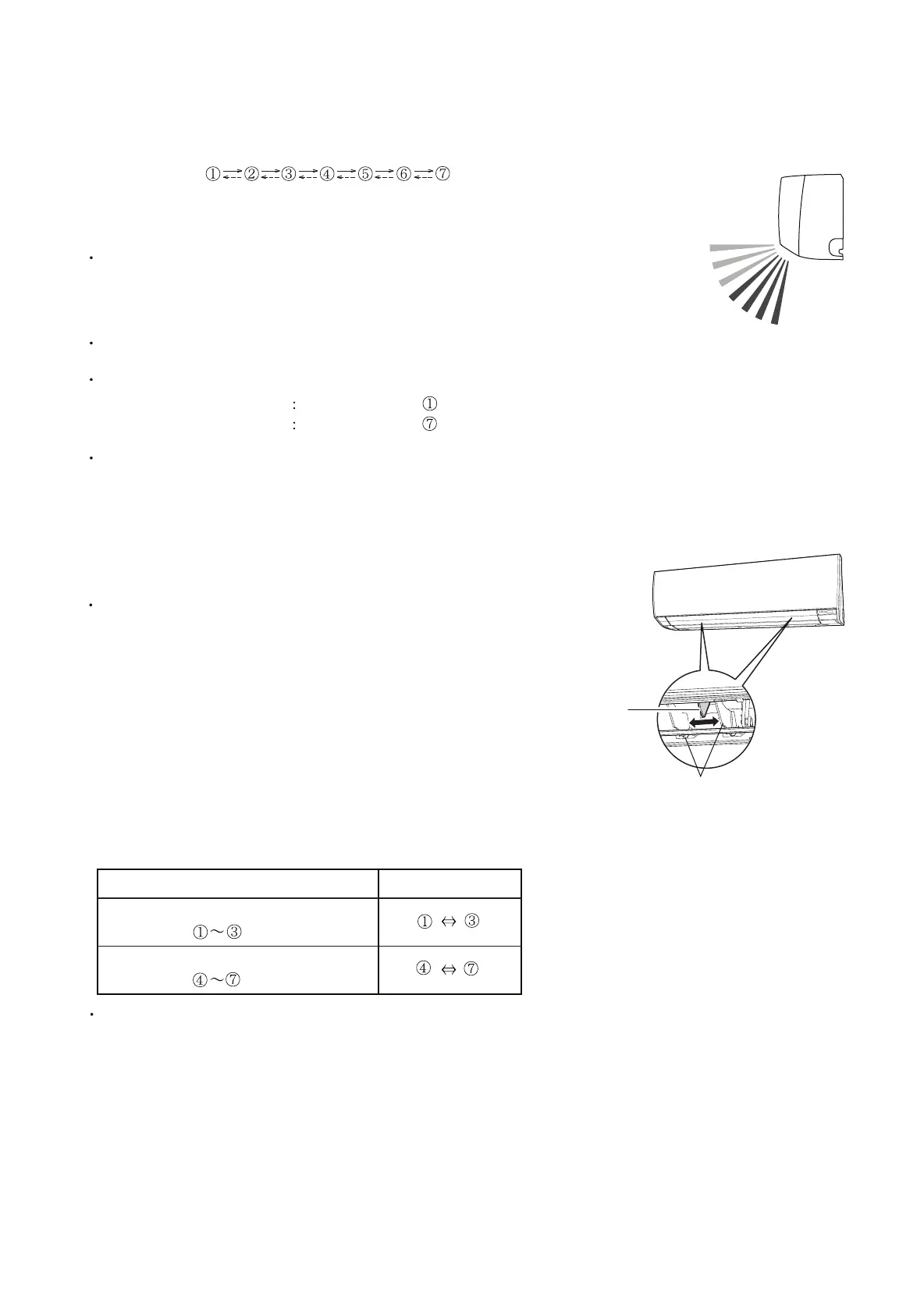

1. VERTICAL LOUVER CONTRO L
3. SWING OPERATION
Each time the button is pressed, the air direction range will change as follow:
(Function Range)
01-13
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode
Horizontal flow
Heating mode Downward flow
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Table 4 : Swinging Range)
(Fig.10 Virtical Air Direction Range)
Cooling / Dry mode
Fan mode ( )
The Remote Controller's display does not change.
Use the air direction adjustments within the ranges shown above.
If you set the angle to position 4.7 for more than 30 minutes in COOL or
DRY mode, they automatically return to position 3.
In COOL or DRY mode, if the angle is set to position 4.7 for many hours,
condensation may be formed, and the drips may wet your property.
During AUTO or Heating mode o
peration, for the first a few minutes after beginning operation,
air-flow will be horizontal 1; the air direction cannot be adjusted during this period.
The air flow direction setting will temporarily become 1 when the temperature of the air -flow is
low at the start of the Heating mode.
Range
Heating mode
Fan mode ( )
The SWING operation may stop temporarily when the air conditioner’s fan is not operating,
or when operating at very low speeds.
2. ADJUST THE RIGHT-LEFT LOUVERS
Move the Right-Left louvers to adjust air flow
in the direction you prefer.
To select V ertical Airflow Swing Operation
To select Horizontal Airflow Swing Operation
(No function)
Right-Left Louvers
1
2
3
4
5
6
7
Knob
For Wall Mounted Type < ASU7/ 9/ 12/ 15 RLF1 >
