02 - 05
)
-
OUTDOOR UNIT
AOU9-15RL
OUTDOOR UNIT
AOU9-15RL

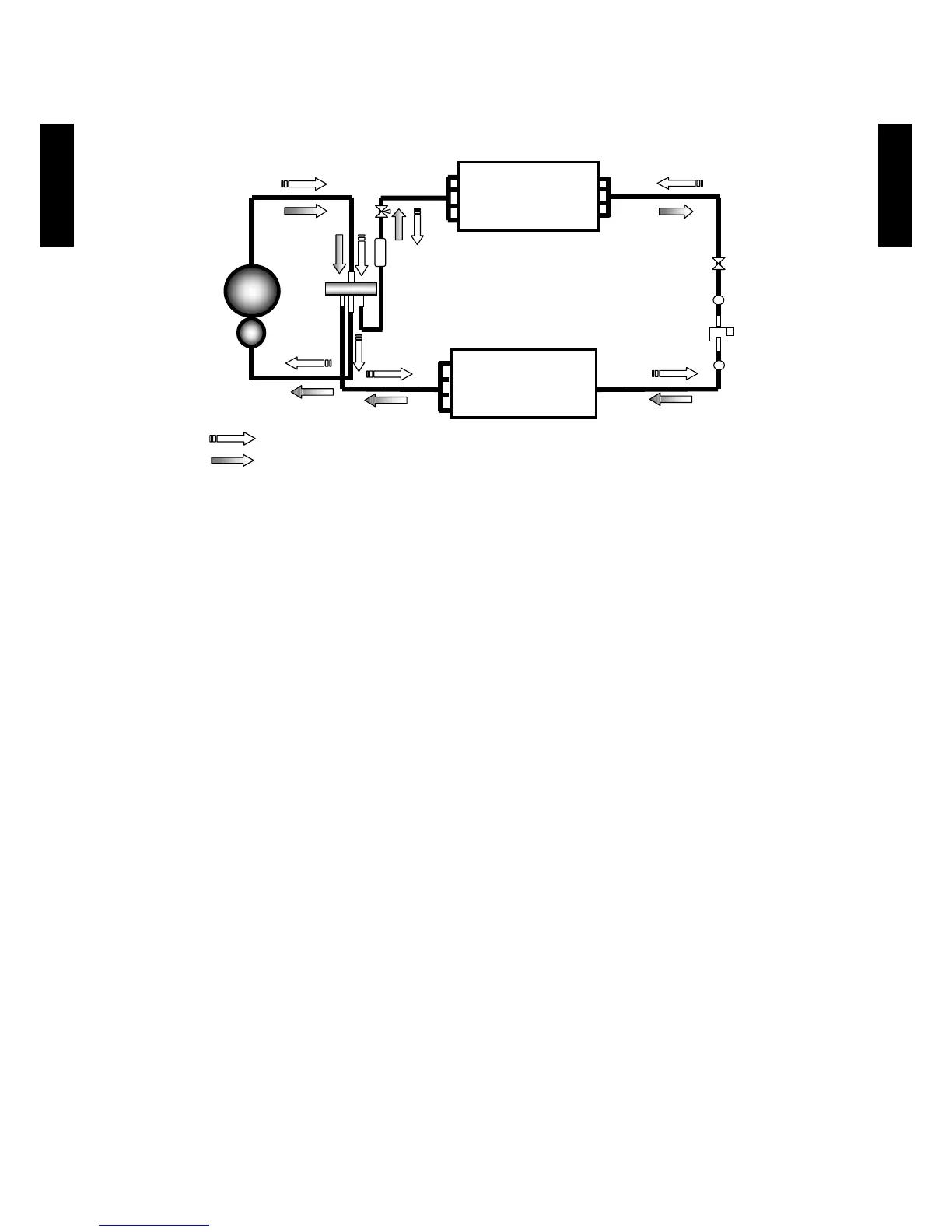

REFRIGERANT CIRCUIT3.
MODEL
:AOU9RLFW
Heat exchanger
(INDOOR)
Muffler 2-Way valve
Compressor
Strainer
Heat exchanger
Expansion valve
(OUTDOOR)
Strainer
Cooling
Heating
Refrigerant pipe diameter
Liquid:1/4"(6.35mm)
Gas:3/8"(9.52mm)
4-Way
valve
3-Way
valve
