Fujitsu ASU9RMLQ - INSTALLATION PLACE; MAINTENANCE HOLE

-
(
01 - 19
)
-
MULTI TYPE 3-4ROOMS TYPE MULTI TYPE 3-4ROOMS TYPE

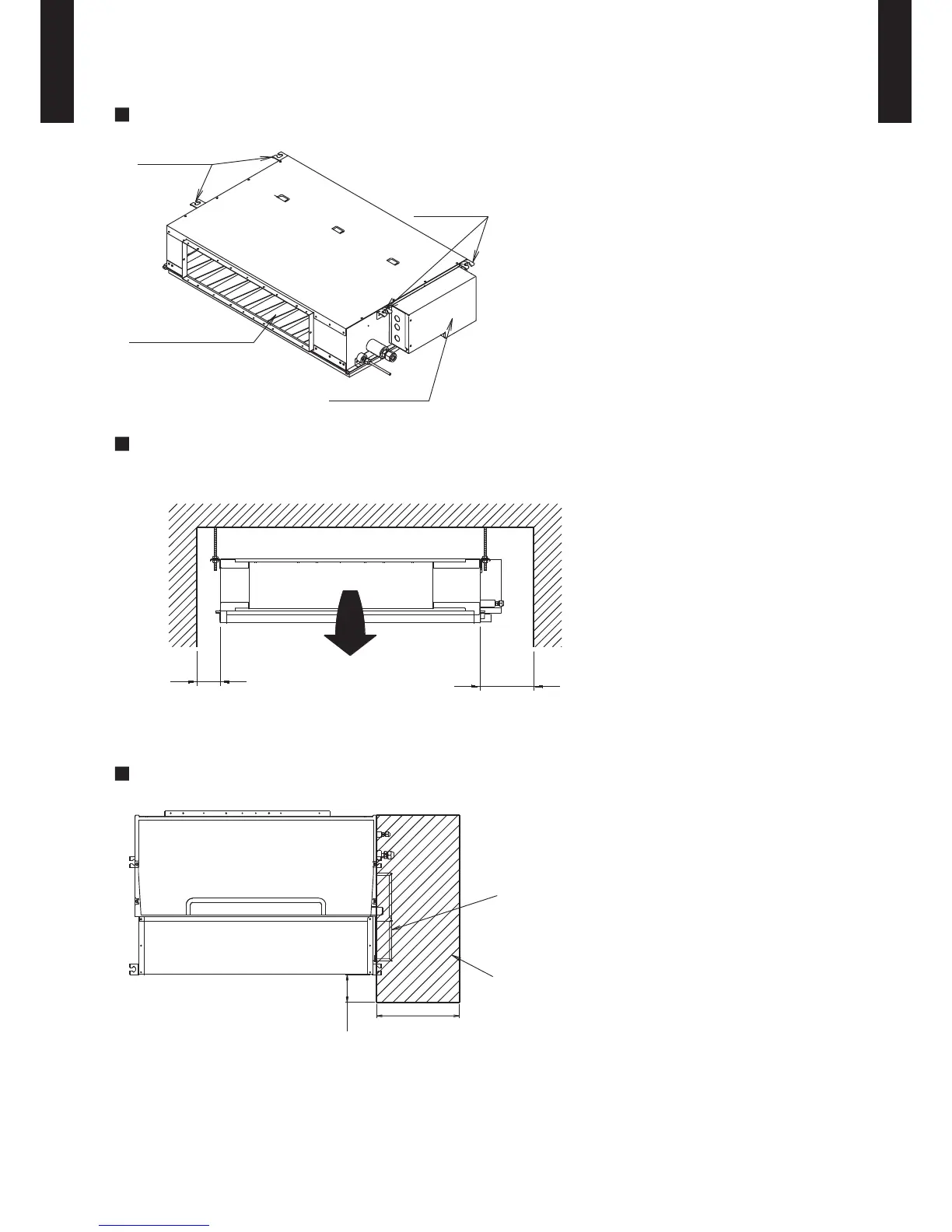

BIRD'S-EYE VIEW
BRACKETS
CONTROL BOX
AIR FLOW OUTLET
BRACKETS
INSTALLATION PLACE
[Unit : Inch (mm)]
6 (150)
or more
12 (300)
or more
Indoor Unit
Right
side
Left
side
Strong and durable ceiling
MAINTENANCE HOLE
Maintenance hole
4 (100)
or more
12 (300)
or more
Control box
Unit
[Unit : Inch (mm)]
