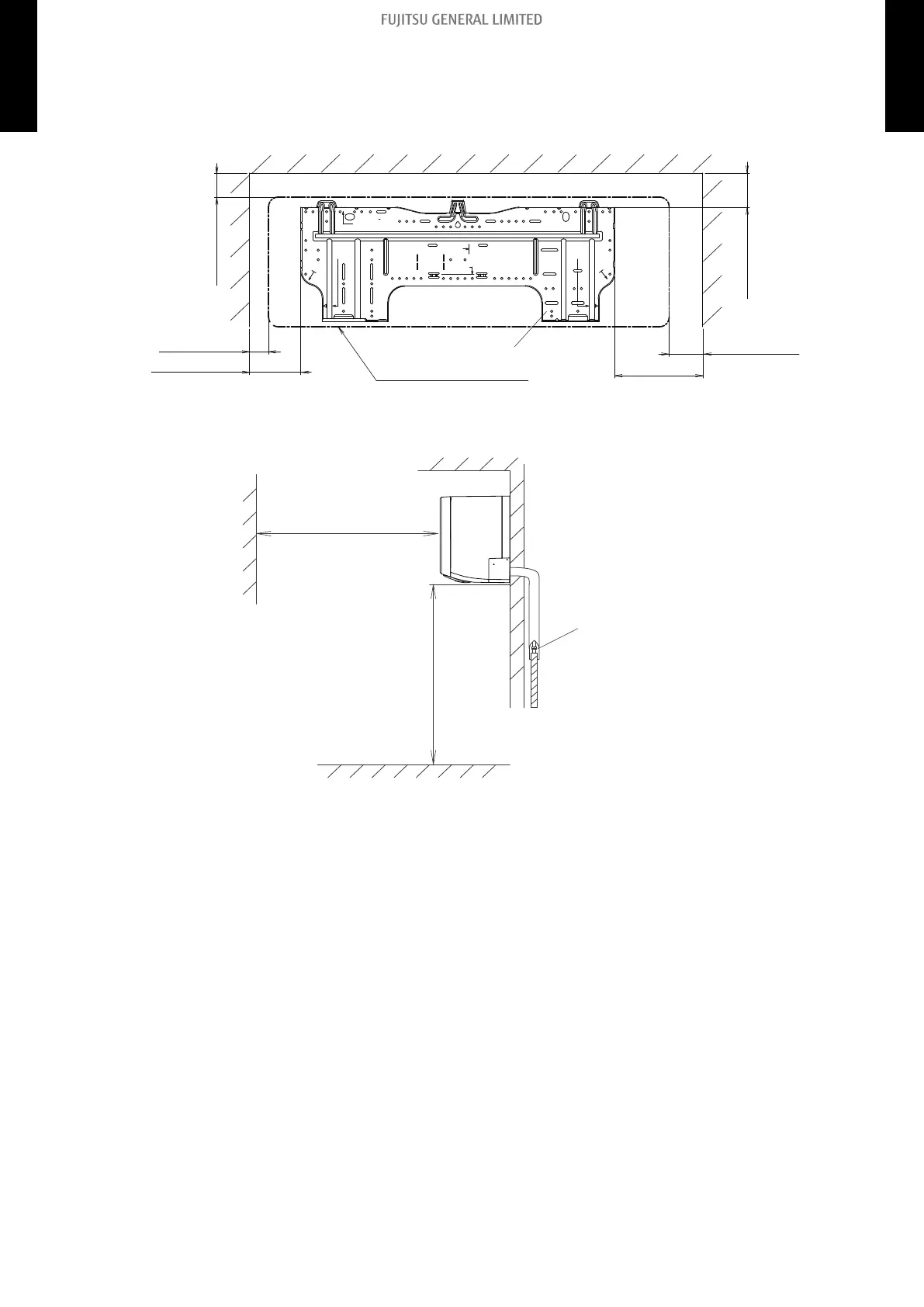

Installation space requirement
Provide sufficient installation space for product safety.
Unit: in (mm)
2 (50) or more
3 (71) or more
2 (40) or more
3 (70) or more
5 (107) or more
60 (1,500) or more
71 (1,800) or more
8 (183) or more
Wall hook bracket
Outline of the indoor unit
A
A: Install so that the flare connection part is outdoors.
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION
