Fujitsu ASUH30LPAS - 2. Dimensions

2. Dimensions
2-1. Models: ASUH30LPAS and ASUH36LPAS
Unit: in (mm)

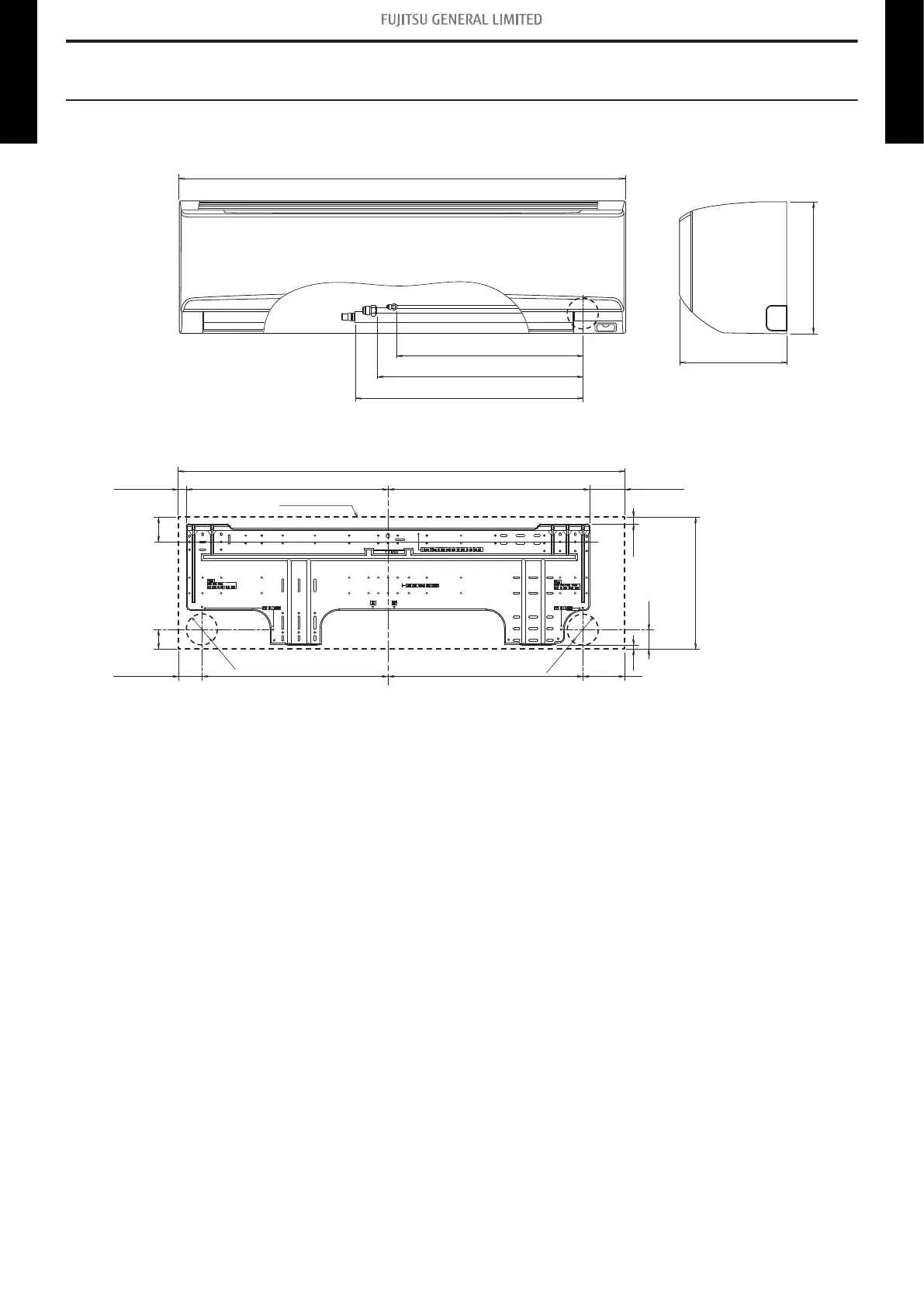

Outline of unit
20-1/2 (520)
3-9/16 (90)
13/16 (20)
2-1/2 (64)
18-7/8 (479)2-6/16 (61)
4-1/4
(108)19-6/8 (502)
20-1/2 (520)
1-15/16 (50)
1-15/16
(50)
7/16 (11)
13-6/16 (340)
ø80
ø80
13-6/16
(340)
11 (280)
10/16
(16)
45-1/4 (1,150)
19 (483)
21-7/16 (544)
22-1/16 (560)
45-1/4 (1,150)
- 4 -
2-1. Models: ASUH30LPAS and ASUH36LPAS
2. Dimensions
WALL MOUNTED ASUH30-36LPAS WALL MOUNTED ASUH30-36LPAS
