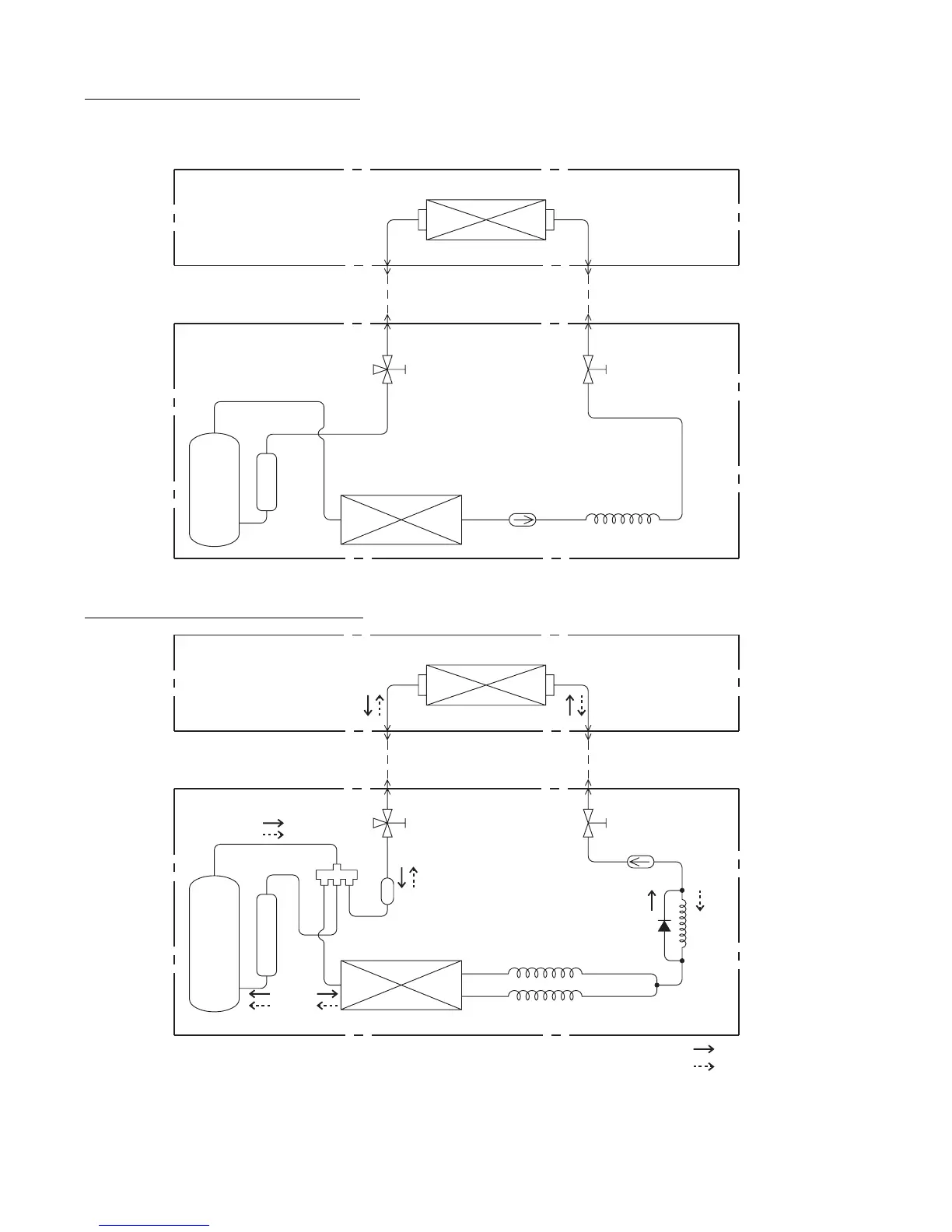

– 5 –
3-Way valve
(with charging port)
Condenser
Dryer
Capillary tube
2-Way valve
(Flare connection)
Gas pipe (9.52 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
[ INDOOR UNIT ]
[ OUTDOOR UNIT ]
[ Connecting pipe ]
Evaporator
Com-
pressor
3-Way valve
(with charging port)
Muffler
4-Way
valve
Condenser
Dryer
Capillary tube
for heating and cooling
Heating
Cooling
2-Way valve
Check
valve
Capillary tube heating
(Flare connection)
Gas pipe (9.52 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
[ INDOOR UNIT ]
[ OUTDOOR UNIT ]
[ Connecting pipe ]
Evaporator
Com-
pressor
Models : ASY12FSACW / AOY12FSAC
Models : ASY12USACW / AOY12USAC
