– 4 –

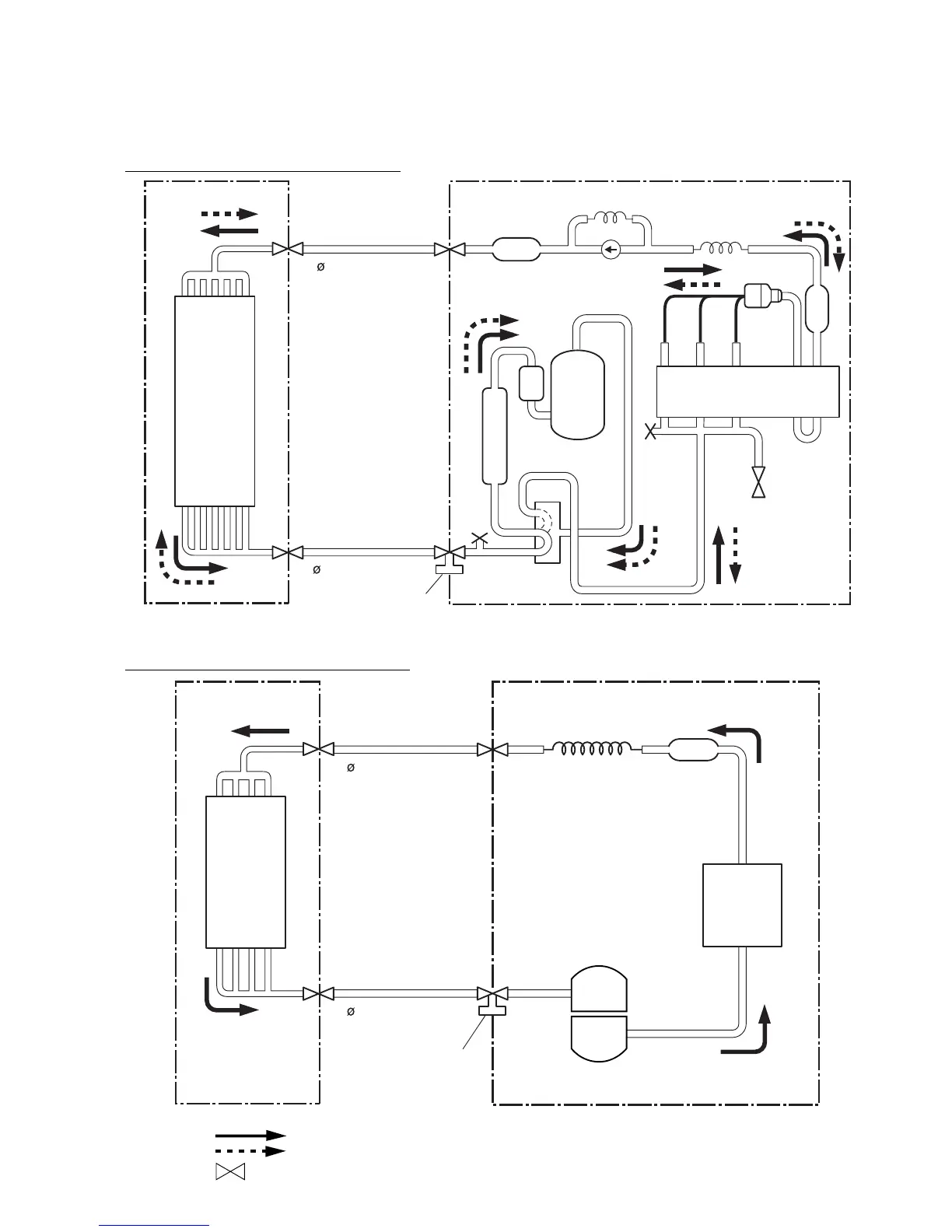

Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Strainer
Strainer
Charging valve
Compressor
4-Way valve
Accumulator
OUTDOOR UNIT
Condenser
Distributor
Check joint
INDOOR UNIT
Evaporator
Cooling
Heating
: Flare coupling
Strainer
Refrigerant pipe
15.88 mm (5/8")
Refrigerant pipe
9.52 mm (3/8")
Capillary tube
Charging valve
Compressor
OUTDOOR UNIT
Condenser
INDOOR UNIT
Evaporator
Models : ASY30TBA-W / AOY30TMAL
ASG30TBA-W / AOG30TMAL
Models : ASY24EBA3W / AOY24EPA3L
ASG24EBA3W / AOG24EPA3L
2003.05.14
