– 3 –
2003.05.14

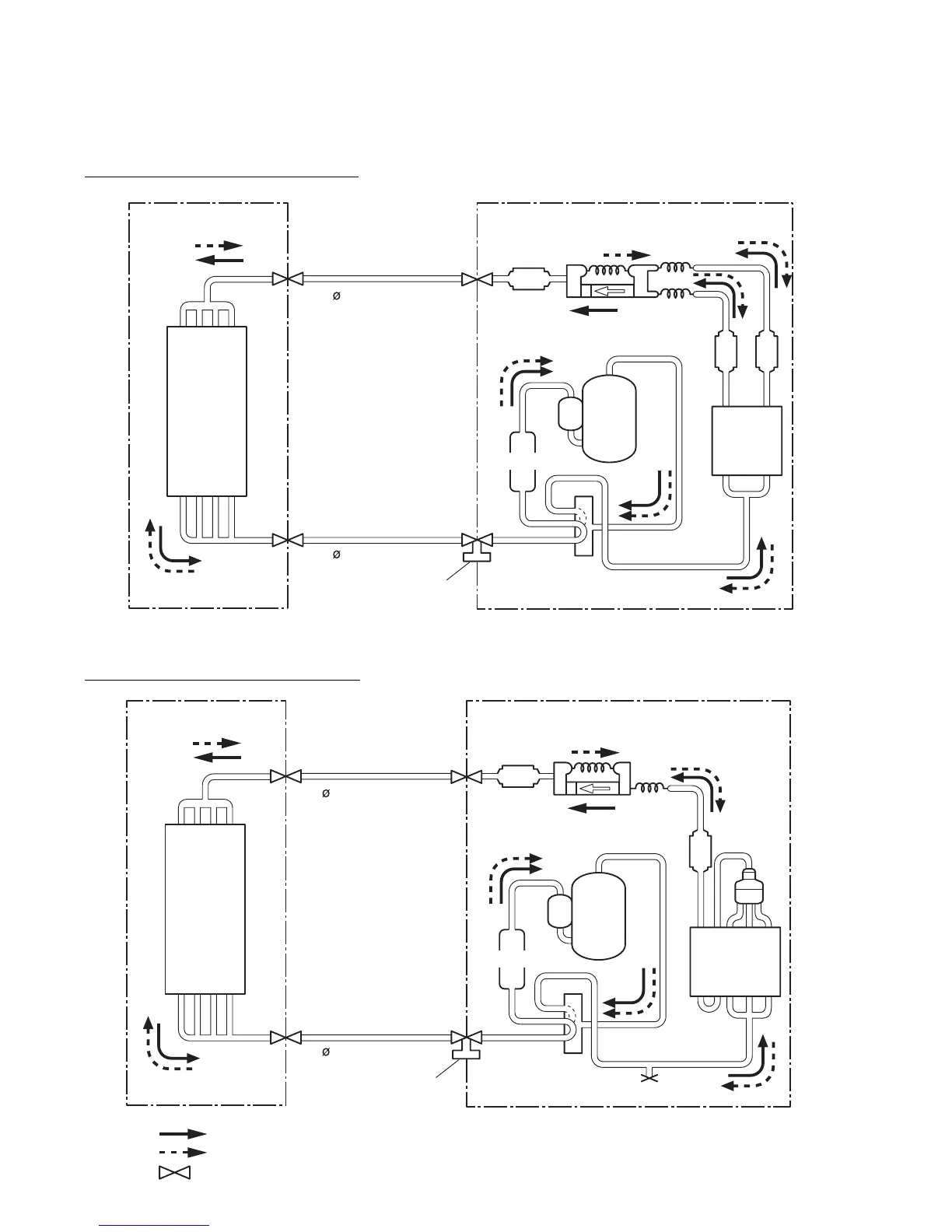

REFRIGERANT SYSTEM DIAGRAM
Models : ASY18TBA-W / AOY18TNAL
ASG18TBA-W / AOG18TNAL
Models : ASY24TBA-W / AOY24TMAL
ASG24TBA-W / AOG24TMAL
Evaporator
Distributor
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Cooling
Heating
: Flare coupling
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Accumulator
Evaporator
Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
INDOOR UNIT
Strainer
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Accumulator
