En-3
performance of the product.
*2) Indicator lamps light in the following conditions.

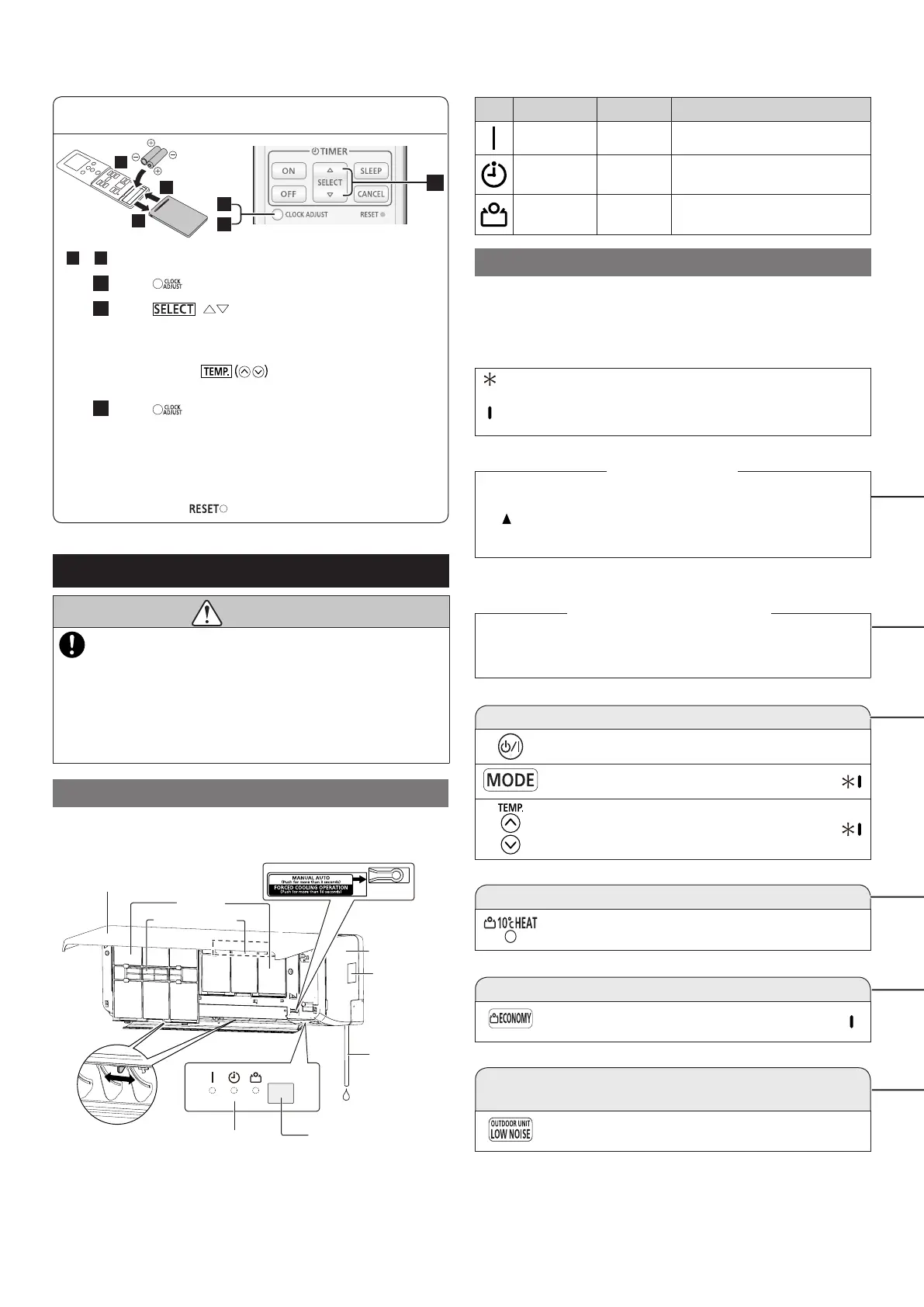

3. NAME OF PARTS
CAUTION
For appropriate signal transmission between the remote
controller and the indoor unit, keep the signal receiver
away from the following items:
- Direct sunlight or other strong lights
- Flat-panel television screen
inverter type ones, the signal may not be transmitted
properly. In such a case, consult the store of purchase.
For Basic operations ..................... Refer to page 5.
Starts or stops the air conditioner operation.
Changes the operation mode.
Adjusts the setting temperature.
For Outdoor Unit Low Noise operation
... Refer to page 6.
Activates or deactivates the Outdoor Unit Low
Noise operation.
Remote controller display
In this section, all the possible indicators are displayed for description.
In actual operation, the display is linked with the button operation, and
only shows the necessary indicators for each setting.
Signal transmitter
Aim at the signal receiver of the indoor unit properly.
• Operating range is approximately 7 m.
• [
] will appear when the signal is transmitted.
• The indoor unit will emit a beep when it receive the signal
properly. If there is no beep, press the button again.
For 10 °C Heat operation .............. Refer to page 6.
3.1. Indoor unit
Remote controller
signal receiver
direction louvers
For Manual Auto operation
and Filter indicator reset
Rating label
Drain hose
Indicator lamps
*2)
Front panel
Intake grille
Name
Color Operation or condition
Operation Green Normal operation
Timer Orange Timer operation
Economy Green Economy operation
3.2. Remote controller
When you use the optional remote controller, the appearance
For details, please refer to the operation manual of each remote
controller.
: The setting must be done while the setting screen is displayed
for each function.
: The button is controllable only when the air conditioner is
operating.
For Energy saving operation ........ Refer to page 6.
Activates or deactivates the Economy
operation.
Battery loading and remote controller preparation
(R03/LR03/AAA x 2)
4
6
5
1
2
3
~
Press
to start clock setting.
Press
to set the clock.
Press the buttons to change the clock by a minute.
Press and hold the buttons to change the clock by
* By pressing
, the time indicator can be
Press to complete the setting.
NOTES:
•
•
•
• If the remote control range noticeably shortens, replace the
batteries, and press
9387858020-02_OM.indb 3 03-Sep-21 13:52:44
