2009.01.21
13

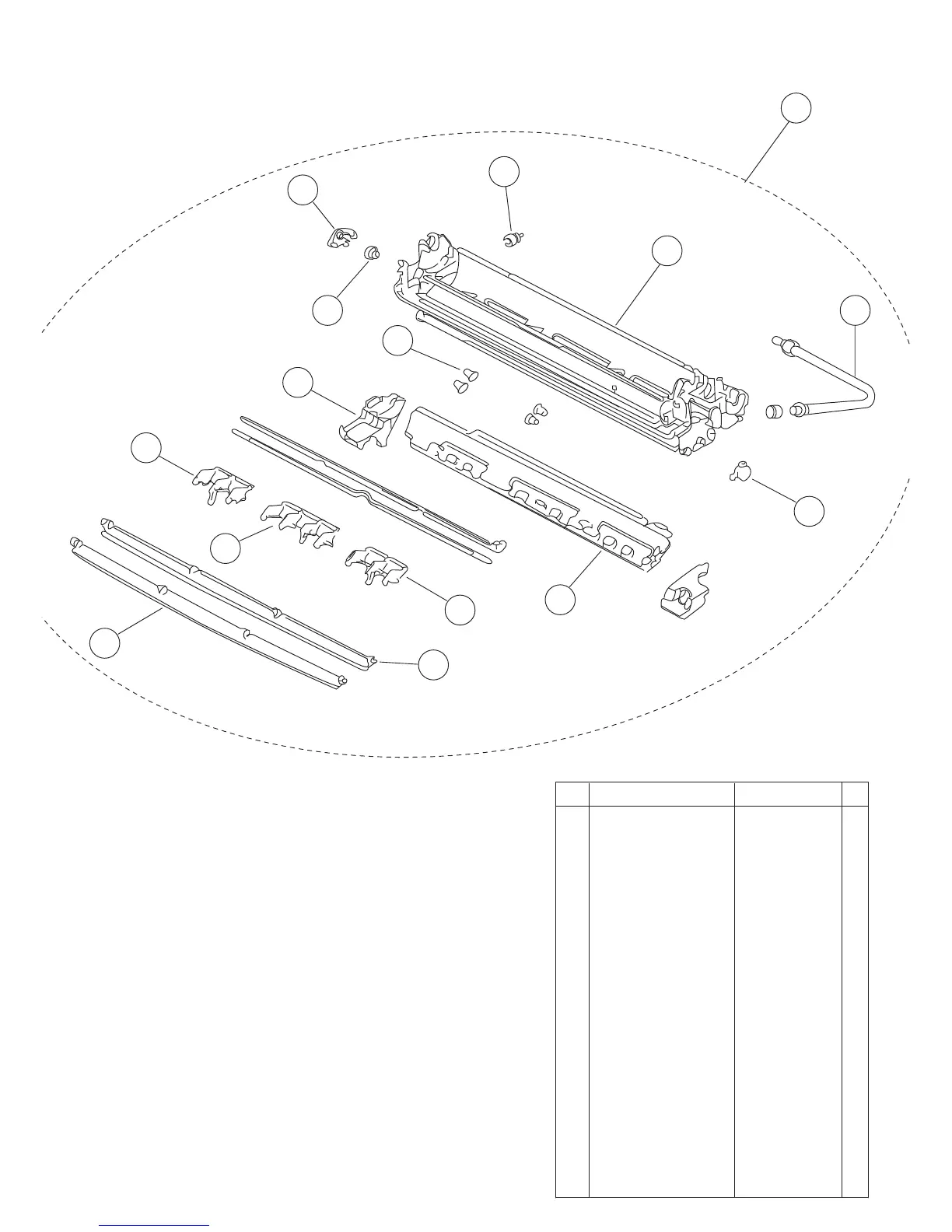

INDOOR UNIT
Casing assy
31 Louver Z 9306058043
29 Louver A 9306055028
33 Drain Hose Assy 9310357026
25 Bushing A 9303529010
30 Louver B 9306056025
32 Louver U 9306057046
22 Casing 9306052027
21 Casing Assy 9312173037
24 Gear A 9306062002
23 Gear Bracet 9306407001
34 Drain Cap 9304150008
28 Step Motor 9900139018
26 Casing Cover LR 9306064006
27 Casing Cover B 9306121006
-- Casing Cover F 9306066000
Ref. Description
Part number
25
29
32
23
24
27
28
31
30
30
33
34
21
22
26
