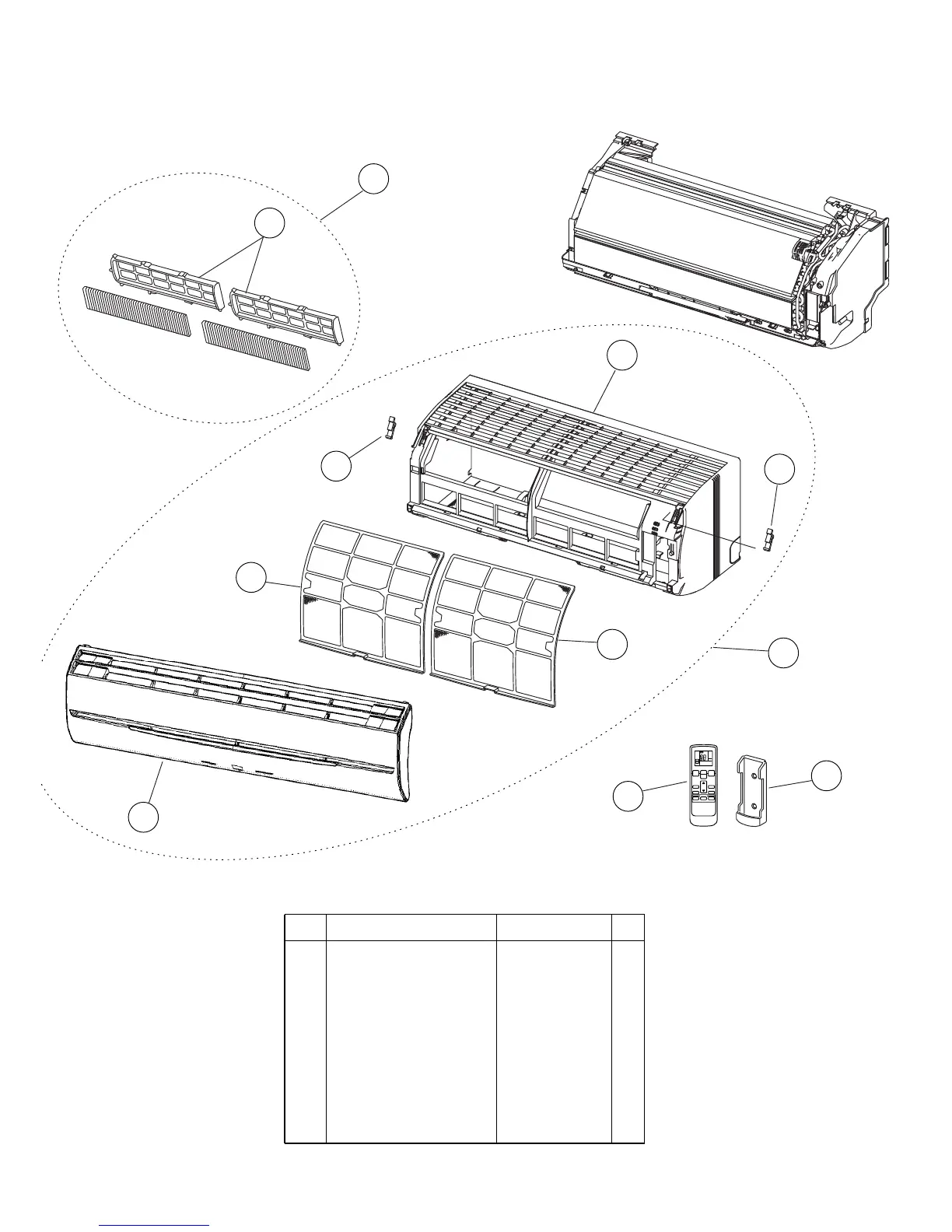

PARTS
8
9
3
1
4
2
3
7
5
5
6
INDOOR UNIT
Front panel assy
INVERTER
14
2007.04.19
3 Air Filter 9309997011
1 Front Panel Assy 9313130169
7 Electric Filter Holder 9306602017
5 Clamper (Grille) 9306755010
4 Front Panel 9309999053
2 Intake Grille Assy 9313131128
6 Air Clean Filter Assy 9312152018
8 Remote Control Unit 9315027030
9 Remote Control Holder 9305642045
Ref. Description Part number
