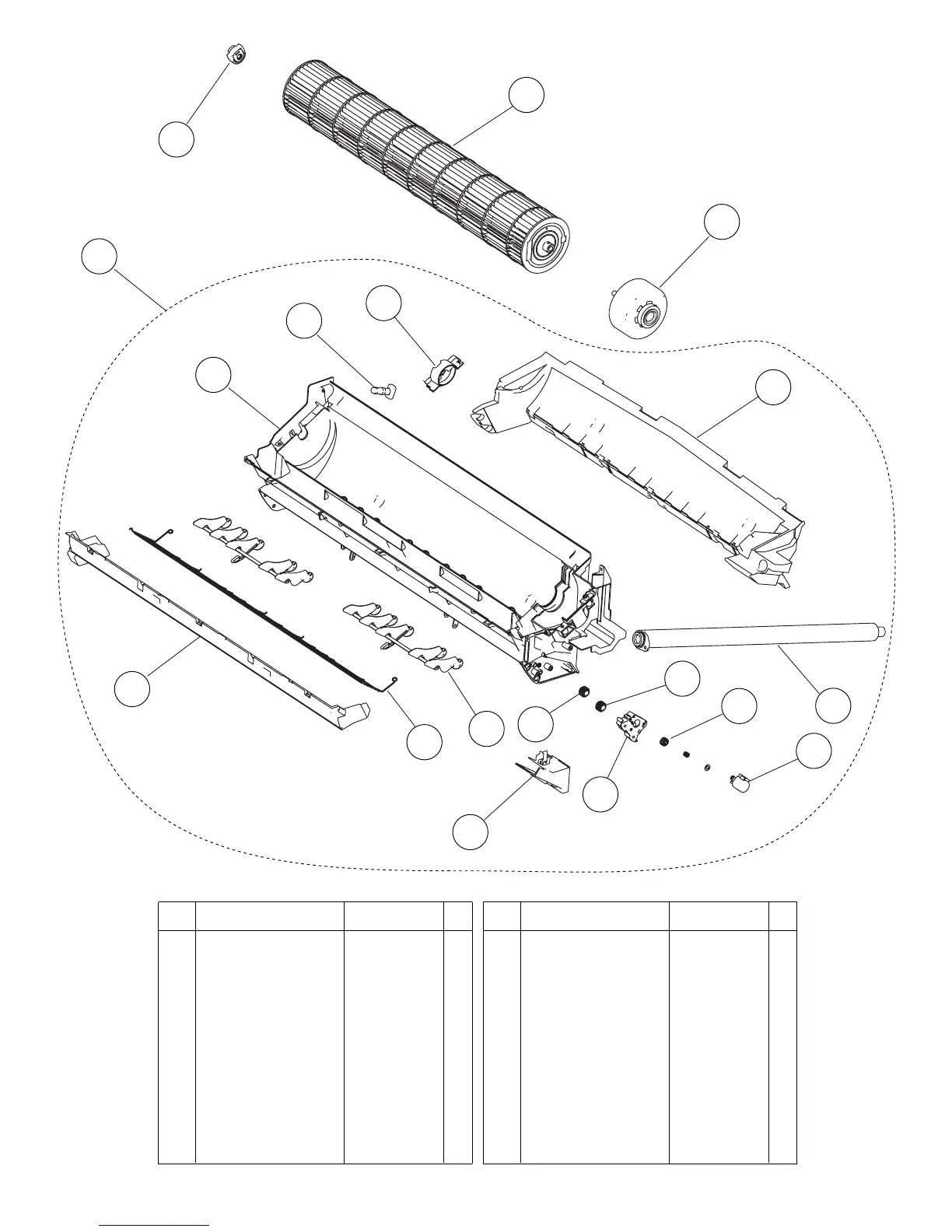

INDOOR UNIT
Casing assy
2010.09.15 14
34 Cable Guide 9316567009
35 Casing Cover B 9316569003
36 Casing Cover F 9316570009
37 R and L Louver B 9316961005
31 Casing Assy 9316892026
32 Casing 9316563001
33 Motor Cover 9316568006
38 Louver Gear Holder 9316575004
39 Louver Gear 9316574007
Ref. Description Part number
44 Fan Guard 9317182003
45 Fan Motor 9602704002
46 Crossflow Fan Assy 9316830004
47 Shaft Holder C 9306628017
40 Gear A 9309994003
41 Motor Step 9900139117
42 Drain Hose Assy 9316904002
43 Drain Cap 9316177017
Ref. Description Part number
