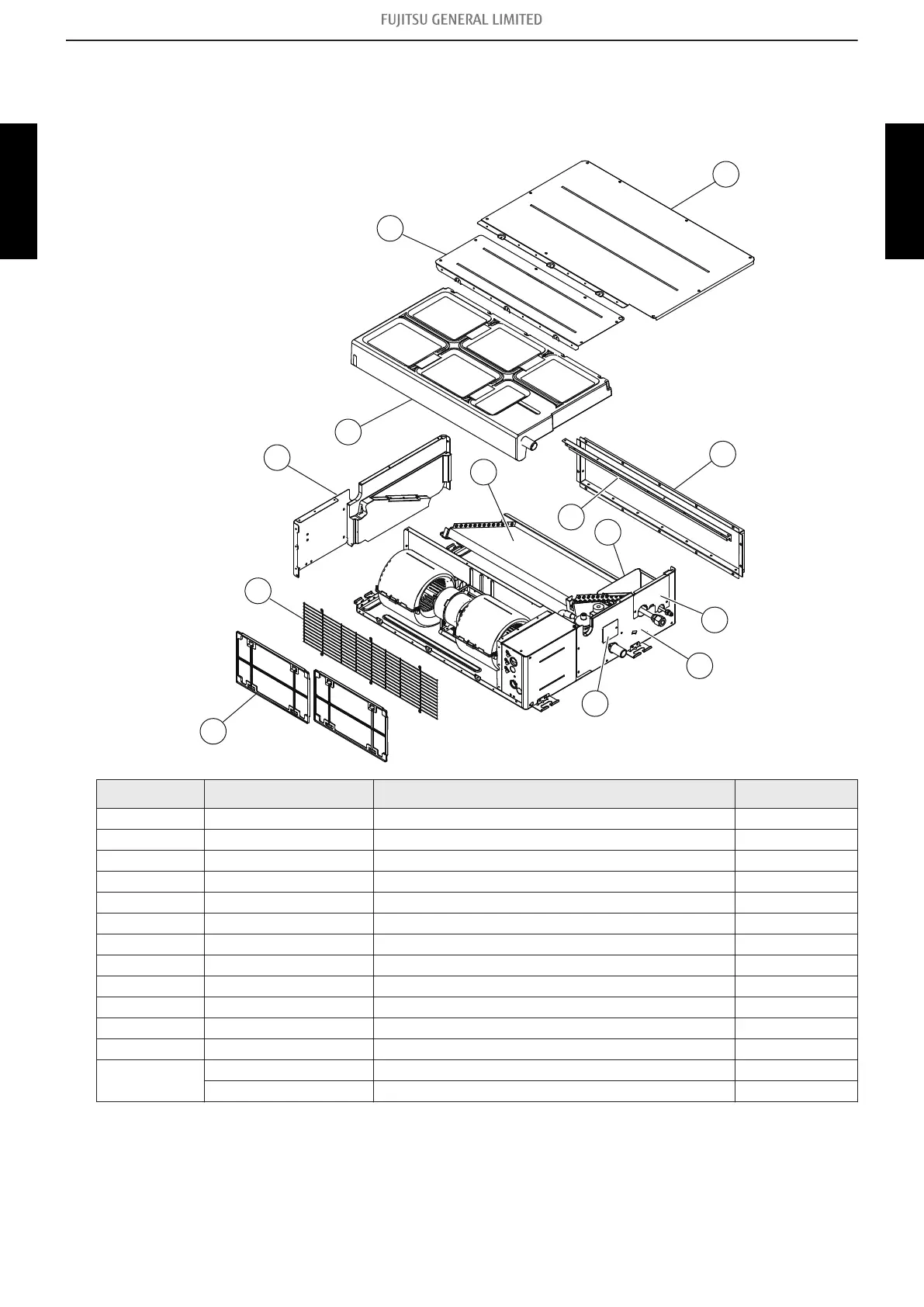

3-3. Slim duct type
¢ Models: ARXG07KLLAP, ARXG09KLLAP, ARXG12KLLAP, and
ARXG14KLLAP
Item no. Part no. Part name Service part
1 9379906012 Side panel R sub assy ♦
2 9379907019 Side panel L sub assy ♦
3 9379900003 Pipe panel sub assy ♦
4 9379915007 Panel (Window) sub assy ♦
5 9380042006 Outlet frame assy ♦
6 9380594000 Front panel (2-fan) ♦
7 9379576017 Valve cover sub assy ♦
8 9380589006 Fan guard (2-fan) ♦
9 9379574006 Air filter ♦
10 9380602019 Main panel (2-fan) ♦
11 9380597001 Cabinet panel (2-fan) ♦
12 9381209002 Drain pan sub assy ♦
13
9380682509 Evaporator total assy (For 07 model) ♦
9380682486 Evaporator total assy (For 09, 12, 14 model) ♦
3-3. Slim duct type - (02-17) - 3. Indoor unit parts list
