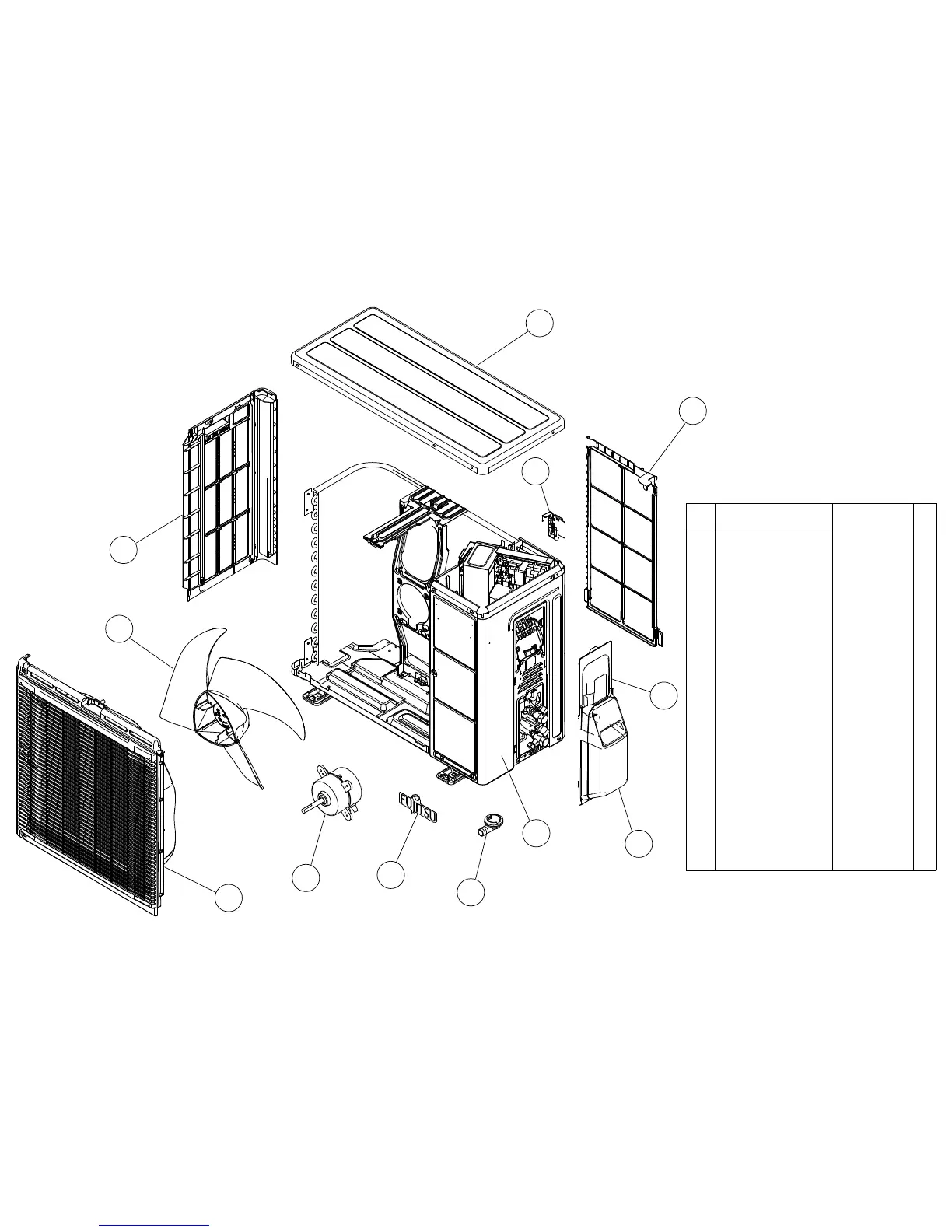

PARTS
OUTDOOR UNIT
2013.10.01 16
4 Front Panel Assy 9332965001
3 Top Panel Assy 9332977004
1 Protective Net 9332855005
2 Thermistor Holder 9332505009
5 Cabinet Left Assy 9332962000
7 Emblem 9319396019
12 Drain Assy 9332574005
11 Base Assy (07, 09) 9332888003
11 Base Assy (12) 9332888010
6 Cabinet Right Assy 9332963007
8 Switch Cover A Assy 9332964004
9 Switch Cover B 9332843002
Ref. Description Part number
11 Propeller Fan 9309909014
10 Fan Motor 9603074012
2
1
8
3
9
6
5
4
12
11
7
10
