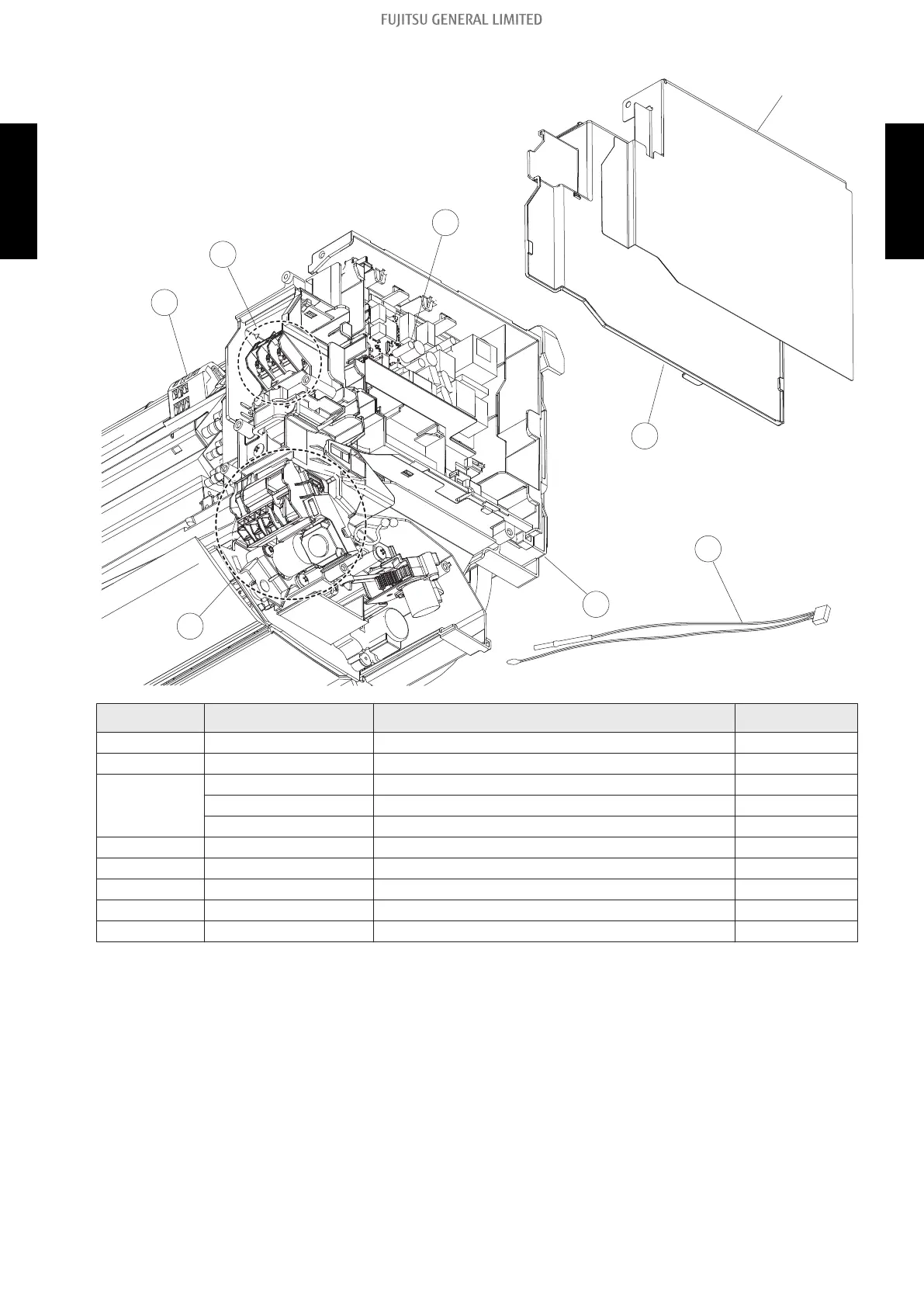

¢ Control box
a
52
51
50
55
54
53
56
Item no. Part no. Part name Service part
50 9318757019 Control cover
51 9380996002 Control box
52
9710368417 Main PCB (for 09 model)
9710368424 Main PCB (for 12 model)
9710368431 Main PCB (for 14 model)
53 9900720025 Terminal
54 9709642023 Display assy
55 9379930000 Room thermistor holder
56 9900627003 Thermistor assy
a Cover shield
2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA - (02-3) - 2. Indoor unit parts list
