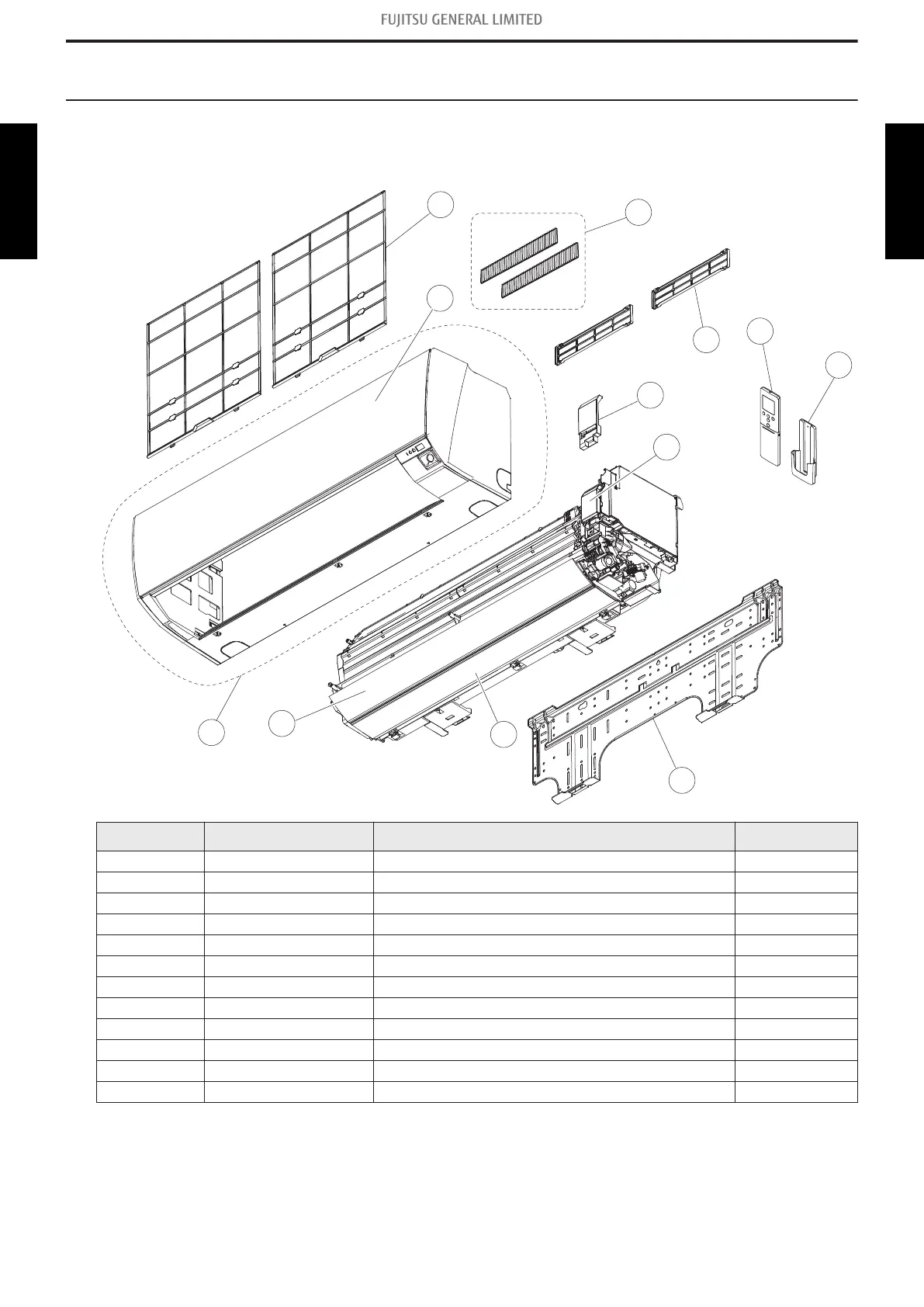

2. Indoor unit parts list

2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA

¢ Exterior parts and accessories

Item no. Part no. Part name Service part

1 9332438147 Remote controller ♦

2 9318912005 Remote controller holder ♦

3 9332911008 Electric filter holder ♦

4 9317250009 Air clean filter assy ♦

5 9380997009 Air filter ♦

6 9320459000 Front panel sub assy ♦

7 9320449001 Intake grille assy ♦

8 9318786002 Wire cover ♦

9 9318849028 Louver ♦

10 9319232096 Diffuser assy ♦

11 9318861013 Bracket panel ♦

12 9318827002 Wire shield ♦
