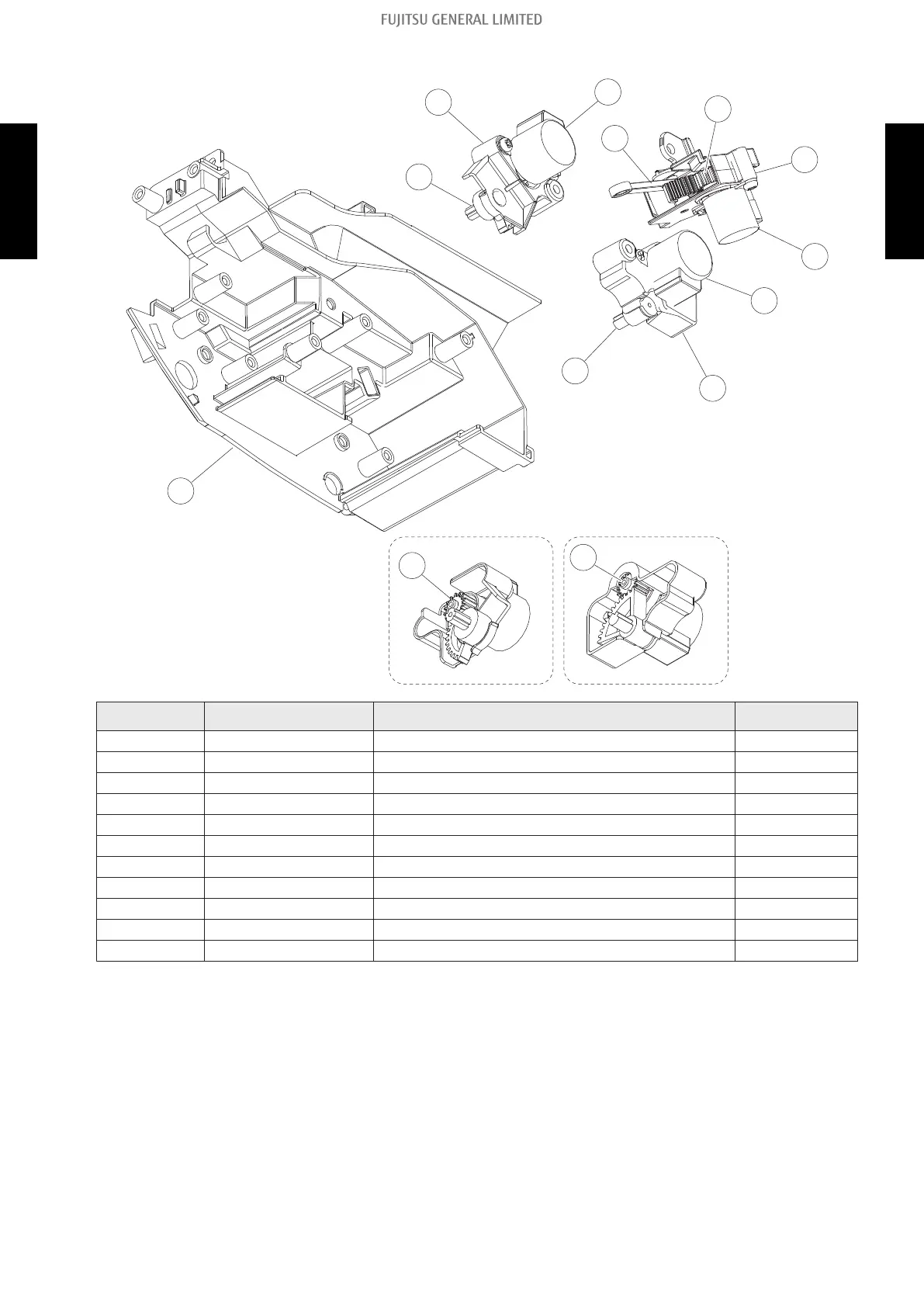

¢ Motor case assy
202
200
203
205
207
206
210
201
201
201
204
209
208
Item no. Part no. Part name Service part
200 9318746020 Motor case ♦
201 9309994003 Gear A ♦
202 9900139230 Step motor (L and R) ♦
203 9319150000 Louver link holder ♦
204 9317507004 Link A ♦
205 9900384135 Step motor (Louver) ♦
206 9318748000 Gear cover A ♦
207 9318749007 Louver gear A ♦
208 9900384142 Step motor (Diffuser) ♦
209 9318750003 Gear cover B ♦
210 9316616004 Louver gear B ♦
2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA - (02-6) - 2. Indoor unit parts list
