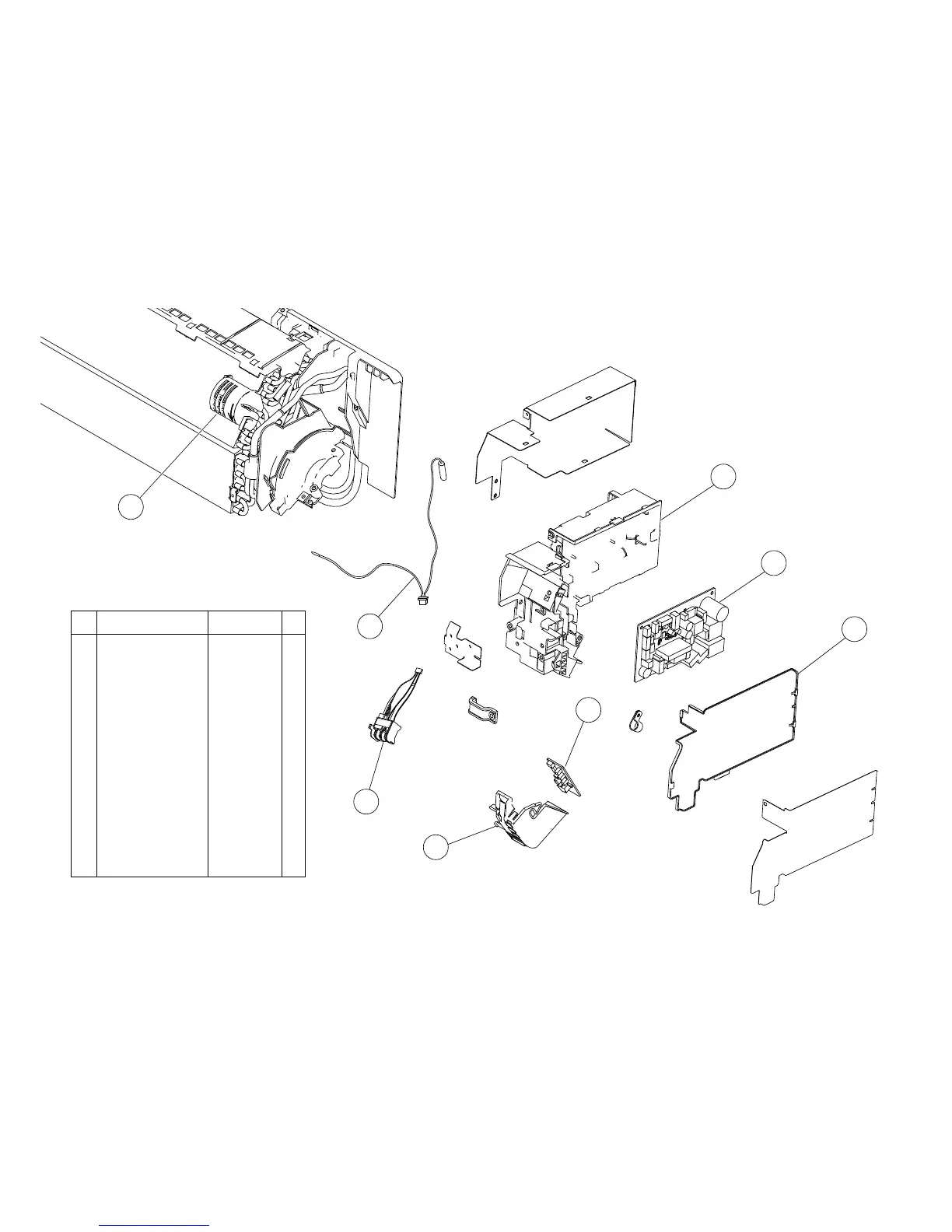

INDOOR UNIT
Control box
13
28 Indicator PCB 9707649024
27 Display Case 9316587007
24 Terminal 9900638009
23 Main PCB (ASYG09L) 9708536354
23 Main PCB (ASYG12L) 9708536361
25 Thermistor Assy 9900563004
21 Control Box 9316582002
22 Control Cover 9316583009
Ref. Description Part number
2012.12.26
26
Room Thermistor Holder
9316895003
22
24
25
21
27
28
23
26
